KH1508Ai - Aten - 1-Local/Remote Share Access 8-Port Cat 5 High Density KVM over IP Switch with Daisy-Chain Port (KH Range)

Aten: KH1508Ai - Cat 5 High Density IP KVM (8 Port)

Description:

The KH1508Ai Cat 5 High-Density KVM over IP Switch switches offers 8 computer port configurations in a 1U-high housing for convenient rack mounting. They allow local and remote operators to monitor and access the entire enterprise data center over the Internet using a web-based browser. The KH1508Ai features RJ-45 connectors and Cat 5e/6 cable to link to the computers and supports multiplatform. This ensures that high quality signals can travel over long distance - up to 50m* without the need for KVM extenders. Utilizing KVM Adapter Cables for the final linkup, the KH1508Ai permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.

Features:

• Superior Video Quality – supports input video resolutions up to 1920 x 1200 @ 60 Hz* up to 30 meters, 1600 x 1200 @ 60 Hz up to 40 meters, and 1280 x 1024 @ 75 Hz up to 50 meters

• Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser

• Panel Array Mode™

See 'further information' for the full list of features

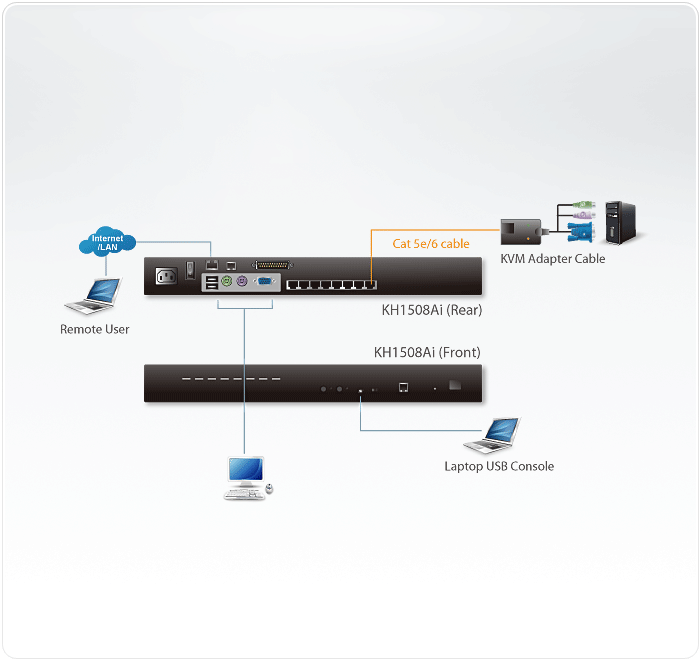

SETUP:

Specification:

Package Contents

1x KH1508Ai Cat 5 High-Density KVM over IP Switch
1x Firmware Upgrade Cable
1x Laptop USB Console Cable
1x Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions

Cat 5 High-Density KVM over IP Switch

1 local/remote user access

Computer Connections

Direct - 8
Maximum 128 (via Daisy-chain)
Port Selection OSD; Hotkey; Pushbutton

Connectors

Console Ports 2 x USB Type-A Female (White)
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
1 x HDB-15 Female (Blue)
KVM Ports 8 x RJ-45 Female
Daisy Chain Ports 1 x DB-25 Male
Power 1 x IEC 60320/C14
LAN Ports 1 x RJ-45 Female
Firmware Upgrade 1 x RJ-11 Female
PON 1 X RJ-45 Female
Laptop USB Console (LUC) Port 1 x USB Mini-B Female

Switches

Reset 1 x Semi-recessed Pushbutton
Power 1 x Rocker
Port Selection 8 x Pushbutton

LEDs

Online 8 (Green)
Selected 8 (Orange)
Power 1 (Blue)
Station ID 1 x 2-digit 7-segment (Orange)
Link 1 (Orange)
10/100/1000 Mbps 10/100 Mbps (Orange / Green)
Emulation
Keyboard / Mouse PS/2; USB

Video

Local 1600 x 1200 @ 60Hz
Remote 1600 x 1200 @ 60Hz
Scan Interval 1–255 secs
Maximum Input Power Rating N100–240 VAC; 50/60 Hz; 1A
Power Consumption 120V/12.5W; 230V/12.7W

Environmental

Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0–80% RH; Non-condensing

Physical Properties

Housing - Metal
Weight 2.76 kg ( 6.08 lb )
Dimensions (L x W x H) - B43.72 x 15.58 x 4.40 cm
(17.21 x 6.13 x 1.73 in.)

Note - For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
