Unfortunately we do not stock the Rextron RX-VSA12 2-port video splitter 350Mhz High grade (1x Computer to 2 Monitors ) S-VGA Monitor splitter ( RX-VSA12) Powered by UK mains adaptor supplied currently.

Please contact us to find out if this is merely a temporary situation. If the product has gone out of production we should be able to suggest a suitable alternative product.

Rextron RX-VSA12 2-port video splitter 350Mhz High grade (1x Computer to 2 Monitors ) S-VGA Monitor splitter ( RX-VSA12) Powered by UK mains adaptor supplied

Rextron RX-VSA12 2-port video splitter

Description:

The VSA 350Mhz range video splitters are designed for desktop use and supplied in a durable, compact metal housing. These products are independent of software and, other than cables and monitors, no additional hardware is required. VGA Monitor splitter & SVGA Monitor splitter. Only the higher quality splitters duplicate and boost the input signal to the best performance to 2 VGA, SVGA or multi-sync monitors with a signal rate of 350MHz., Using lower performance will not produce such goods results. Application These video splitters can be used for:

Monitor testing & burn-in

Business meetings

Demonstrations

Trade shows

Exhibits

This product always requires a Video feed cable from the Computer Video Card "source" to the Video Input of the Splitter. See compatible product Part No. KVMC-SVGAMF-02

Features:

Compatible for use with VGA, SVGA & multi-sync monitors

Duplicate one signal input to multiple outputs

Ability to be cascaded , increasing the total number of video outputs

Effective transmission distance: 65m/210ft

Automatic power-save when signal is lost

Clear images

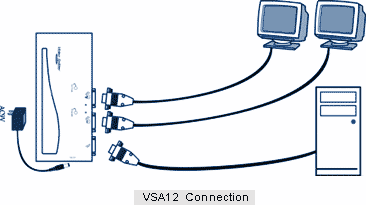

Rextron RX-VSA12 2-port video splitter set up

Specification:

Number of outputs: 2

Signal bandwidth: 350MHz

Max Resolution upto 2048x 1536

Signal type: VGA, SVGA or multi-sync

Cable length: 65m/210ft max (with UL-2919 rated VGA cables)

Input connector: 1 x HD15 male

Ouput connector: 2/4/8 x HD15 female

Enclosure: metal

Weight: 400/428/720g
