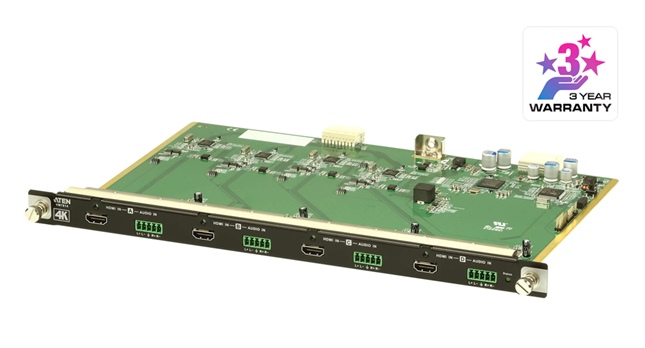

VM7814 - Aten - 4-Port 4K HDMI Input Board (Compatible with 1600A / 3200) *NEW*
Description:
The VM7814 is a 4K HDMI input board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI sources to 4 displays. In addition to the HDMI interface that carries digital A/V signals, the VM7814 is equipped with 4 stereo audio input ports that allow stereo audio embedding. The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.
Features:
• 4-port 4K HDMI Input Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
• Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080); 4K2K@60 (4:2:0)
• Audio-enabled, stereo audio can be embedded
• EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
• HDMI (3D, Deep Color); HDCP 2.2 Compatible
• Cable Quality Tester – examines the HDMI cable quality
• Consumer Electronics Control (CEC) support
Specification:
Package Contents
1x VM7814 4K HDMI Input Board
4x Terminal Blocks
1x User Instructions
Video Input
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance Up to 5m
Video
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolution 4096x2160/3840x2160@60Hz (4:2:0);
4096x2160/3840x2160@30Hz (4:4:4)
Audio
Input 4 x Captive Screw Connector, 5 Pole (Green)
*Audio signal type: stereo, balanced/unbalanced.
Power Consumption 4.45W:21BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.56 kg ( 1.23 lb )
Dimensions (L x W x H) 35.20 x 23.80 x 2.33 cm
(13.86 x 9.37 x 0.92 in.)
Carton Lot 2 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format
