KE6948AT - ATEN - Rugged DVI-I Dual-Display KVM over IP Transmitter *NEW* - COMING SOON

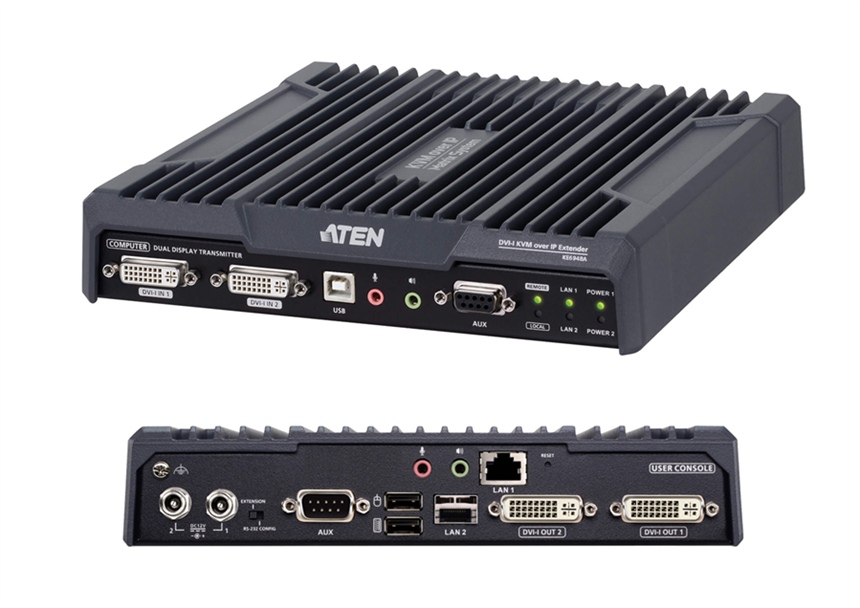

KE6948AT - DVI-I Dual-Display KVM over IP Transmitter

Description:

The ATEN KE6948AT is an industrial-grade KVM over IP transmitter certified to IEC 60945 and IACS E10 standards, specifically engineered to meet DNV-GL requirements for mission-critical Maritime control rooms and data centers. This advanced solution enables secure, zero-latency remote access to computer systems over IP networks.

Features:

An industrial-grade, marine-certified KVM over IP extender delivering secure, zero-latency remote access for mission-critical maritime control rooms and data centers.


• Designed to meet DNV, IEC 60945, IACS E10 certification compliance
• Industrial Durability – supports -15°C to 55°C with power and network failover
• Lossless zero-latency 1920x1200 @ 60Hz video features ultra-fast 0.3s switching
• Secure independent streaming for video, audio, USB, and serial signals uses AES 128-bit encryption

Specification:

Connectors

Console Ports 2 x USB Type A Female (White)
2 x DVI-I Female (White)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Male (Black)
KVM Ports 1 x USB Type B Female (White)
2 x DVI-I Female (White)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Female (Black)
Power 2 x Lockable DC Jack (Black)
LAN Ports 1 x RJ-45 (Black)
1 x SFP Slot
Switches
Reset 1 x Semi-recessed Pushbutton
Mode Selection 1 x Slide Switch (Auto, RS-232 Config/Access Control, Local)
LEDs
10/100/1000 Mbps 1 x LED for RJ45 (10/100: Off, 1000: Green)
1 x LED for SFP slot (10/100: Off, 1000: Green)
Power 2 (Green)
Local 1 (Green)
Remote 1 (Green)
Emulation
Keyboard / Mouse USB
Power Consumption DC12V:15.88W:96BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Video Resolution Up to 1920 x 1200 @ 60Hz
Latency < 5ms
Environmental
Operating Temperature -15–55°C
Storage Temperature -20–60°C
Humidity 0–95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.40 kg ( 5.29 lb )
Dimensions (L x W x H) 21.47 x 21.11 x 4.18 cm
(8.45 x 8.31 x 1.65 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
