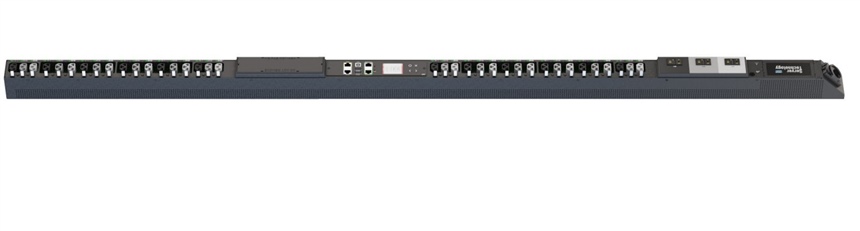

C4G36RA-ENBE2FE2 ServerTech PRO4X SWITCHED POPS 3.6kW (24) Cx & (12) C13 HDOT OUTLETS Rack PDU Colour: BLACK
C4G36RA-ENBE2FE2
Description:
Server Technology PRO4X SWITCHED POPS PDU 16 Amp input 3.6kW (24) Cx & (12) C13 HDOT OUTLETS Rack PDU. Standard colour Black
Features:
Hdot cx outlets r4
HDOT Cx Outlets
Cx is the future-ready UL tested hybrid of a C13 and C19 outlet accommodating both C14 and C20 plugs.
45 degree angled infeed r4
45 Degree Angled Infeed
The angled infeed improves accessibility, provides infeed strain relief, and its bend radius is suitable with 60A rated cords.
Network monitoring r4
Network Monitoring
Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
Multi primary linking r4
Multi-Unit Linking & Cascading
Daisy chain up to 16 PDUs from a primary PDU using a USB or Ethernet connection through a single IP address.
Multi colour lcd r4
Multi-Colour LCD
An easy-to-read LCD provides a local indication of power usage, alerts, and alarms.
Hot swappable controller r4
Hot Swappable Controller
The Controller is the PDU's center of intelligence and houses computing, display, and connectivity ports.
Power quality measurements r4
Power Quality Measurements
Monitor and alert on the power being fed to the PDU for harmonics, voltage dips and swells, crest factor, and more at the outlet or load.
RGB led outlet indicators r4
RGB LED Outlet Indicators
RGB LEDs identify an outlet's on/off state, if it's above/below a certain power threshold, or if it's in suspect of a power measurement irregularity.
Waveform capture r4
Waveform Capture
Capture voltage and current waveforms automatically or upon demand.
Environmental monitoring r4
Environmental Monitoring
Support up to 12 daisy chained DX2-series SmartSensors, each with the ability to send SNMP-based alerts and email notifications.
Pips per inlet power sensing sti r4
Per-Inlet Power Sensing
PIPSŪ (Per Inlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, & Energy per inlet.
Pops per outlet power sensing sti r4
Per-Outlet Power Sensing
POPSŪ (Per Outlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, and Energy per outlet.
Branch circuit protection r4
Branch Circuit Protection
This PDU meets the UL and IEC 62368-1 requirement for branch circuit protection through UL 489 rated magnetic-hydraulic circuit breakers or UL 248 fuses.
Outlet control r4
Outlet Control
On Switched PDUs, cycle power to individual outlets or groups of outlets to reboot servers, or power off unused receptacles.
Specification:
Input Power Capacity (kW): 3.6
Input Plug Type: IEC 230V/16A 2P+PE 6Hr
Input Current (A): 16
Input Current Rated (A): 16
Input Nominal Voltage (V): 230
Input Phase: 1-Phase (L-N)
Input Cord Location: Bottom/Angled
Alternating Phase Outlets: true
Outlet Form Factor: HDOT Cx RamLock
Total Outlets: 36
IEC C13 Count: 12
Cx Count: 24
FAMILY SPECIFICATIONS:
Branch Monitoring:Current (A)
Branch Overcurrent Protection:10 kAIC
Branch Overcurrent Protection Type:Circuit Breaker: 2-pole
Dual Input:No
High Retention Outlets:Yes
Input Current Display:Auto-Orient
Input Monitoring:PIPS
Locking Outlets:Yes
Max Operating Temperature:60 °C
Mounting:0U Vertical
Outlet Monitoring:POPS
PDU Platform:PRO4X
Power Pivot Input:No
Product Height (inch):70.0
Product Height (mm):1778
Product Max Depth (inch):3.07
Product Max Depth (mm):78
Product Nominal Depth (inch):2.5
Product Nominal Depth (mm):64
Product Width (inch):2.2
Product Width (mm):56
