CS64U - Aten - 4 Port USB VGA Cable KVM Switch (USB computers from USB console) with Audio (1.8m) low cost 4 port KVM switch
CS64U - (PMCE417)
Description:
Aten/ CS64U is a 4-Port USB KVM Switch which has a handy design integrating with 6 feet of cables and built-in USB. It can control 4 servers via a single console. USB KVM Switch (Control 4 x USB computers from 1 x USB console) Our total USB solution. Link four USB computers to one USB console for a complete USB system compatible with all operating platforms: PC, Linux, Mac and Sun NOT RECOMMENDED FOR USE WITH WIDE SCREEN MONITORS. by Aten UK technical. If using wide screen call us or see the newer CS1734B
Features:
One USB console controls four USB computers
Compact design, built-in 1.8 m cables
Hotkey selection for OS and keyboard language
Computer Selection via hotkey
Multiplatform support - Windows, Linux, Mac, Sun
Video DynaSync - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral sharing
Supports multifunction and wireless keyboards and mice NEW!
All-in-one design
With speaker support
Superior video quality up to 2048 x 1536; DDC2B
Auto Scan function to monitor computer operation
Non-powered
Sun/Mac keyboard support and emulation*
Firmware upgradable NEW!
* 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers

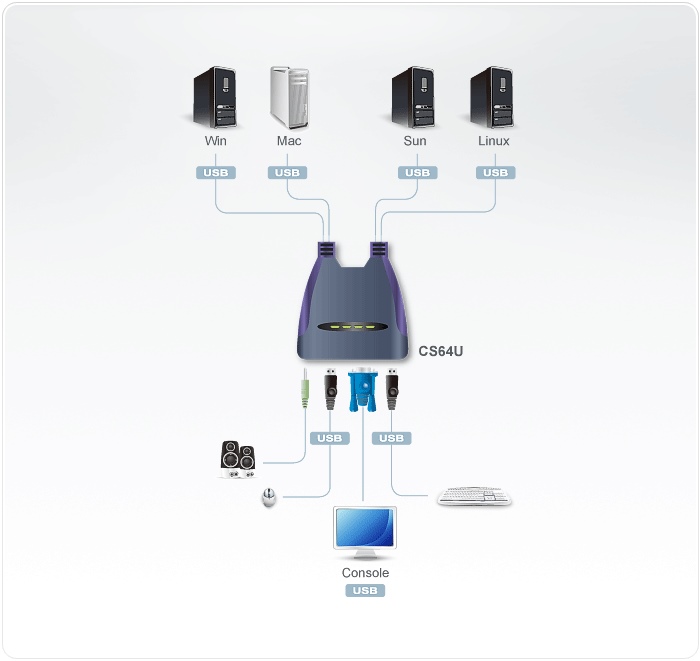

CS64U - DIAGRAM pmce0124
Specification:
Package Contents
1x 4-Port USB KVM Switch with Attached Cables
1x User Instructions
4-Port USB KVM Switch
Computer Connections 4
Port Selection Hotkey
Connectors
Console Ports 1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
KVM Ports 4 x HDB-15 Male (Blue)
4 x USB Type A Male
4 x 3.5mm Audio Jack Male (Green)
LEDs
Selected 4 (Green)
Cable Length
Computer 1.8 m
Emulation
Keyboard / Mouse USB
Video 2048 x 1536 @ 60Hz; DDC2B
Scan Interval 1-99 seconds
Environmental
Operating Temperature 0 50°C
Storage Temperature -20 60°C
Humidity 0 80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.73 kg ( 1.61 lb )
Dimensions (L x W x H) 9.41 x 9.72 x 2.60 cm (3.7 x 3.83 x 1.02 in.)
Note - For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
