FJ-NC14004-B402/UK Fujitsu
FD-1000AT Console Drawer (15" LCD 1024 x 768) *SPECIAL OFFER*
Fujitsu FD1000 KVM Drawer. HEAVY DUTY ( LIMITED STOCK )

Fujitsu Console Drawer (15" LCD 1024 x 768)

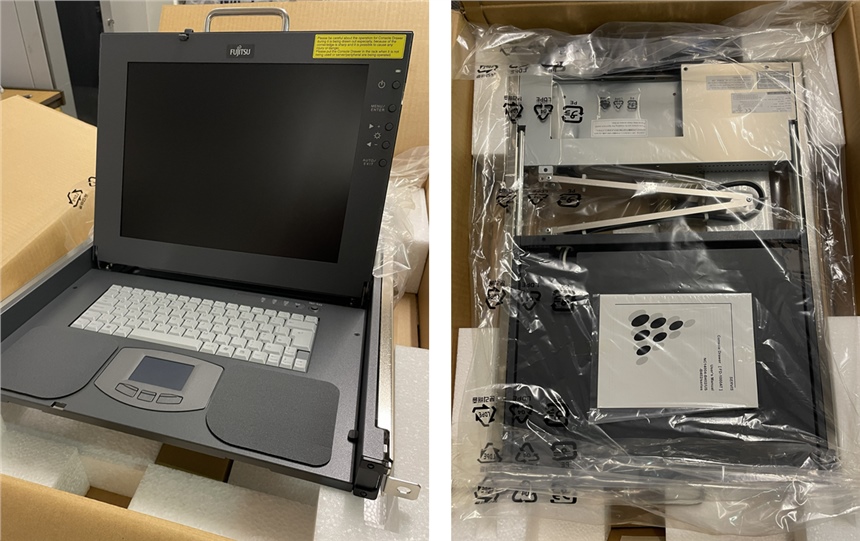

Front View this product is available as just screen Keyboard & touch pad or with built in 8 or 16 port switch at rear.

Description:

LIMITED STOCK AVAILABLE CLEARANCE Fujitsu FJ-NC14004-B402/UK FD-1000AT Console Drawer (15" LCD 1024 x 768) All stock new RoHS Compliant versions. High quality Fujitsu LCD-TFT Screen. This product is the ideal solution is you need to control older Sun servers with the 8PIN MCC Keyboard connector when used in conjuction with the compatible 8MCC KVM Switch and cables. LARGEST EUROPEAN FUJITSU KVM DRAWER STOCKIST. Fujitsu FD1000 Range rack mount KVM Drawer. As server density increases in today's server racks, it becomes necessary to reduce the size of any KVM solution whilst at the same time increasing the functionality. SERVIS DRAWER makes this possible by making either a 8 or 16 port KVM option fit together with a high resolution TFT LCD and keyboard and touch pad for simple local operation. PLEASE NOTE: THIS PRODUCT REQUIRES 19" SLIDING RAIL KIT ADDITIONAL PART. Not included. SEE OPTIONS IN "compatible products" For standard 19” rack cabinets see select part No. NC14003-T591 Fujitsu NC14003-T591 FD-1000AT Console Drawer Guide Rails (Standard Inside Mounting) ALSO AVAILABLE IN OTHER LANGUAGE TYPE KEYBOARD TYPES

Features:

Flat modular construction for 19" rack mounting.

High Quality Fujitsu 15" TFT LCD supporting resolutions up to 1024 x 768.

Optional Sun/IA PS/2 or USB support allowing control of IA SUN Blade/Fire series Servers. (Cable configuration only via the SERVISCableSystem)

Built in On Screen Display (OSD) allows Server naming and selection (When used with the optional KVM products).

Collapses to only 43mm high for 1U implementations.

Side rails allow easy installation and configuration.

Short pull design with front opening screen for added protection from accidental damage.

Fujitsu STD Rack console setup

Specification:

1 U Sliding Rack mount Drawer
(15" LCD 1024 x 768) TFT Screen with Keyboard and Touch Pad Mouse.

Output Lead to PS/2 Keyboard Video Mouse Computer ports

PLEASE NOTE: THIS PRODUCT REQUIRES 19" SLIDING RAIL KIT ADDITIONAL PART. SEE OPTIONS IN
"compatible products"
For standard 19” rack cabinets see select part No. NC14003-T591
Fujitsu NC14004-B402 FD-1000AT Console Drawer Guide Rails (Standard Inside Mounting)



FUNCTIONAL SPECIFICATIONS

LCD
Size 15" TFT colour
Resolution 640 x 480 / 800 x 600 / 1024 x 768
Active Area 304.1 x 228.1 mm
Pixel Pitch 0.297 x 0.297 mm
Compatability VESA DPMS and DDC 2B
Contrast Ratio 250 typ. (200 min.)
Viewing Angle left 75, right 75, upper 45, lower 75 deg
Scan Frequencies (Vert) 50 ~ 75 Hz
Scan Frequencies (V/H) 31.5 ~ 60 KHz
Panel colour 16.7 million display colours
Language Selection English,German,Italian,French, Spanish
Life 35,000 (25,000 min) (50%
Luminance 220 CD/m2
Luminance 220 CD/m2
Certification CE,UL,TUV,FCC Class B, VCCI Class B


PHYSICAL SPECIFICATIONS

Storage Temperature -20 ~ 60 deg C
Operating Temperature 0 ~ 40 deg C
Dimensions (HxWxD) 42 x 485 x 642 (Slide Rail Closed) 42 x 485 x 1117 (Extended) mm

New RoHS Compliant version.
