CS1732B - ATEN - 2 Port Desktop KVMP VGASwitch with Audio Support PS/2 or USB Multiplatform with cables (Metal Housing) *SPECIAL OFFER PRICE*

AKCS1732B - 2 Port Version with cables

Description:

*SPECIAL OFFER PRICE* CS1732B ATEN 2 Port Desk Top USB KVMP Switch, with Metal Housing and Audio Support, with PS/2 or USB Multiplatform supplied with KVM cables. The improved model CS1732B ( Keyboard, Video, Mouse and Peripheral ) Series intergrates a fully functing USB 2.0 hub into the KVM Switch thereby centralizing control of PC and Peripheral functions from a single console. The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are three methods to obtain instant access to any computer in your installation: Manual, Hotkey, and OSD.

Features:

- 2-port KVM switch with USB 2.0 support and 2.1 surround sound audio

- One console controls two computers and two additional USB devices

- 2-port USB 2.0 hub built in

- Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations

- Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems

- Console audio ports on front panel for easy access – ideal for IP phone users

- Supports both USB and PS/2 keyboards and mice – configurations available with the included USB-to-PS/2 converter: USB keyboard and mouse; PS/2 keyboard and mouse; PS/2 keyboard / USB mouse

- Independent switching of KVM, USB, and audio focus

- Superior video quality; 2048 x 1536; DDC2B

- Supports widescreen resolutions

- Computer selection via front panel pushbuttons, OSD (On Screen Display), and hotkeys

- Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, and older Sun

- Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice

- Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution

- Complete keyboard emulation for error-free booting

- Sun/Mac keyboard support and emulation*

- Auto Scan Mode for monitoring all computers

- LED Display for easy status monitoring

- Easy installation – no software required

- Firmware upgradeable

*1.PC keyboard combinations emulate Sun/Mac keyboards
2.Sun/Mac keyboards only work with their own computers

PLEASE NOTE USB KVM SWITCHES MADE TO WORK WITH STANDARD USB KEYBOARD AND MOUSE FUNCTIONS ONLY. SPECIAL MULTIFUCTION KEYBOARDS OR WIRELESS DEVICES MAY HAVE COMMUNICATIONS WHICH CANNOT PASS THROUGH A KVM SWITCH AND THEREFORE THESE CANNOT BE SUPPORTED AND ARE USED ARE CUSTOMERS OWN RISK

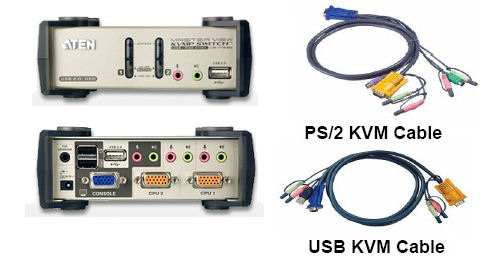

DIAGRAM (CS1732B)

Specification:

Computer Connections 2

Port Selection OSD; Hotkey; Pushbutton
Connectors Console Port Keyboard 1 x USB Type A Female (Black)
Video: 1 x HDB-15 Female (Blue)
Mouse: 1 x USB Type A Female (Black)
Speaker: 2 x Mini Stereo Jack Female (Green)
Mic. 2 x Mini Stereo Jack Female (Pink)

KVM Port Keyboard 2 x SPHD-15 Female (Yellow)
' Video, Mouse, Speaker '

2 x Mini Stereo Jack Female (Green)
Mic. 2 x Mini Stereo Jack Female (Pink)
Firmware upgrade 1 x 4-conductor 3.5mm Jack (Black)

Power 1 x DC Jack
USB Hub 2 x USB Type A Female (White)
Switches Selected 2 x Pushbutton
LEDs On Line/ Selected 2 (Orange)
USB Link 2 (Green)

Emulation

Keyboard / Mouse PS/2; USB
Video 2048 x 1536 @ 60Hz; DDC2B
Scan Interval 1-255 seconds (Default: 5 sec.)

Power Consumption DC5.3V, 3.1W

Environmental

Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing

Physical Properties

Housing Metal
Weight 0.55 kg
Dimensions ( L x W x H ) 14.00 x 8.70 x 5.50 cm

Pack contents:

1x 2-Port USB 2.0 KVMP™ Switch
2x Custom USB KVM Cable Sets
1x USB-to-PS/2 Converter
2x OSD/Hotkey Stickers
1x Firmware Upgrade Cable
1x Power Adapter
1x User Manual
1x Quick Start Guide

* The specification and pictures are subject to change without notice.

* All trademarks and logos are the properties of their respective holders.
