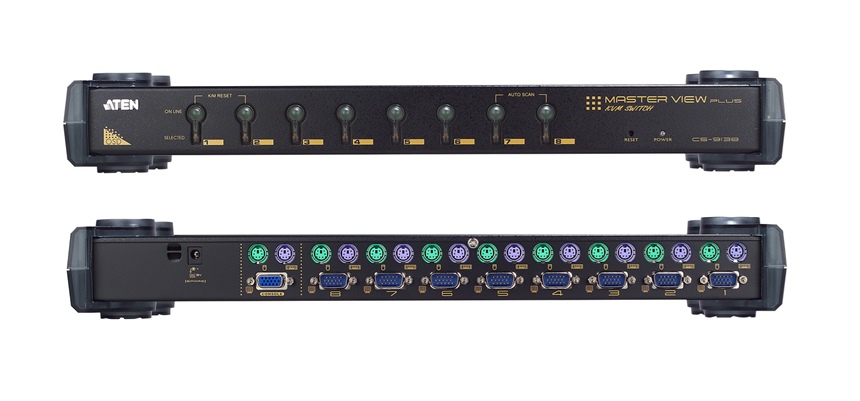

CS9138 - ATEN - 8 Port 1 User PS/2 VGA KVM Switch Cascadable, Rack Mountable. Predecessor to CS1308, Limited Stock * KVM SPECIAL OFFER*

CS1938 - Special offer price (Colour may vary to Image Shown) Black or Silver

Description:

CS9138 is a high-efficiency KVM Switch which provides the most efficient solution to fulfill the management needs of server networks. It is a KVM Switch with 8 ports and can control 8 computers. It allows connections in 3 tiers by cascade. With 73 sets of CS9138, users can connect up to 512 servers.

Features:

One PS/2 console controls 8 computers.
Cascadable up to 3 levels - provides up to 512 computers.
Computer selection via front panel pushbuttons, hotkeys or On Screen Display (OSD).
Keyboard and mouse emulation for error free booting.
Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse.
OSD automatically adjusts to resolution changes.
Auto Scan function to monitor computer operation.
Superior video quality: up to 1920 x 1440; DDC2B.
Available in silver and black.
Special design for easy stacking.
Rack mountable in 19" (1U) system rack.
OS Support:Windows 2000, Windows XP, Windows Vista, LINUX and FreeBSD
For more information about KVMs which can connect to

CS9138 Diagram

Specification:

Package Contents:

1x 8-Port PS/2 KVM Switch
1x Power Adapter
1x Rack Mount Kit
1x User Manual
1x Quick Start Guide


Computer Connections Direct 8
Max. 512 (via Cascade)
Port Selection Hotkey, Pushbutton, OSD
Connectors Console Ports Keyboard 1 x 6-pin Mini-DIN Female (Purple)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x 6-pin Mini-DIN Female (Green)
KVM Ports Keyboard 8 x 6-pin Mini-DIN Female (Purple)
Video 8x HDB-15 Male (Blue)
Mouse 8x 6-pin Mini-DIN Female (Green)
Power 1 x DC Jack (Black)
Switches Power 8x Pushbutton
LEDs On Line 8 (Green)
Selected 8 (Orange)
Power 1 (Blue)
Emulation Keyboard PS/2
Mouse
Video 1920 x 1440; DDC2B
Scan Interval 3,5,10,15,20,30,40,60 Seconds
Power Consumption DC9V, 1.08W
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 2.85 kg
Dimensions ( L x W x H ) 45.00 x 17.00 x 6.70 cm


The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders
