CL5708iM - Aten - 8 Port LCD VGA KVM, 1-Local/Remote Share Access, PS/2-USB VGA, Single Rail 17" LCD IP KVM Switch (CL5708i) ATEN LCD Console
Aten: CL5708i(M) 17" LCD KVM (8 Port) pmkvms722
Description:
The CL5708i(M) Slideaway 17" LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708i can control up to 8 computers. As many as 15 additional KVM switches can be daisychained to the CL5708I, so that up to 128 computers can all be controlled from a single KVM console. The CL5708i(M) LCD KVM Switch is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP/IP for its remote communications protocol.
Features:
• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM console with 17" LED-backlit LCD monitor in a Slideaway™ housing 1 remote bus for KVM over IP access-allowing IT admins to remotely monitor and control upto 8 servers
• Mouse DynaSync™-automatically synchronizes the local and remote mouse movements
See 'further information' for the full list of features

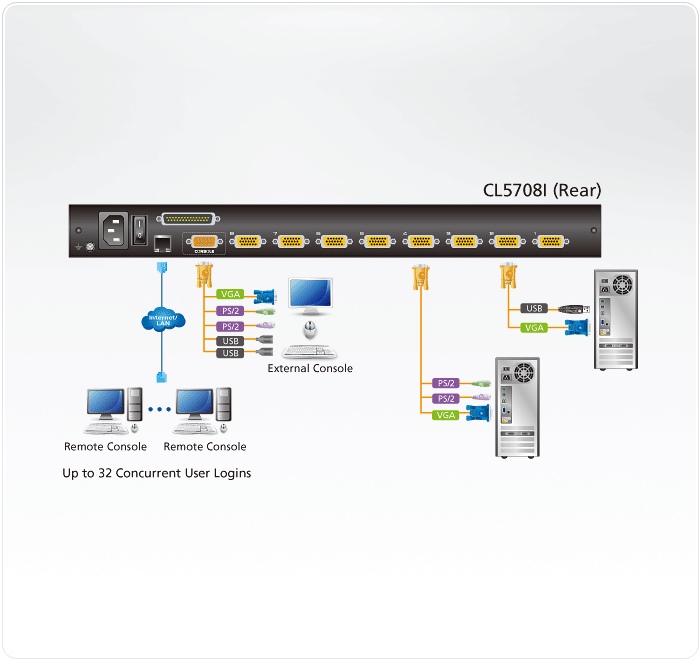

DIAGRAM
Specification:
Package Contents:
1x CL5708I LCD KVM over IP Switch with standard Rack Mount Kit
2x 2L-5202U Custom KVM Cables (VGA, USB; 1.8 m/6 ft)
1x LIN5-27X6-U22G Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
CL5708IM & CL5708IN
Computer Connections
Direct 8
Maximum 128 (via Daisy-chain)
Port Selection OSD, Hotkey, Pushbuttons
Connectors
External Console Ports 1 x SPHD-18 Male (Yellow)
External Mouse Port 1 x USB Type-A Female
USB Port 1 x USB Type-A Female
KVM Ports 8 x SPHD-17 Female
Daisy Chain Ports 1 x DB-25 Male
Firmware Upgrade 1 x RJ-11 Female
LAN Ports 1 x RJ-45 Female
Power 1 x IEC 60320/C14
Switches
Port Selection 2 x Pushbutton
Station Selection 2 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Switch
Power 1 x Rocker Switch
LCD On/Off 1 x LED Pushbutton (Orange)
LCD Adjustment 4 x Pushbutton
LEDs
Online 8 x (Orange)
Port ID 1 x 2-digit, 7-segment (Yellow)
Station ID 1 x 2-digit, 7-segment (Yellow)
10/100 Mbps 1 x (Orange/Green)
Power 1 x (Dark Green)
Lock 1 x Num Lock, Caps Lock, Scroll Lock (Green)
Video
Remote 1920 x 1200 @60 Hz
Panel Spec
LCD Module 17" TFT-LCD 19" TFT-LCD
Resolution 1280 x 1024 @75 Hz
Pixel Pitch 0.264 mm x 0.264 mm / 0.294 mm x 0.294 mm
Response time 5 ms
Viewing Angle 170° (H), 160° (V)
Support Color 16.7M colors
Contrast Ratio 1000:1
Luminance 250 cd/m˛
Emulation
Keyboard / Mouse PS/2, USB
Scan Interval 1-255 sec.
Maximum Input Power Rating 100-240V AC, 50-60Hz, 1A
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic
Weight 13.49 kg ( 29.71 lb ) / 13.41 kg ( 29.54 lb )
Dimensions (L x W x H) 48.00 x 64.27 x 4.40 cm / 48.00 x 68.92 x 4.40 cm
Note - For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
