X-USBPRO-MS2-UK Adder AdderLink Dual Head Video KVM Extender, Transparent USB, Audio and Multiscreen UTP VGA extender up to 300m , USB & Audio - transmitter & receiver pair with IEC PSU (UK power supply)

Picture shows single video version only

Description:

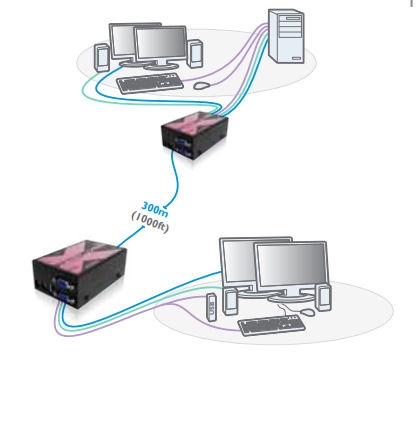

Adder's next generation USB, Dual Video version and audio extender delivers sharp, bright and high resolution video images and high quality audio for multi screen desktops at distances up to 300m (1000ft) over CATx cables. The AdderLink X-USB PRO MS has been designed to provide industryleading video clarity, compatibility and high rack densities

Features:

Video -
VGA resolutions of 1920 x 1200 are achievable at 300 meters (1000ft). This is achievable by including a variable noise filter which overcomes issues introduced by increased gain as the length of the cable increases over 200 meters.


Video compensation -
A Multi-pole compensation technique is used enable superb video quality at maximum distance over a single cable. For the first time, adjustment can be made for cable type and cable length with further color skew compensation and gain adjustment to ensure crystal clear images, all from the receiver's keyboard.


Local feed through port -
A local feed trough port is provided for audio and video so a local console can be used

USB powered Transmitter -
The transmitter is powered via its USB port to reduce the need for external supplies. There is an option for an external power supply if the USB port has insufficient power.


Dual user configuration -
Two X-USB PRO units can be linked to a single computer so two users can access the system. When using two sets of X-USB PRO modules to allow two users to access a single computer the arbitration between the users is handled by the USB sub- ystem of the computer. This means that both users can control the computer at exactly the same time and the resulting keyboard and mouse influences will be an amalgam of the two inputs.


Emulated 2 page DDC EDID-
This extender supports full two page DDC EDID. Some high performance video cards require the two page data or they will not deliver optimal performance.

USB support -
The X-USB extends USB 2.0 (low and full speed) allowing all USB compatible accessories (including isochronous devices) to be extended. The receiver unit has a built in 4 port USB hub to enable a complete desktop to be located remotely, including a keyboard, monitor, mouse, disk drive, flash memory stick, webcam, and any other device that would normally be plugged into your computer's USB port.

Audio -
Audio transmission delivers CD quality stereo audio for speakers. ( The new supported audio method is only through USB on this new replacement model as opposed to 3.5 Stereo jack on the older X-USB-UK Model )

Rack options -
Both transmitter and receiver units can be used stand-alone or up to 16 units can be mounted into a 2U chassis

Picture shows single video version only adrtpd0113

Specification:

Video Resolution
Dual Video resolution up to1920x 1200at 60Hz

Skew Compensation
62ns de-skew with 2ns resolution (1/4 pixel at 1600x1200)

Extension Distance
200 meters using CAT5 Trunk cable
250 meters using CAT5e Trunk cable
300 meters using CAT6 Trunk cable
300 meters using CAT7 Trunk cable
200 meters using CAT7a Patch cable

Audio (end to end)
2 channel 16 bit Audio @ 44.1 KHz THD+N typically -80dB at 1kHz SNR typically 85dB at 1kHz

O/S Compatability
Operating system independent

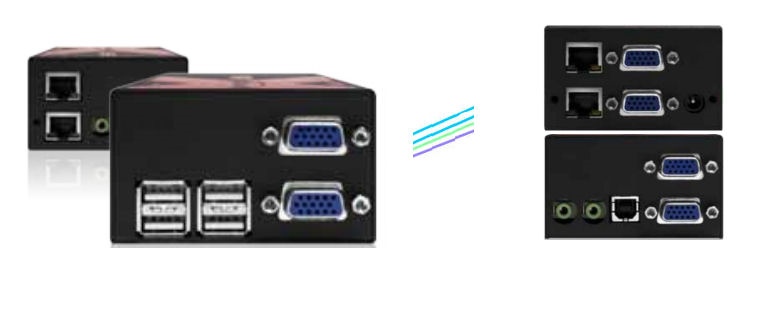

Connectors (local / remote)

Local: 4 x 15 Pin D Type VGA, 1 x USB B, power jack, 2 x 3.5 mm jack socket and 2 x RJ45
Remote: 2 x 15 Pin D Type VGA, 4 x USB A, power jack, 3.5mm jack socket and 2 x RJ45

Physical Design
Local: All metal case, 122mm / 4.7’’ (w) x 75mm / 3’’(d) x 48mm / 2’’ (h) 500g / 1.1 lb.
Remote: All metal case, 162mm / 6.4’’ (w) x 75mm / 3’’(d) x 48mm / 2’’ (h) 650g / 1.4 lb.

Power
100 - 240VAC, 50/60Hz input – 5V, -12W output for bth local and remote

Operating Temperature
0ēC to 40ē / 32ēF to 104ēF
Approvals

CE, FCC
Order Codes

X-USBPRO-MS2-XX
