Unfortunately we do not stock the Raritan P2-UMT1664M Paragon II Cat 5 Matrix Switch 16-user 64-port (Paragon 2) currently.

Please contact us to find out if this is merely a temporary situation. If the product has gone out of production we should be able to suggest a suitable alternative product.

Raritan P2-UMT1664M Paragon II Cat 5 Matrix Switch 16-user 64-port (Paragon 2)

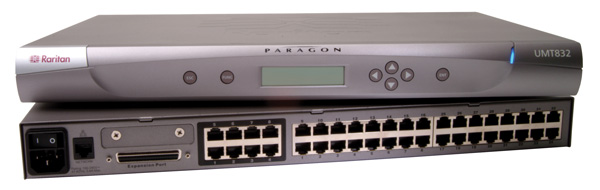

Paragon II UMT1664 at back and 832M ( 8-32 Port Model Pictured Close Up ) 315

Description:

The Paragon system is now discontinued by Raritan. We can still supply some spare parts whilst our stocks last. However - why not replace. We can offer a similar solution using a Raritan Dominion KX3 and User station setup. Contact us for details of a trade in and the most suitable recommended new solution. Raritan P2-UMT1664M Paragon II Cat 5 Matrix Switch 16-user 64-port ( Paragon 2 ) THIS UNIT: 1 x Management Connection RJ45 Port 16 x RJ45 Socket User Ports 64 x RJ45 Socket Computer Ports ( Required to be used with associated User Station & CIM's SEE COMPATIBLE PRODUCTS ) Expansion/Stacking Port for connection to additional units 1 x IEC Power Input Port

Features:

Paragon II

'Now, the Industry's Best Cat5 KVM Solution is Even Better'

Paragon Technology

Next generation technology built upon the most widely deployed KVM switching in the
industry.

KVM switching

Provides powerful BIOS-level access and full keyboard and mouse control of Windows, SUN
and USB servers – allowing administrators to maintain and control servers, as if they were
actually present at the rack.

High performance Analog technology

Paragon II’s analog switching provides extremely high video quality ideal for use in
management-intensive scenarios such as in a Network Operations Center (NOC).

Stackable expansion unit

Paragon II’s stacking unit allows expansion of each switch to attach up to 128 devices per
switch with a single cable.

Stacking architecture simplifies cabling between ‘tiers’ by replacing pass through cables with
a single expansion cable – saving up to 32 cables per switch.

Stacking allows a reduction in the number of units deployed by 33% (two units replace three
units) giving savings in initial cost, rack space and lower HVAC provisioning costs.

Highly scaleable architecture

Paragon II’s architecture allows for connection of up to 10,000 attached devices in a single
logical deployment.

Cat5 Simplicity©

Paragon II leverages Raritan’s Cat5 simplicity technology allowing any standard UTP cables
to be used, therefore allowing the use of existing cabling infrastructure or cost-effective,
readily available cabling.

Optional IP Access

Optional IP Access extends the typical distance between Paragon components allowing users
to access a Paragon II deployment from anywhere such as HQ, home, or while traveling.
Integrated power management

Provides a single, consolidated view (and control of) Raritan Remote Power Control Units
connected to Paragon II, allowing administrators to monitor status and recycle power to
remote equipment including servers, remote alarm monitoring, HVAC, and other critical
data center equipment.

Paragon Manager administrative software

GUI software that drastically simplifies management and monitoring of the data center by
consolidating administration of attached equipment. With a single view of all connected
equipment via the LAN, Paragon Manager lets you capture and save all system events for
auditing purposes, push firmware upgrades via the network, and maintain system profiles.

Firmware upgradeability via network connection

Simplifies the upgrading of firmware updates by allowing the administrator to push upgrades
out over the network and complete installs from the NOC – saving time and money.

Cross-platform and hardware independent

Allows the connection of multiple disparate servers such as Windows, SUN, Compaq, HP
and UNIX-based servers. Also allows serial devices to be connected with the use of
Raritan’s AUATC adaptors.

Backward compatibility

Paragon II is compatible with existing Paragon equipment avoiding equipment redundancy
and allowing continued ROI.

Small form factors and rack-mounting

Very small form-factor saves expensive rack space and makes it perfect for large data centers
where space is at a premium. Reduced form factors minimize electrical consumption by
lowering HVAC provisioning needs.

AC Power: 110/220V Auto-Switching

Integrated power supply ensures proper power provision and system reliability.

P2-UMT1664

Specification:

P2-UMT1664M

16 users x 64 server ports,

Includes: Expansion slot, stacking port, network port

Dimensions: 17.32” x 11.41” x 3.5”; 440 x 290 x 89mm

Weight: 12.52 lbs (5.68 kg)

Voltage: 100V/240V

Frequency: 50/60Hz 0.6A
