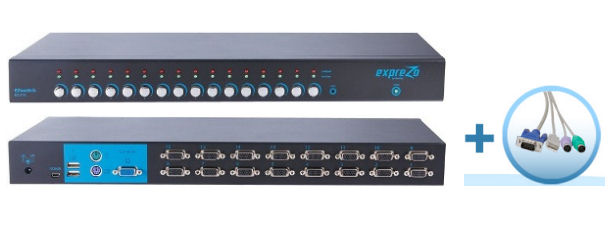

EZ-116-UK - Raritan - 16 port Exprezo EZ Range Combo KVM Switch with 8 x Cables UK Rack Kit (END OF LIFE) - Call for Alternative.

(END OF LIFE) - Please Contact us for a Suitable Replacement.


16 Port KVM Switch from EZswitch Combo KVM Series As a growing small or medium-sized business, the key to your success lies in being able to quickly and effectively react to situations that disrupt your company’s uptime. With the expreZo EZswitch, you can access and control computers that require remote rebooting or troubleshooting, ensuring business continuity and minimizing expensive travel costs. Full Package Contents: 1 x 16-port Combo KVM Switch,1 x User Manual (Warranty Card included),1 x Power Adapter,1 x Rack Mount Kit, starter 8x Custom Combo 4-in-1 cables


• Connect computers via PS/2 and/or USB.

• Supports Windows, Linux, Mac OS9/OSX, Sun Microsystems.

• On-Screen-Display (OSD) & Cascade Chain functions.

• OSD with intuitive menus for quick and effective navigation.

• Daisy chain switches to control up to 4096 PCs (16-Port) from a single console. Cascaded units do not need special configuration.

• Hot-pluggable: all devices connected to expreZo can be added or removed at any time without shutting down the devices.

• Easily switch between connected devices with:

- Hardware Push Button,
- Hot-Keys on PS/2 and/or USB keyboard,
- OSD menu.

• Auto Scan video for effortless monitoring.

• Supports LED display for PC and/or server status monitoring.

• Supports video resolutions up to 2048 x 1536.

• Enable/disable beeper during channel switching.

• Supports tiering with Dominion KX2 models.

• Rack mountable in 19” rack (1U).

• Firmware is upgradeable via a mini-USB port.

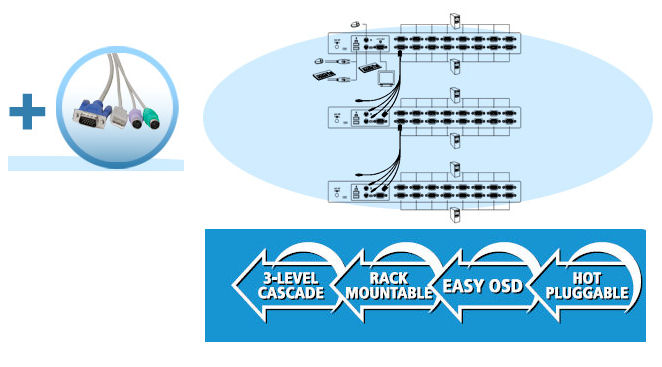

Exprezzo range cascade



EZ-108 (8-port) / EZ-116 (16-port)

Selection Method Push Button and Hot-Key (PS/2 / USB Keyboard)
Or On-Screen-Display (OSD)


Red for PC Selection
Green for PC On-Line ready

KVM Ports Video

8/16 x HDB-15 female
(PS/2 & USB signal combined

Console Ports

Keyboard:1 x 6 pin mini-DIN female
Mouse: 1 x 6 pin mini-DIN female
Video: 1 x HDB-15 female
Keyboard: 1 x USB – A type female
Mouse: 1 x USB – A type female


Auto-Scan Interval
Adjustable time setting by OSD menu driven
DDC, DDC2 Monitor Max. Resolution up to 2048 x 1536 @ 65Hz
Hot Swappable Yes
Operating Systems Supported Windows 98SE/ME/2000/XP/2003/Vista/7 Server, Linux,
Mac OS9/OSX and Sun Microsystems
Power External power adapter, DC 5V, 2.0A


Dimensions (LxWxH) 17.3” x 6.1” x 1.5”;
44 x 15.7 x 4.5 cm
Unit Weight 3.86 lbs / 4.19 lbs;
1750g / 1900g
Housing Material Metal


Operating Temperature 0–50°C; 2–122°F
Humidity 0%–80%RH
Firmware Upgrade Port Mini USB female

System Requirements

Local Console Supports VGA, SVGA, Multisync monitor high
resolution video - 2048x1536.

PS/2 and/or USB Keyboard/Mouse.

Computer or Server PCs must support:

- VGA, SVGA or Multisync card.
- Type A USB port or mini-DIN 6 pin PS/2 keyboard and mouse.


Custom 4-in-1 cables included
in the product package.
