Unfortunately we do not stock the DLX-116 Raritan Dominion LX - 1-16 Multi Port KVM-over-IP Switch (END OF LIFE) currently.
Please contact us to find out if this is merely a temporary situation. If the product has gone out of production we should be able to suggest a suitable alternative product.
DLX-116 Raritan Dominion LX - 1-16 Multi Port KVM-over-IP Switch (END OF LIFE)

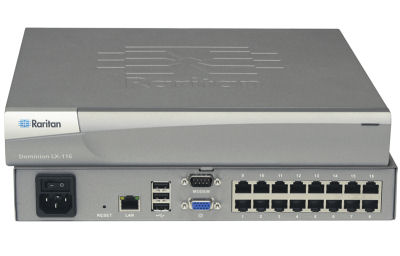

Raritan DLX 116 model from and rear pmad115
Description:
Economical, extensible 16-port KVM-over-IP switch, 1 remote, 1 local user, virtual media, single power and single LAN. Multi Port KVM-over-IP Switch Dominion® LX is a high-quality, cost-effective KVM-over-IP solution. Raritan’s Dominion LX is the KVM-over-IP switch that provides IT managers in small to midsize business (SMB) environments with local and remote BIOS-level access and control of up to 16 servers, 24 hours a day, 7 days a week no matter where you are. With tiering, multiple Dominion LX switches can be connected together, and up to 256 servers can be accessed. The Dominion LX modern architecture platform supports High Definition (HD) 1920x1080 remote video resolution for a crisp, clear view into your server infrastructure. Unlike other KVM-over-IP switches for SMBs, the Dominion LX offers economical, remote access and the ability to install OS and software from anywhere using Universal Virtual Media™, efficient reliable server management through a common and modern GUI, and low cost flexible computer interface modules (CIMs) for a minimum initial investment.
Features:
- Local and Remote User Support for one or two remote users, with an independent local port for non-blocking access.
- Raritan’s Universal Virtual Media™ - mount media devices on remote servers enabling IT management from anywhere.
- Advanced Encryption Standard (AES) - 128-bit and 256-bit encryption for added security.
- Asian language remote user interfaces
- Secure, remote BIOS level access and control, for effective server management even if the OS is unresponsive.
- Modern, easy-to-use, common browser-based GUI simplifies local and remote server access and management.
- Absolute Mouse Synchronization™ ensures that the remote and target server mouse pointers stay in sync, making server management easy.
- Modem Port for Emergency Access
- Multiplatform via Raritan CIMS
- The Dominion LX utilizes the Advanced Encryption Standard (AES) encryption for added security. 128-bit and 256-bit AES encryption is available. AES is a U.S. government –Approved cryptographic algorithm that is recommended by the National Institute of Standards and Technology (NIST) in the FIPS Standard 197.
DLX - Example of DLX-216 Version full functions shown.
Specification:
Form Factor - 1U, full width, rack mountable (brackets included)
Dimensions (DxWxH)
11.45" x 10.63" x 1.73";
291mm x 270 mm x 44mm
Weight 8.82 lbs ; 4.0 kg
Power - Single power 100-240V AC, 50-60 Hz, 0.5A,
KVM Ports - 8 (DLX-108) or 16 (DLX-116, DLX-216)
Power Control Ports 1
Local Admin Port (VGA) Video
Keyboard/Mouse
Video: HD15(F) VGA;
Keyboard/Mouse: USB(F); 3 USB rear
Environmental Requirements - Operating Temperature 32° (0°C) to 104° (40°C)
Remote Connection Network
Single 10/100/1000 gigabit Ethernet Access (RJ45)
Modem - Integrated 56K V.90 (RJ11 port)
Protocols -
TCP/IP; HTTP; HTTPS; UDP; RADIUS; SNMP; DHCP; PAP; CHAP
Supported Video Resolutions
PC text mode: 640x350, 640x480, 720x400
PC graphic mode: 640x480, 800x600, 1024x768, 1152x864, 1280x1024, 1440x900,
1680x1050,1600x1200, 1920x1080
Sun video mode: 1024x768, 1152x864, 1152x900, 1280x1024
Warranty- Two Years with Advanced Replacement* Guardian Extended Warranty Available
