VE800A Mini Cat 5 HDMI Extender Cat 5e/6 cable, 40m @1080p; 60m @1080i (HDTV); Compliant with HDMI 1.3b - Video Extender (VE Range)
VE800A EXTENDER SET ( Transmitter T & Receiver R )
Description:
The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATEN’s VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display’s EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
Features:
• Extends the distance between HDMI source and HDMI display
• Uses Cat 5e cable to connect the local and remote units
• Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
• Superior video quality – 1920 x 1200, up to 1080p
• HDMI (3D, Deep Color); HDCP Compatible
• Supports Dolby True HD and DTS HD Master Audio
• 8 segment equalization adjustment switch optimizes display quality
• DDC compatible

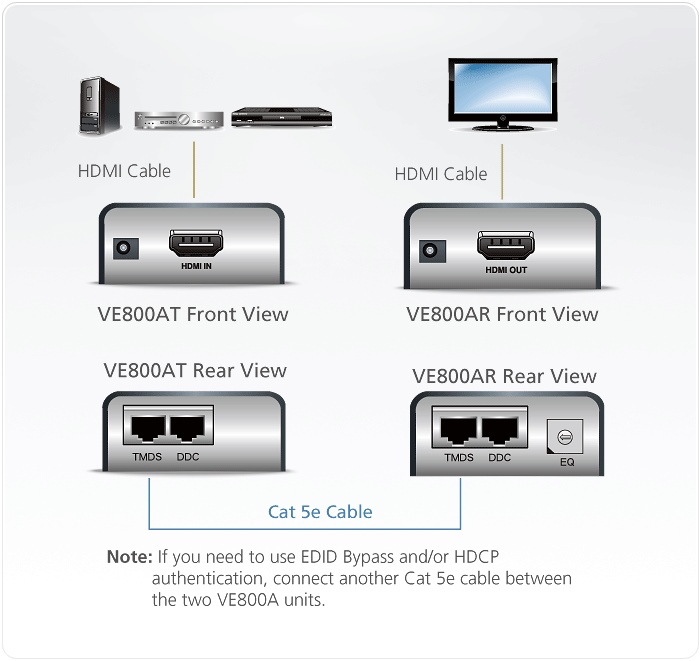

VE800A Pair setup
Specification:
Function VE800L VE800R
Device Connections 1 N/A
Connectors Display HDMI Out N/A 1 x HDMI Type A Female (Black)
Device HDMI
In 1 x HDMI Type A Female (Black) N/A
Unit to Unit 2 x RJ-45 Female 2 x RJ-45 Female
Power Jack 1 x DC Jack 1 x DC Jack
LEDs Power 1 (Orange) 1 (Orange)
On Line N/A 1 (Green)
HDMI Resolution HDTV resolutions: 480p, 720p, 1080i, 1080p(1920 x 1080); PC resolutions: VGA, SVGA, XGA, SXGA, UXGA, WUXGA (1920 x 1200)
Power Consumption DC 5V,1.22W DC 5V, 0.95W
Environment Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.16 kg 0.16 kg
Dimensions
(L x W x H) 9.00 x 5.50 x 2.40 cm
