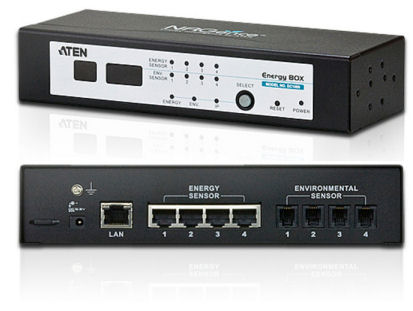

Aten EC1000 Energy Box - Energy PDU Port x 4, Eco Sensor Port x 4 with Eco PDU Manager Software EC1000 ( Env Sensor Hub )

EC1000 pmvd0515

Description:

The EC1000 Energy Box is the latest evolution of NRGence™ – ATEN's energy intelligence solutions. It is the intelligent, cost effective solution to monitor ATEN's Energy PDUs – to ensure safe and effective energy-saving power management. Also known as the "ATEN NRGence EC1000 Power monitoring unit". The EC1000 Energy Box has four Energy Sensor ports to connect to four Energy PDU modules and four Environment Sensor ports for external sensors to monitor environmental conditions. Each environmental sensor can provide measured readings of temperature, humidity, and differential pressure from separate areas of a data room, giving a wide range of monitoring and protection you need. The Energy Box allows power and environmental data to be monitored and displayed at the rack or remotely for easy viewing and maintenance. The Energy Box is a standalone unit with Over IP monitoring that is controlled by Web GUI or ATEN´s eco Sensors software. The EC1000 Energy Box features real-time status, system logs, threshold alerts, and event notifications. The EC1000 logs power and environmental conditions according to customizable minimum/maximum thresholds set for electrical current, temperature, humidity, and differential pressure. Remote monitoring offers secure access with 128bits SSL encryption, and customizable account policies for user management. Remote authentication supports RADIUS and additional management interfaces including HTTP, HTTPS, and SNMPv1&v2&v3 (Read, Write, Trap). Event notifications can be monitored via Syslog/SMTP/SNMP trap and audible alarms for real–time local and remote alerting. When used in conjunction with ATEN´s Energy PDUs* and eco Sensors Energy Management Software*, the EC1000 allows you to conveniently upgrade your cabinet with remote energy management functionality to make your server room go green quickly and cost-effectively.

Features:

Operation

- Space saving 1U rack mounting with front and rear mounting
- 4 RJ-45 Energy Sensor Ports to monitor four Energy PDU currents (0A to 32A per port)
- 4 RJ-11 Environment Sensor Ports to monitor temperature, humidity, and differential pressure*
- Maximum Amperage Monitor 32A@100V~240V (Energy Box)
- 3 digit 7 segment front panel LED displays current/sensor/IP address information

Threshold monitoring for:

1.Current
2.Temperature*
3.Humidity*
4.Differential pressure*

Threshold alerting through:

1. Local: audible alarm and LED lights
2. Remote: SMTP/SNMP trap/Syslog

Management

- Front panel LED indicators for current, temperature*, humidity*, differential pressure*, & IP
- Remote real-time current, temperature*, humidity*, and differential pressure* monitoring
- Management through eco Sensors Energy Management Software or 3r party SNMP manager
- Supports name assignment for individual Energy PDUs
- Event Logging – 128 line event log
- Syslog support
- F/W upgradable

Remote Access

- Remote management via TCP/IP using built in 10/100Mbps Ethernet port
- Management via built in browser based GUI
- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS,
- "10Base-T/100Base-TX, auto sense, Ping"
- Supports SNMP Manager V1, V2, V3

Security

- Strong security features include password protection and advanced encryption technologies
- (Utilising 128 bit SSL)
- RADIUS authorization and authentication

* Requires external sensors SEE COMPATIBLE PARTS

EC1000

Specification:

ELECTRICAL

Energy PDU Connections 4
Port Selection Pushbutton
Connectors Energy Sensor 4 x RJ-45 Female
Environment Sensor 4 x RJ-11 Female
Power 1 x DC Jack
LAN 1 x RJ-45 Female
Switches Reset 1 x Semi-recessed Pushbutton
Selection 1 x Selection Pushbutton
LEDs PDU Status 4 (Orange)
Sensor Status 4 (Green)
Energy/Environment/IP 3 (Green)
Selection 1 digit 7-segment (Orange)
Current/Sensor/IP Address 3 digit 7-segment (Orange)
Power 1 (Blue)
LAN 10M/ 100Mbps 1 (Orange/Green)
Link 1 (Green)
Monitoring Range 100–240V; 50/60Hz; 0A to 32A (per port)
LED Display Resolution 0.1A
Precision: ±0.1A@0 ~ 1A, ±1% >1A
Power Consumption DC 5.3 V

ENVIRONMENTAL

Operating Temp.
0-50°C
Storage Temp. -20-60°C
Humidity 0 - 80% RH, Non-condensing

PHYSICAL PROPERTIES

Properties Housing Metal
Weight 0.59 kg
Dimensions
( L x W x H ) 20.00 x 7.59 x 4.20 cm

COMPLIANCE

EMC Verification - FCC, CE, C-Tick, Others by Request
Safety Verification - cTUVus, PSE, Others by Request

* The specification and pictures are subject to change without notice.

* All trademarks and logos are the properties of their respective holders.

CONTENTS

1x EC1000 Energy Box
1x Power Adapter
1x Mounting Kit
4x RJ-45 Cables
1x CD ROM (Manual, eco Sensors Software)
1x User Instructions

Click here for further information

compatible products

Price:£ 144.95 + vat
