PDUeX-ATS-16A-10N1 Rack mount Automatic Transfer Switch 10 C13 IEC Sockets, 2 x input IEC 320 C20 INPUT PORTS
(KWX ATS) Provides Total Current Monitoring.

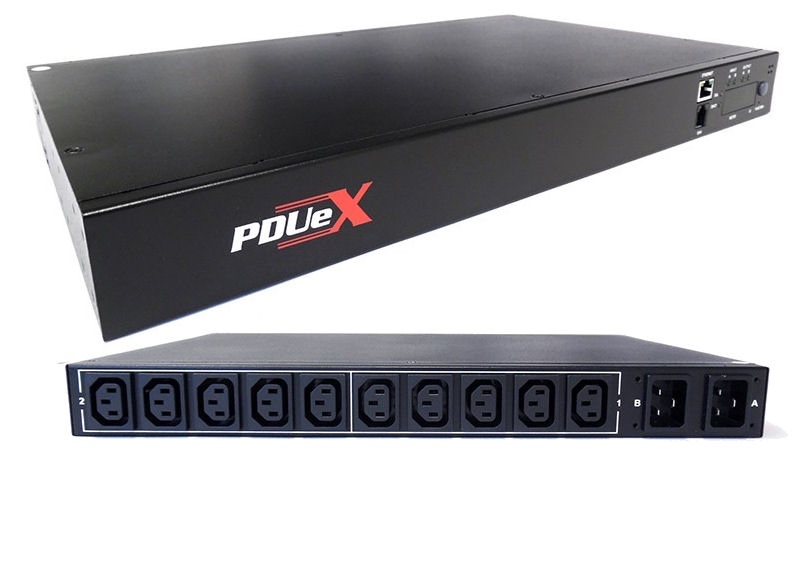

PDUeX ATS Guideline picture .
Unit spec has :10 x C13 from 2 x C20 Inputs Ports requiring detachable cables

Description:

PDUeX-ATS-16A-10N1 Rack mount Automatic Transfer Switch ( ATS) Provides Total Current Monitoring, delivers consistent power, to single-corded equipment. Action Automatic Transfer Switch. Provides, total Power Monitor by Meter, Web, SNMP, Free PDUeX management software, Protocols TC/IP, SNMP, DHCP, UDP, Event Alert email trap, SNMP & Email, Effortless user friendly PDU management interface. PDUeX 16Amp 230Volt Automatic Transfer Switch (ATS) is a single Phase Dual Input. When Input A falls below 168 VAC and Input B is valid, the output is automatically transferred to Input B. The output is transferred back to Input A when Input A is valid and rises above 178 VAC. This high speed transfer rate ensures that the transfer is transparent to the sensitive equipment. The two sources are not required to be in phase. This is an effective solution that builds in redundancy and increases the AC power availability of connected equipment. If the dual input power is fed through two independent AC sources, then the system availability is increased and the dual input advantages are fully used. 10 x IEC-C13 sockets, 2 x input IEC 320 C20 INPUT PORTS

Features:

High speed ATS - Automatic switch over power A and power B Switching time (From "A" to "B" line): 8 ms ≤ 12 ms

10 x IEC-C13 sockets, 2 x input IEC 320 C20 INPUT

Provides, total Power Monitor by Meter, Web, SNMP, Free PDUeX management software, Protocols TC/IP, SNMP, DHCP, UDP, Event Alert email trap, SNMP & Email, Effortless user friendly PDU management interface.

SUPPLIED WITH 2 X CABLES C19-C20 As below :

Different cables including colour options available - see compatible parts

Specification:

10 x IEC-C13 sockets, 2 x input IEC 320 C20 INPUT


1. Item Description
2. Product series Basic ATS
3. Product Size W x D x H= 19“ x 202 x 44.45 mm
4. Mounting
length
465 mm
5. Case color Black

6. Connectors : Outputs 2x C13(Lockable) , Inputs 2 x C14 A&B
LED display
Input/output voltage
Total load current
Power supply A or B line operating state
8. Function
Automatic switch over power A and power B
Overload alarm When over the 10A threshold both the ATS alarm and the LED display will be activated.
Switching time (From "A" to "B" line): 8 ms ≤ 12 ms
