G-NET-3KVA G-NET Gamatronic Online UPS Std 3000 VA G-NET(UPSB1-3)

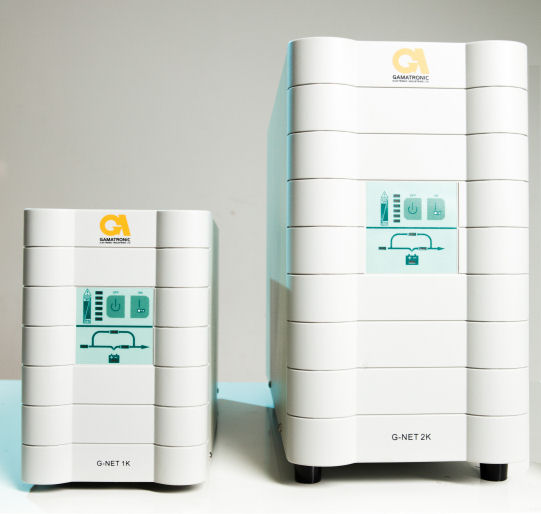

Gamatronic G-NET Range 1-3 kVA

Description:

The Gnet Tower series of UPS systems is a line of an advanced true on line UPSs which provide clean, reliable and regulated AC power to perfectly adapt to user needs. The series ranges from 1-10 kVA available both in rack and tower design. The 6 -10 models adopt rack tower design as standard 19" and 2 U design when changed into a tower model . This alternation is made by simply revolving the unit and LCD display The G-Net is an advanced, true online Uninterruptible Power Supply (UPS) providing reliable, regulated and stable voltage to any type of load, from computers and telecommunication systems to automated industrial control systems. The GNet UPS is available in various models of up to 10 kVA. Voltage surges, spikes and sags are inherent in commercial utility power. Over time, these irregularities shorten the life of the equipment and components. The G-Net UPS continually eliminates power irregularities, thus helping extend the life of your equipment, even through normal use when the input power is constant and continuous. The G-Net 6 - 10 kVA is designed so that it can be deployed horizontally or vertically. When deployed horizontally, it fits in a standard 19” rack, and is 2U in height. When deployed vertically, the control screen can be physically rotated 90 degrees for easy use in either position

Features:

• True on line sine design, pure sine wave output without
pollution.
• Intelligent DCP/CPU design with 0.98 PFC.
• Zero transfer time ensuring the reliability of the load
operation.
• Local and remote control capability with RS232 or USB
port compatible with SNMP.
• Self diagnosis and protection function.
• Peak value of current and short circuit protection design

Specification:

* All specifications are subject to change without notice.
G-NET 1 kVA-10 kVA
Rack & Tower UPS
The Gnet Rack &Tower series of UPS systems is a line of an advanced
true on line UPSs which provide clean, reliable and regulated AC power to
perfectly adapt to user needs.
The series ranges from 1-10 kVA
available both in rack and tower design.
The 6 -10 models adopt rack tower
design as standard 19" and 2 U design
when changed into a tower model . This
alternation is made by simply revolving
the unit and LCD display.
GNET TECHNICAL SPECIFICATIONS
1kVA
2kVA
3kVA
6kVA
10kVA
Topology
True on-line, double-conversion, VFI
Operation
Continuous
INPUT
Voltage (nominal, Vac)
220, single-phase
Voltage range (Vac)
160 ~ 276
Current, max. (A)
7
12
16
31
50
Frequency (Hz)
50
Power factor (full load)
0.98
OUTPUT
Rated power (kVA / kW)
1 / 0.8
2 / 1.6
3 / 2.4
6 / 4.8
10 / 8
Frequency (Hz)
50
Frequency range (%)
±1 (battery mode)
Voltage (Vac)
220±1 %, single-phase
Current (A)
5.4
9.6
13
27
45
Overload
105 % ~ 130 % transfer to bypass after 1 minute
>130 % transfer to bypass after 1 sec, no output after 1 min.
Waveform
Sinusoidal
THD (%)
<2 for linear load
Load CF (max)
3:1
Power factor
0.8
BATTERIES (see also Battery pack specifications)
Ty p e
Sealed, lead acid, rechargeable, maintenance-free
GENERAL
Ambient temperature (°C)
-10 to +40 (operating and storage)
Relative humidity (%)
95 max. (non-condensing)
Altitude (m)
1000 without derating (derating table below)
Cooling system
Forced air (multi-fan with speed control)
LCD DISPLAY
Input
Voltage, current
Output
Voltage, frequency, current
Batteries
Voltage
Log (events memory)
Last 200 events
STANDARDS
Safety
IEC 62040-1
EMC
IEC 62040-2
Design
IEC 62040-3
Low magnetic field radiation
EMF as per ICNIRP
WEIGHTS AND DIMENSIONS FOR UPS, W/O EXTERNAL BATT. PACK FOR EXTENDED BACKUP
UPS weight (kg)
7.5 (12.5 with
internal batts.)
29.5 (includes.
internal batts.)
30.5 (includes
internal batts.)
UPS dimensions (H x W x D, mm)
218x145x402
350 x 193 x 450
350 x 193 x 450
WEIGHTS AND DIMENSIONS FOR 19” MODELS
UPS wgt (kg)
9 (14.5 with
internal batts.)
11
12
18
19
UPS dimensions (H x W x D, mm)
85 x 430 x 680
MODEL
NUMBER AND TYPE OF BATTERIES
CABINET DIMENSIONS (HXWXD, MM)
WEIGHT (KG)
72 V battery pack
6 x 12 V, 7 Ah
85 x 430 x 480
18
96 V battery pack
8 x 12 V, 7 Ah
85 x 430 x 480
22
192 V battery pack
16 x 12 V, 7 Ah
85 x 430 x 680
42
MODEL
Altitude (m)
1000
1500
2000
2500
3000
3500
4000
4500
5000
Derating factor
100 %
95 %
91 %
86 %
82 %
78 %
74 %
70 %
67 %
