PX3-4530V-N1 3PH Wye, 400V AC, 32A, 24 outlets: 21 x IEC C-13, 3 x IEC C-19, plug: IEC 60309 32A 3P+N+PE, 22.2kVA, Zero U vertical PDU,Ethernet, serial, USB-A, USB-B and sensor connections (PX-4000 Series) BTO

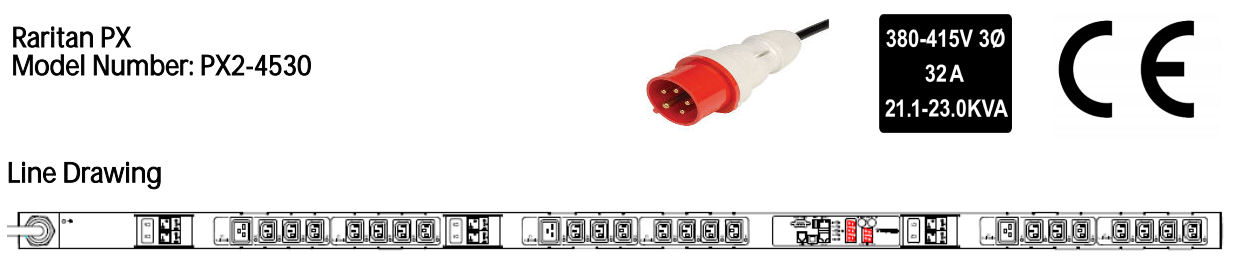

LINE DRAWING
Description:
400V, 3-Phase Wye (L-N), 22.2kVA, 32A The Raritan PX-4000 family of high-quality rack power distribution units (PDUs) offers real-time remote unit-level and individual outlet-level power monitoring of current (amps), voltage, power (kVA, kW), power factor and energy consumption (kWh) with ISO/IEC +/- 1% billing-grade accuracy. The PX-4000 also supports Raritan’s plug-and-play environmental sensors. Users can define thresholds and receive alerts when thresholds are crossed for both power and environmental events. The PX-4000 series is available in Zero U (vertical mount) and 1U and 2U (horizontal mount) form factors with a wide variety of NEMA, IEC and other plugs and receptacles, including models which support high power distribution such as 400V. Precise power information can be monitored, and the PX-4000 configured, via a user-friendly Web browser GUI or command line interface. Power information is also displayed at the PDU locally. Security is ensured with up to 256-bit encryption, strong passwords and advanced authorization options, including permissions, LDAP/S and Active Directory. Plus the PX-4000 series is fully compatible with Raritan's Power IQ energy management software solutions.
Features:
Energy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Remote Outlet Switching
No
Metering per input line
Yes
Metering per Branch Circuit Breaker
No
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
View all sensors.
Cascading
Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
Networking
Primary (10/100/1000 Base T) Ethernet with secondary redundant (10/100/1000 Base T) Ethernet in 0U, (10/100 Base T) Ethernet in 1U/2U/3U. Optional Wi-Fi (802.11ac/a/b/g/n).
Onboard Display
Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation
PLUG: IEC60309 32A (3 PHASE)
.jpg)
Specification:
PX3-4530V-N1 3PH Wye, 400V AC, 32A, 24 outlets: 21 x IEC C-13, 3 x IEC C-19, plug: IEC 60309 32A 3P+N+PE, 22.2kVA, Zero U vertical PDU,Ethernet, serial, USB-A, USB-B and sensor connections (PX-4000 Series)
BTO - (BUILT TO ORDER)
INPUT
Specifications
Input
Input Plug
230/400V Wye 32A IEC 60309 3P+N+PE 6Hr
Nominal Voltage
400V
Maximum Input Current
32A
Rated Input Current
32A
Power Capacity
22.2kVA
Cord Length
3m
Output
Nominal Voltage
240V
Receptacles (Output Connections)
(21) C13, (3) C19
Overload Protection
6
Physical
Dimensions (WxDxH)
TBD
Unit Weight
14kg
Shipping Weight
18.73927kg
Shipping Dimensions
1819 x 230 x 118 mm
Mounting
G2-RACK-FOR-ZU
Environmental
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-6000ft
Conformance
Regulatory Approvals
CE
Warranty
Standard 2 years manufacturer warranty
