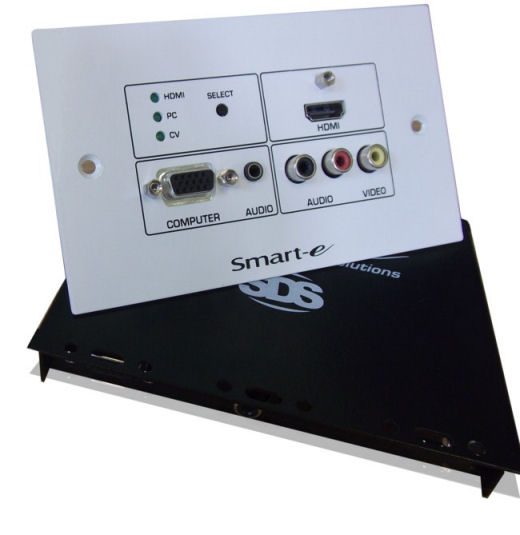

Smart-e SDS-1003 30m Wall plate transmitter and receiver pair for HDMI, RGBHV, Audio, Composite Video and RS232, providing inline power to 30m.
SDS-1003
Description:
The SDS-1003 is a flexible and cost effective solution to extending HDMI, RGBHV and stereo audio with video and audio, and RS232. Consisting of a transmitter/receiver pair, the input signals can be connected via a convenient wall plate (double gang UK size), whilst the receiver unit can be installed up to 30m away. Distribute high resolution HDMI and RGBHV signals together with audio over 3 x CAT 6-8 screened twisted pair cables up to 30m The SDS-1003 uses standard CAT 6-8 STP/FTP cable which is flexible, narrow in diameter and low cost. The cables can fit into small trunking and can be terminated easily with standard RJ45 connectors. The system can transmit a mix of signal types simultaneously, consistent with installing a plasma, LCD or projector in Boardrooms, lecture halls and classrooms. The system requires 3 x CAT 6-8 STP/FTP cables and can extend the signals up to a distance of 30m. The SDS-1003 transmits HDMI signals up to 1080p @60Hz, computer resolutions up to UXGA (1600x1200) and stereo audio. Selection of the signal type can be via the Auto sense feature, RS232 or button control on the wall plate. The receiver unit can be programmed with RS232 command strings to tell the display device which signal type has been chosen.
Features:
• Easy to install, inexpensive CAT 6-8 cable
• Outputs reach up to 30m
• Support HDMI up to 1.65 Gbps
• HDCP/EDID/DDC transparent link
• RS232 control
• Composite video and audio
• RS232 extension
• 3 x CAT 6-8 STP/FTP cables
• High ground loop immunity
• Button control & auto sense
• HDMI resolutions 1080p @60Hz, 3D
• RGBHV resolutions up to UXGA
• Supplies remote power to wall plate
• Compact receiver units
• Stereo audio
• Store RS232 codes for input selection
• Plug and play
• DVI and DisplayPort compatible
SDS-1003 typical setup
Specification:
Connector
HDMI type A
Connector
HdB15 socket
Signal formats
HDMI/DVI/DISPLAY PORT
Signal formats
RGBHV, YPrPb, Y/C, CV
Video resolutions
1080p @60Hz, 3D w/Deep Colour
Video resolutions
UXGA (1600 x200) @60Hz
HDCP/DDC/EDID
Transparent connection
DDC/EDID
Transparent connection
HDMI
Computer
Connector
3.5 mm jack socket
Signal formats
Stereo analogue audio
RS232 format
> 115kbaud
Bandwidth
20-20kHz
RS232 connector
Screw terminals
Wall plate size
145 x 85 x 20mm (double gang)
Voltage
12V
Wall plate weight
200g
Connector
2.5mm jack
Receiver size
150 x 150 x 25mm
Max current
1A A/S
Receiver weight
250g
Frequency
50/60Hz
Control
Audio
Dimensions
Power
