PX3-1486-M5V - Raritan - 1PH, 230V AC, 16A, 24 outlets: IEC-C-13, input type: IEC C-20 plug: IEC C-20 (PXI-TUV-C20C19-3M), 3.68kVA, zero U vertical PDU, Ethernet, serial, 2x USB-A, USB-B, sensor connections and Residual current Monitoring (PX-1000 Series)

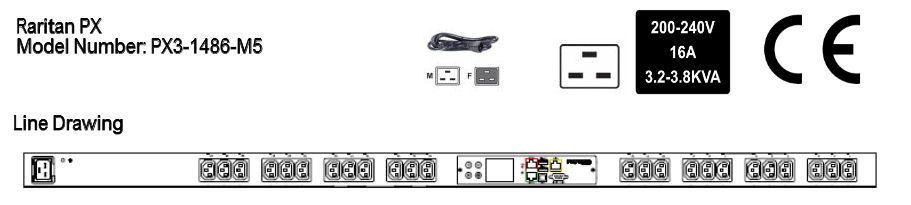

PX3-1486-M5 line drawing XUS716

Description:

Rack Power Distribution Units for Your Data Center Raritan’s PX3-1000 intelligent rack PDU series offers more than just power distribution -- it’s a launch pad for real-time remote BAR level power monitoring, environmental sensors, data center infrastructure management, and so much more. The PX series offers hundreds of models to power all your data center applications, including high density applications, and 400V three-phase power distribution. Raritan offers a variety of intelligent rack power distribution models that satisfy all of your metering requirements. Get certain off-the-shelf models delivered in as little as a few days, or have your PDUs engineered to meet your unique application. In the next few pages you’ll learn how Raritan was able to take over twenty-five years of embedded computing expertise and customer insights to reinvent the rack PDU and set the gold standard for data center power chain management. Find out why some of the world’s largest data centers trust Raritan’s intelligent rack PDUs to power their mission critical equipment. kWH Metering Accuracy Accurate kWh metering allows you to measure actual energy usage for accurate customer or department charge-back billing. The data can be used to encourage energy efficient behavior among users, establish power consumption baselines, and analyze the effect of efficiency initiatives. Soaring energy prices, greater competition in the marketplace, and global concerns over climate change are forcing companies to reconsider how they utilize power in the most valuable and energy intensive resource they own – the data center. It’s why data centers are now so focused on cutting operational costs by improving efficiencies, and making optimal use of energy, space, and cooling. They’re also tasked with the most important responsibility of all: to make sure the data, services, and pplications that we all rely on are always available. Not surprisingly, many of the major strategies being employed to address these challenges depend on capabilities that were not present in the simple commodity power strips of a few years ago. Consider how Raritan’s intelligent rack power distribution units (iPDUs) help data centers to achieve those goals.

Features:

Energy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power
Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Metering per Input Line
Yes
Metering per Branch Circuit Breaker
Yes
Metering per Output Receptacle
No
Remote Outlet Switching
No
Environmental Sensor Ready
Yes
Networking
10/100 BaseT Ethernet. Optional WiFi (802.11a/b/g/n)
Remote Management
HTTP(s); SSH; Telnet; RS-232 (Serial); Power IQ; SNMP version v2/v3; SMTP; JSON-RPC
Cascading
Yes
Max 8 PDUs can be daisy chained using a single Ethernet connection
Onboard Display
User-selectable display (voltage, current, or active power:per line, per breaker, or per
receptacle)
Compatible Sensors
Temperature, Humidity, Air Flow, Static Pressure
Single cable connection provides temp/humidity monitoring
at three points in cabinet (with a single sensor assembly)

Power Metering and Monitoring

Remote power monitoring, metering and rich data collection including current (amps), voltage, power (kVA, kW) and energy consumption (kWh) Make informed capacity planning decisions and efficiently utilise power resources such as finding stranded power in racks. Measure IT equipment power consumption to save power and money, calculate Green Grid’s PUE Level 2 and Level 3, and drive green data centre initiatives.

LED and alarms for unbalanced loads based on user-adjustable thresholds Increase efficiency, utilization and capacity. Load balance lines and circuits to avoid overloading neutral lines. Improve uptime and staff productivity.

Capable of ISO/IEC +/- 1% billing-grade accuracy real-time power monitoring and metering, down to individual outlets for some models Report and/or bill back power consumption (kWh). Trend and track energy utilization or bill power costs to users.

User-adjustable power data sampling and buffering End users can choose the frequency at which they monitor power and the amount of data they gather.

Power Management, Security and Remote Access

Alerts via SNMP, e-mail and syslog from individual outlets, units, lines and circuit breakers when user-adjustable thresholds are exceeded Receive advanced warning of potential problems with critical and non-critical thresholds and alerts.

Standards based polling, configuration and alerting with encryption via SNMP v1, v2, v3 support, SETs, GETs and TRAPs Increase uptime with alerts. Collect data for trending and capacity management.

Ethernet, serial, USB-A, USB-B and sensor connections Supports modem control functions for serial console access. Connectivity options for third-party peripherals enabling new applications, e.g., wireless, USB drives, etc.

Directory services support providing advanced authorization options, including permissions, LDAP/S, RADIUS and Active Directory®. 256-bit AES encryption and strong passwords Configure user access rights and security settings.

Remote access via Web and CLI. Supports HTTP, HTTPS, SSH and Telnet Check status of PDUs, lines, circuit breakers and individual outlets. For switched models, remotely provision (turn on), reboot and switch individual outlets and groups of outlets with user-configurable, outlet-level delays for power sequencing.

Compatible with Raritan’s Power IQ® Centralize power control and analytics and measure CO2 footprints.

Environmental Monitoring

Environment-monitoring-ready intelligent rack PDUs with optional plug-and-play environmental sensors

Monitor temperature and humidity to identify hot spots, confidently raise the ambient temperature of your data center to reduce cooling power consumption and manage static problems. Increase efficiency with ASHRAE guidelines.

Alerts based on user-defined environmental thresholds Save costs by leveraging PX to monitor the data center environment and receive alerts when thresholds are reached.

LED indication if sensor is plugged in and detected Provides confidence that environmental sensors are functioning and properly monitoring the data center environment.

Hardware

Hundreds of models Meets all your data center applications, including models with outlet switching and individual outlet metering.

High-power, including 400V power distribution and high temp 60C models For high-heat environments such as blade servers, high-density applications and storage area networks (SANs). Supports hot aisle containment and high-power blade racks.

High-quality construction and components such as solder connections to copper bus bars in PCBs, ISO 9000 quality manufacturing and quality components from Tyco, Hubbell® and Mennekes® Superior reliability compared to other rack PDUs available.

Lightweight and strong extruded aluminum chassis with excellent heat dissipation and versatile button and bracket mounts Mounting flexibility.

Designed with 3D CAD/CAM software Up to 36% less deep than competitive products for easier rack mounting and minimal equipment and airflow blocking.

UL489 circuit breakers Meets Underwriters Laboratories’ latest branch circuit protection standards. Unlike fuses, an electrician or an inventory of spare fuses are not required. Eliminates the possibility of installing a fuse with the wrong rating.

Smart reversible LED display that changes orientation Easily check power readings, such as line draw and balance for three-phase rack PDUs at the rack before adding devices. Increases installation flexibility.

Raritan’s 25 years of data centre management and embedded development experience led to the embedded high-performance processor Rich and full implementation network management, directory services and security with best-in-class user experience.

Scalability and headroom for future upgrades.

PLUG: C20 16A

Specification:

PX3-1486-M5V Raritan PDU 1PH, 230V AC, 16A, 24 outlets: IEC-C-13, input type: IEC C-20 plug: IEC C-20 (PXI-TUV-C20C19-3M), 3.68kVA, zero U vertical PDU, Ethernet, serial, 2x USB-A, USB-B, sensor connections and Residual current Monitoring

INPUT

Input Plug
IEC 60309 2P+E 6h 16A 2P3W (L1/L2/E)
IP44("splashproof") (230V, Single phase)
Cord Length
3 meters (9.84 feet) standard
Cord Entry
Bottom-front feed
Cable Type
2P 3W
Number of Power Cords
1
Maximum Input Current
16A (per line)
Nominal Input Voltage
230V, Single phase
Rated Input Voltage
200 - 240V, Single phase
Input Frequency
50/60Hz
Power Capacity
3.2kVA at 200V, 3.8kVA at 240V

OUTPUT

Nominal Output Voltage
230V
Rated Output Voltage
200 - 240V
Output Connections
(24) IEC 60320 C13 2-pole, 3-wire; 10A
Overload Protection
N/A
Cable Retention
Raritan SecureLock
TM
Ready
Optional retention clips are also available

PHYSICAL

Dimensions (W x D x H)
2.1" x 1.7" x 51.1" ; 52mm x 43mm x 1298mm
Color
Black powder coat
Mounting
Tool-less button mount

ENVIRONMENTAL

Operating Environment
5 - 60°C (41 - 140°F)
Operating Relative Humidity
5-85%
Operating Elevation
0-10000ft

CONFORMANCE

Regulatory Approvals
CE
Canada ICES-003, Class A
Part 15 Class A of the FCC rules
RoHS compliant
