PX3-3211 - Raritan Inline Meter: 1PH, 100-240V AC, 16A, 2 lines, Input Type: 2x IEC C-20, Output Type: 2x IEC C-19, 1U, Ethernet, Serial, 2x USB-A, USB-B and Sensor Connections
(PX-3000 Series) BTO
Description:
Raritan PX-3000 Series Intended to be inserted in existing power feeds where metering and environmental monitoring are desired. The PX-3000 inline meters support all PX iPDU functionality except remote outlet-level switching. They operate over a range of voltages and amperages. The actual voltages and amperages are determined by the data center wiring. Single and Three-Phase Inline Power Metering The PX-3000 Series of Inline Power Meters simplifies management of power usage and environmental conditions in the data center, while allowing you to monitor the power on dedicated circuits. There is no need to remove or re-cable IT equipment. Just wire the inline meter into existing circuits and get real-time remote power monitoring, including current (amps), voltage, power (kVA, kW) and energy consumption (kWh) to +/– 1% accuracy. Plus they're sensor ready to support rack temperature and humidity monitoring. Our intelligent inline meters also provide: Real-time remote power monitoring, including current (amps), voltage, power (kVA, kW) and energy consumption (kWh) to +/– 1% accuracy, even in real-world situations when the power isn’t a pristine sine wave Rack temperature and humidity monitoring By deploying Dominion PX-3000 Series Inline Meters in a data center environment, IT administrators and facilities managers enjoy a number of important benefits, including: Saving power and money Efficiently utilizing power resources Making informed capacity planning decisions Improving uptime and staff productivity Taking a step towards becoming a greener data center.
Features:
- Web-Based Power Monitoring Real-time remote circuit-level/line-level power monitoring
- Integrates with Power IQ DCIM Monitoring Software
- Support for plug-and-play environmental sensors
- Advanced Alerts
-Add intelligent power monitoring to your dumb PDU's
-Remote power monitoring and metering of current (amps), voltage, power (kVA, kW) and energy consumption (kWh)
- Capable of ISO / IEC +/– 1% billing grade accuracy
-Environment probe/sensor ready
- Ethernet and serial access
- Alerts via SNMP, e-mail and syslog when thresholds are exceeded
-Supports HTTP, HTTPS, SSH, Telnetand SNMP
-Advanced authorization options, including permissions and LDAP/S, RADIUS and Active Directory®
- 256-bit AES encryption and
strong passwords
- 1U rack-mountable form factor
- Compatible with Raritan’s Power IQ™ energy management software
- Energy Metering Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
- Metering Accuracy ISO/IEC 62053-21 1%
- Metering per Input Line Yes
- Metering per Branch Circuit -Breaker Yes
- Metering per Output Receptacle Yes
- Remote Outlet Switching No
- Environmental Sensor Ready Yes
- Networking 10/100 BaseT Ethernet. Optional WiFi (802.11a/b/g/n)
- Remote Management HTTP(s); SSH; Telnet; RS-232 (Serial); Power IQ; SNMP version v2/v3; SMTP; JSON-RPC
- Cascading Yes
Max 8 PDUs can be daisy chained using a single Ethernet connection
Onboard Display User-selectable display (voltage, current, or active power:per line, per breaker, or per receptacle)
- Compatible Sensors
- Temperature, Humidity, Air -Flow, Static Pressure
- Single cable connection provides temp/humidity monitoring at three points in cabinet (with a single sensor assembly)

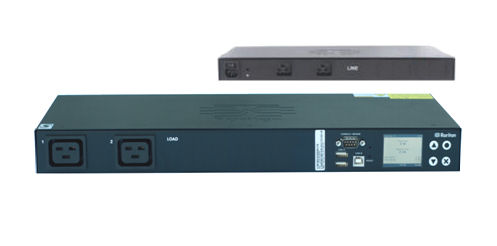

PX3-3211 Front and Rear View
Specification:
PX3-3211 - Raritan Inline Meter: 1PH, 100-240V AC, 16A, 2 lines, Input Type: 2x IEC C-20, Output Type: 2x IEC C-19, 1U, Ethernet, Serial, 2x USB-A, USB-B and Sensor Connections
(PX-3000 Series)
BTO - (BUILT TO ORDER)
INPUT
Input Plug IEC 60320 C20 16A 2P3W (L1/L2/E)
IP44("splashproof") (230V, Single phase)
Cord Length 3 meters (9.84 feet) standard
Cord Entry Rear feed
Cable Type 2P 3W
Number of Power Cords 2
Maximum Input Current 16A (per line)
Nominal Input Voltage 230V, Single phase
Rated Input Voltage 100 - 240V, Single phase
Input Frequency 50/60Hz
Power Capacity 0.0kVA at 100V, 0.0kVA at 240V
OUTPUT
Nominal Output Voltage 230V
Rated Output Voltage 100 - 240V
Output Connections (2) IEC 60320 C19 2-pole, 3-wire; 16A
Overload Protection N/A
PHYSICAL
Unit Dimensions (W x D x H) 17.3" x 7.2" x 1.7" ; 440mm x 183mm x 44mm
Shipping Dimensions (W x D x H) 17.2" x 13.98" x 22.83" ; 437mm x 355mm x 580mm
Color Black powder coat
Mounting Tool-less button mount
ENVIRONMENTAL
Operating Environment 5 - 60°C (41 - 140°F)
Operating Relative Humidity 5-85%
Operating Elevation 0-10000ft
CONFORMANCE
Regulatory Approvals
CE: Canada ICES-003, Class A Part 15 Class A of the FCC rules, RoHS compliant
