PDU-H-C13-16-C20 16 Way Horizontal C13 Socket PDU to C20 Plug

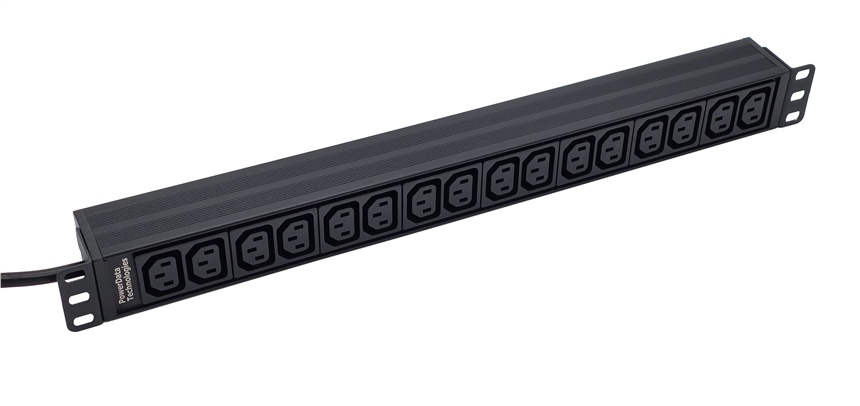

General Picture of PDU-Horizontal with C13 Sockets
Actual model will be similar style but with more or less outlets

Description:

Horizontal IEC PDU. 19" Rack fit Horizontal for server and data cabinets Power Distribution Units (PDUs) are units which are mounted into a rack cabinet, to provide power for any equipment. These horizontal PDUs are 1.5U in height, and are built using a tough aluminium extrusion. All PDUs have a 3m power lead as standard, with the stated supply connector fitted. C20 Feed plug fitted. Regularly used with UPS systems. The power supply from a UPS Output should limit the maximum supply to the maximum 16 Amps. A switch cover and shrouded switch prevent the accidentally turned on or off of the PDU

Features:

PDU-H-C13-16-C14

16 Way Horizontal C13 Socket PDU with input C20 Plug

Input Connector C20 Plug 16 Amp rated

Specification:

PDU-H-C13-16-C14 16 Way Horizontal C13 Socket PDU with input C20 Plug

Horizontal IEC PDUs,
19" Rack fit Horizontal for server and data cabinets
16 x IEC C13 Outlets
19"
Aluminium
Switched
C20 Feed 16 AMP Rated


The power supply from a UPS Output should limit the maximum supply to the maximum 16 Amps A switch cover and shrouded switch prevent the accidentally turned on or off of the PDU.

The supply input should always be limited to 16 Amps Supply Horizontal IEC PDUs,
19" Rack fit Horizontal suitable for server and data cabinets

19"
Aluminium
