KN2116VA - Aten - 1-Local/2-Remote Access 16-Port Cat 5 KVM over IP Switch with VM & Panel Array Mode, 1920 x 1200 (KN Range)

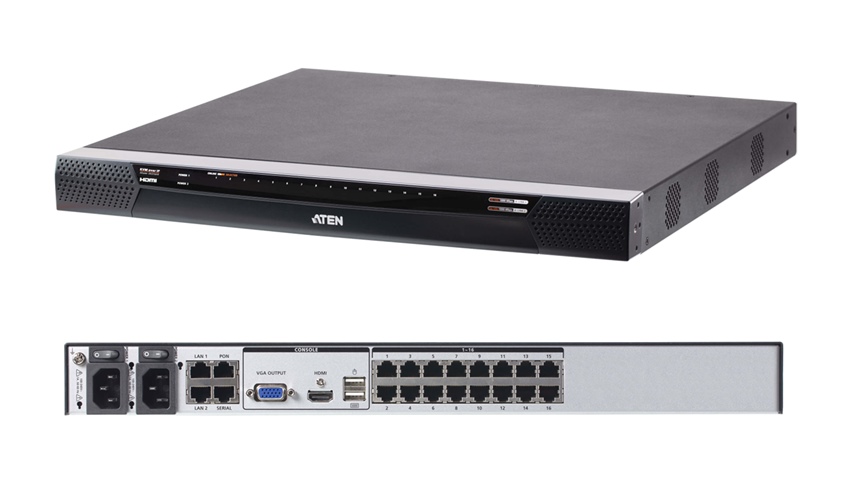

KN2116VA - FRONT & REAR
FOR LATEST PRICE DEALS & SPA DISCOUNT - CONTACT SALES.
Description:
ATENs 4th generation of KVM over IP switches exceed expectations. The KN2116VA features superior video quality (Full HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOSlevel troubleshooting when the network is down. New KN Series Exclusive: High grade security supports FIPS 140-2 level 1 security standards Extreme virtual media speed 2 x faster virtual media transmission speed Advanced FPGA graphics processor with an Full HD resolutions of 1920 x 1200 With dual on-board NICs and dual power supplies, the KN series are built for reliability, to ensure 24/7 availability of remote access to all servers. KN series devices can be integrated into the CC2000 Management Software. The CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world allowing IT administrators to remotely monitor and control all devices on a network, including blade servers and virtual machines. To help you manage and control an entire data center, ATEN KVM over IP switches support blade servers and chassis. With powerful features such as Power Association KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches user interface. Additional exclusive features of ATEN KVM over IP switches include: a Message Board, Panel Array Mode, Mouse DynaSync and the Adapter ID. ATEN KVM over IP switches save you time and money by allowing administrators to manage their data centers from practically anywhere minimizing travel and MTTR (Mean Time to Repair) costs, ensuring the highest availability for data center services possible.
Features:
Exclusive KN Series Features
High-Grade Security supports FIPS 140-2 level 1 security standards
Advanced FPGA graphics processor with Full HD resolutions up to 1920 x 1200
2x faster virtual media transmission speeds
Simultaneously share one local console and two independent connections to servers
Hardware
High Port Density RJ-45 connectors for up to 40 ports in 1U housing
Laptop USB Console (LUC) a dedicated USB port directly connects to a laptop for easy console operation
Two separate buses for remote KVM over IP access
Two 10/100/1000 Mbps NICs for redundant LAN or dual IP operation
Blade server support
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Local console provides USB keyboard and mouse support
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Audio enabled
Dual Power Supply
High video resolution up to 1920 x 1200 @ 60Hz (50m) with 24-bit color depth at the switchs local console and on remote session displays
Monitor and control up to 40 computers on a single level or control up to 512 computers in a cascade*
*Cascade-compatible KVM switches include the following: CS9134, CS9138, KH1508A and KH1516A.
Management
Up to 64 user accounts
Up to 32 concurrent logins
Green IT Fan speed varies according to temperature
Event logging and Windows-based Log Server support
Critical system event notification via SMTP email; SNMP trap and Syslog support
Customizable events notification
Firmware upgradeable
Adapter ID Function stores port information, allowing administrators to relocate servers to different ports without having to re-configure adapters or switches
Port Share Mode allows multiple users to gain access to a server simultaneously
Supported by ATEN's CC2000 Management Software
IPv6 capable
Easy-to-Use Interface
ATEN Exclusive Panel ArrayTM Mode monitor all ports in a grid display of all desktops at both the local and remote screen
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera and Netscape
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software
Launch multiple virtual remote desktop sessions to control multiple servers at the same time
Fullscreen or scalable virtual remote desktop window
Keyboard/Mouse Broadcast keyboard and mouse signals can be duplicated across all servers at once
Video syncing with the local console local console monitors EDID information stored on the KVM Adapter Cables for display resolution optimization
Advanced Security
Remote authentication support: RADIUS, LDAP, LDAPS and Microsoft Active Directory
Supports TLS 1.2 encryption and RSA 2048-bit certificates to secure browser logins
Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4 or Random for independent Keyboard/Mouse, video and virtual media data encryption
Supports IP/MAC address filtering
Configurable user and group permissions for server access and control
Automated CSR creation utility and third-party CA certificate authentication
Virtual Media
Virtual media enables applications, OS patching, software installations and diagnostic testing
Works with USB-enabled servers at the operating system and BIOS level
Supports DVD/CD drives, USB mass storage devices, hard drives and ISO images
Virtual Remote Desktop
Video quality can be adjusted to optimize data transfer speeds; monochrome color depth, threshold and noise settings reduce data transmission to lower bandwidth
Fullscreen or scalable window for desktop sessions
Message Board for communication among remote users
Mouse DynaSync automatically synchronizes the local and remote mouse movements
Exit Macro support
On-screen keyboard with multi-language support
BIOS-level access for troubleshooting
KN2116VA - DIAGRAM
Specification:
Package Contents
1x KN2116VA KVM over IP Switch
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
2x Power Cords
1x Mounting Kit
2x Lok-U-Plugs
1x Lok-U-Plug Installation Tool
1x Foot Pad Set (4 pcs.)
1x User Instructions
1-Local / 2-Remote access
16-Port KVM over IP Switch with Dual Power/LAN
Console Connections
Local 1
Remote 2
Computer Connections
Direct 16
Maximum 512 (via Cascade)
Port Selection Pushbuttons, Hotkeys, GUI
Connectors
Console Ports 2 x USB Type-A Female (White)
1 x DVI-D Female (White)
1 x VGA HDB-15 (Blue)
1 x RJ-45 Female (Black)
USB Port 3 x USB Type-A Female
Audio 2 x Audio Jack Female
Laptop USB Console (LUC) Port 1 x USB Mini-B Female
KVM Ports 16 x RJ-45 Female
Serial 1 x RJ-45 Female
PON 1 x RJ-45 Female
LAN Ports 2 x RJ-45 Female
Power 2 x IEC 60320/C14
Switches
Port Selection 2 x Pushbuttons
Reset 1 x Semi-recessed Pushbutton
Power 2 x Rocker Switches
LEDs
Online / Selected 16 (Green/Orange)
Link 10 / 100 / 1000 Mbps 2 (Red/Orange/Green)
Power 2 (Blue)
Emulation
Keyboard / Mouse PS/2; USB
Video
Local 1920 x 1200 @ 60Hz
Remote 1920 x 1200 @ 60Hz
Scan Interval 1 255 Sec
Maximum Input Power Rating 100240V~ ; 50-60Hz; 1A
Power Consumption 110V/17.67W; 220V/17.93W (per input
Environmental
Operating Temperature 0 - 40˚C
Storage Temperature -20 - 60˚C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing - Metal
Weight TBD
Dimensions (L x W x H) -TBD
Note - For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
