KA7120 - Aten - PS/2 VGA KVM Adapter with Composite Video Support (KA Range)
KA7120
Description:
The KA7120 PS/2 KVM Adapter Cable connects the KVM switch to the video and PS/2 mouse and keyboard ports of the target computer. With its small form factor and light weight design, it represents the next generation of PS/2 KVM Adapter Cables - offering superior signal compensation and delay skew techniques for greatly enhanced video quality.
Features:
• Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
• Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
• Lifetime firmware upgrades
• Superior video quality - supports resolution of up to 1600 x 1200 within the distance of up to 50m
• Built in ASIC for greater reliability and compatibility
• CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (PC)
• Compact size
*1680 x 1050 (Reduced blanking) and 1920 x 1200 (Reduced blanking) not supported by KA7xxxx KVM Adapter Cables

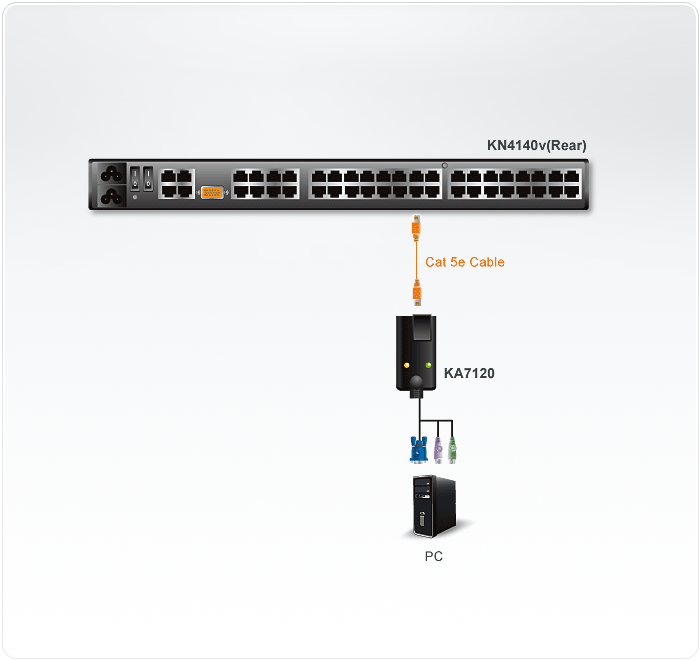

SETUP:
Specification:
Package Contents
1x KVM Adapter Cable
1x Rack Mount Kit
1x Rack Mounting Guide
PS/2 KVM Adapter
Connectors
Link - 1 x RJ-45 Female
Computer - 2 x Min Din 6 Male
1 x HDB-15 Male
LEDs
Online 1 (Green)
Power 1 (Orange)
Physical Properties
Housing - Plastic
Weight 0.15 kg ( 0.33 lb )
Dimensions (L x W x H) - 9.00 x 4.30 x 2.18 cm (3.54 x 1.69 x 0.86 in.)
Note - For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
