AS-4CR - ADDER - Secure Card Reader, 4 Port Isolated, CAC, NIAP PP 4.0 *NEW*

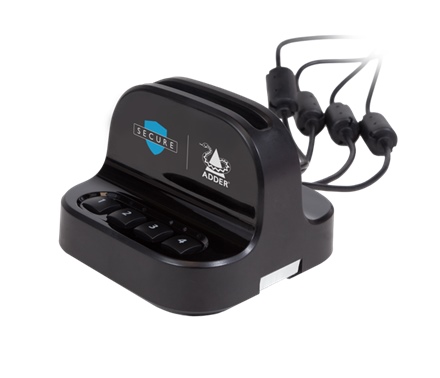

ADDER Secure Card Reader

Description:

The ADDER Secure Card Reader enables a single user smart-card to simultaneously authenticate with up to 4 isolated computers, as well as allowing users to stay logged-in on a CAC designated network whilst seamlessly switching between other networks. In time-critical situations, the secure Card Reader allows simultaneous authentication with up to four isolated computers - without the need to re-authenticate at the point of switching.

Features:

• No Switching Re-Authentication: When used with a KVM Switch,
• Removes the need to re-authenticate when the user switches channels.
• Auto-Disassociation: Immediately disassociates from all coupled computers with card removed.
• Secure: No card or user data is accessible to the Reader. No data can pass between computers.
• Industry Recognised: NIAP Protection Profile 4.0 Compliant.
• Transparent operation: Source PCs are unaware of their peers and work seamlessly with smartcard.
• Tamper Proof Design: Physical casing, anti-tamper sensors and holographic labels.
• ISO7816 compliant: May be used with compatible smart cards and authentication applications. Uses standard smartcard reader chips from Identive (formerly SCM) and USB CCID drivers.

ADDER Secure Card Reader (Diagram)

Specification:

Approvals / Compliance

ISO7816
CE, UL and cUL, Saftey BSEN60950 / EN60950
See the compliance section for the full list

Standards

Windows OS, XP version and above, Linux and Mac operating systems.

Environmental

Operating temperature: 0 to 40C / 32 to 104F
Storage temperature: -20c to 60c (-4F to 140F)
Operating humidity: -20 to 80% non-condensing
Storage humidity: -10 to 90% non-condensing

Mechanical

Sealed plastic design:
175mm/7.0" (w), 33mm/1.34" (h), 60mm/2.5" (d)
0.5kg/1.1lbs

Power

100 - 240V AC, 47-63Hz
12V DC 5W output from power supply unit
