VP1920 - Aten - HDMI, DisplayPort, 9x2, 4K Presentation Matrix (AV Presentation Switch) *NEW*
VP1920 (3-in-1 presentation switch)
Description:
The ATEN VP1920 is a 3-in-1 presentation switch that integrates a video matrix switch, an audio processor, and analog-to-digital converter functions. With nine multi-format inputs to two HDMI 4K outputs, it is designed to boost the efficiency and impact of professional presentations. With streamlined control from front panel pushbuttons, IR remote controller, OSD, and RS-232, the VP1920 reduces not only system device count, but also lower operation complexity. It is suitable for all small-to-medium sized corporate and education presentation environments, such as meeting rooms, classrooms, training rooms, or any other presentation setting, such as in exhibitions or hotels...
Features:
• Multi-format AV Switching with Simplicity
o Supports multi-format 9 Inputs and 2 HDMI outputs:
- 3 combo inputs (HDMI/VGA, HDMI/DisplayPort, HDMI/AV/YPbPr)
- 3 HDMI inputs
- 2 HDMI outputs
o VGA port supports universal analog input formats (RGBHV/RGBs/YCbCr/YPbPr)
o Embed/De-embed Audio–HDMI/DisplayPort audio signals can be extracted to digital/analog audio signals; stereo / composite/component audio can be embedded to digital audio signals
• High-definition Video with Optimum Output
o Superior video quality up to 4096 x 2160@60Hz (4:2:0) / 4096 x 2160@30Hz (4:4:4) (HDMI/DP)
o EDID Expert™ - automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
o HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
• Versatile, Streamlined Operation
o Multiple control methods via front-panel pushbuttons, RS-232, OSD, and IR remote
o Source preview - quickly identify and switch to the target content
o Selectable display modes (Matrix, Mirror, or PiP) for different presentation demands
o Auto switching – automatically detects and switches to a new source as soon as it is connected for time-saving and convenience
o Supports stand-by mode for power saving and fast waking up
• Extended Flexibility for USB Peripherals
o USB ports enable keyboard/mouse or touch panel control over the connected computers
o Control focus for keyboard/mouse and USB peripherals can be individually switched to a designated computer source

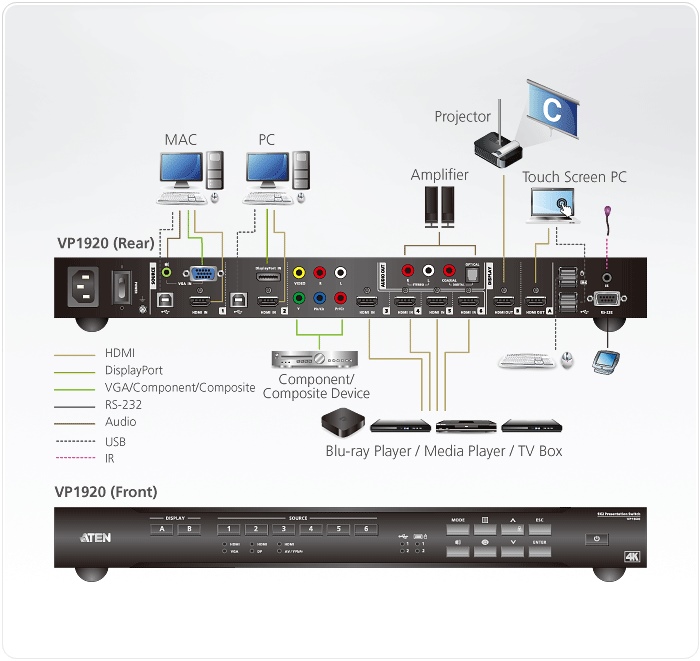

DIAGRAM pmkd524
Specification:
Package Contents
1x VP1920 9 x 2 Presentation Matrix Switch
1x Power Cord
1x IR Receiver
1x IR Remote Control
1x User Instructions
Video Input
Interfaces 6 x HDMI Type A female (Black)
1 x DP Female (Black)
1 x HDB-15 Female (Blue)
1 x Component (3x RCA female, Blue/Green/Red)
1 x Composite (1x RCA female, Yellow)
Video Output
Interfaces 2 x HDMI Type A female (Black)
Max. Distance Up to 15m
Video
Max. Resolution HDMI/DP: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
VGA/Analog: Up to 1920x1200@60Hz
Compliance HDMI (3D, Deep Color, 4K)
HDMI/DP: HDCP 1.4 Compatible; Consumer Electronics Control (CEC)
Audio
Input Stereo Audio: 1 x mini stereo Jack female (Green)
Composite/Component Audio: 2 x RCA female (Red/White)
Output Optical Audio: 1 x Toslink (Black)
Coaxial Audio: 1 x RCA female (Orange)
Stereo Audio: 2 x RCA female (White / Red)
Connectors
Computers 2 x USB Type B Female (White)
Console Ports Keyboard/Mouse: 2 x USB Type A Female (White)
Device: 2 x USB Type A Female (White)
Power 1 x 3-prong AC Socket
Control
RS-232 1 x DB 9 female (Black)
IR 1 x Mini Stereo Jack Female (Black)
Switches
Power: 1 x Pushbutton / 1 x Rocker
Video Input Port Selection 6 x Pushbutton
Video Output Port Selection 2 x Pushbutton
Selection Mode: 1 x Pushbutton
Menu: 1 x Pushbutton
Up (Unlock): 1 x Pushbutton
Esc: 1 x Pushbutton
Audio: 1 x Pushbutton
Preview: 1 x Pushbutton
Down: 1 x Pushbutton
Enter: 1 x Pushbutton
LEDs
Video Source 1: HDMI/VGA: 2(Green)
Source 2: HDMI/DP: 2(Green)
Source 3: HDMI/AV/YPbPr: 2(Green)
USB Link Keyboard/Mouse: 2 (Amber)
Device: 2 (Amber)
EDID Settings EDID Mode: Default / Port 1 / Remix
Power
Maximum Input Power Rating 100-240 VAC; 50-60Hz; 1.0A
Power Consumption AC110V:7.3W:60BTU
AC220V:7.3W:60BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 2.36 kg ( 5.2 lb )
Dimensions (L x W x H) 43.72 x 16.36 x 4.40 cm
(17.21 x 6.44 x 1.73 in.)
Carton Lot 1 pc
Note - For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
