Description:

The ATEN CL3108 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions. The CL3108 can control up to 8 computers; when 8 additional KVM switches are cascaded, a single CL3108 LCD KVM Switch can control up to 128 computers. To achieve greater operational efficiency, the CL3108 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users. To enhance information safety, the CL3108 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3108 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse. As a feature-rich LCD KVM Switch, the CL3108 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and thus is ideal for control rooms with limited space in any industry.

Features:

Space Utility Optimisation

o Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
o Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
o Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
o Console lock – enables the console drawer to remain securely locked away in position when not in use

Reliability and Operational Versatility

o Superior video quality - up to 1366 x 768 @60Hz; DDC2B
o Cascade up to 2 levels – CL3108 controls up to 128 computers from a single console (With compatible KVM Switches: CS1308/CS1316)
o Dual Interface – supports computers with PS/2 or USB keyboards and mice
o Auto PS/2 and USB interface detection
o Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere
o Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
o Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
o Two level password security – only authorized users can view and control computers
o Auto Scan mode – enables continuous monitoring of user-selected computers
o Keyboard Language supports: English (UK), English (US), German (GER.), German (SWISS.), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
o Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse

Installation Flexibility

o Standard rack mount kit included
o Optional Easy Installation Rack Mounting Kit available*
o No software required
o Firmware upgradable
o Supports hot-plugging

*The Easy Installation Rack Mounting Kit is sold separately. Contact your ATEN dealer for product information.

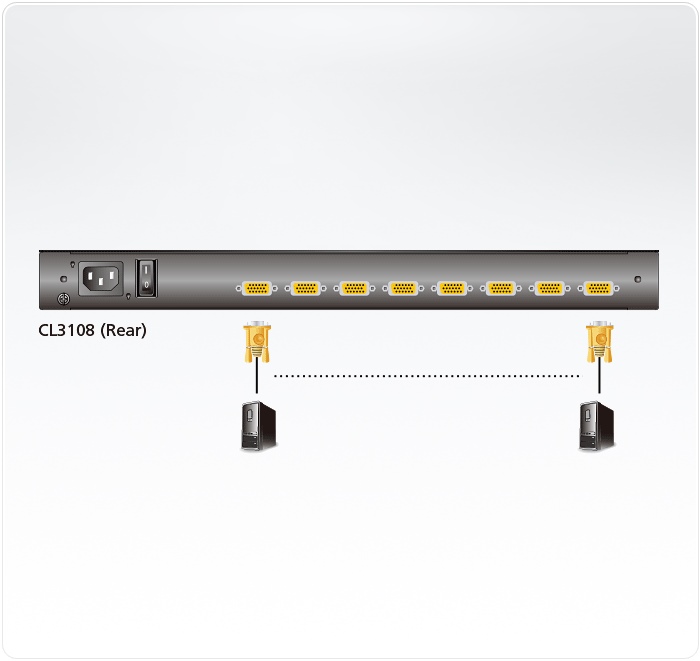

DIAGRAM

Specification:

Package Contents

1x CL3108 LCD KVM Switch with Standard Rack Mounting Kit
2x Custom KVM Cables (VGA, USB; 1.8m/6ft)
1x Firmware Upgrade Cable
1x Power Cord
1x User Instructions

Function: CL3108NX

Computer Connections

Direct 8
Maximum 128 (via Cascade)
Port Selection OSD, Hotkeys, Pushbuttons

Connectors

KVM Ports 8 x SPHD-18 Female (Yellow)
USB Port 1 x USB Type A Female
Firmware Upgrade 1 x 3.5mm Audio Jack Female (Black)
Power 1 x 3-prong AC Socket

Switches

Reset 1 x Semi-recessed Pushbutton
Power 1x Rocker
Firmware Upgrade 1 x Slide
LCD Control 4 x Pushbutton
LCD On/Off 1 x Pushbutton
Ports 8 x Pushbutton

LEDs

Online 8 (Orange)
Selected 8 (Green)
Power 1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)

Emulation

Keyboard / Mouse PS/2, USB

Video

Input Video Resolution 1920 x 1200 @ 60 Hz
Panel Spec
LCD Module 18.5" TFT-LCD
Resolution 1366 x 768 @ 60 Hz
Response time 5 ms
Viewing Angle 170° (H), 160° (V)
Pixel Pitch 0.3 mm x 0.3 mm
Support Color 16.7M colors
Contrast Ratio 1000 : 1
Luminance 250 cd/m²
Scan Interval 1-255 seconds

Power

Maximum Input Power Rating 100–240 V AC, 50-60 Hz, 1 A
Power Consumption AC110V:14.1W:70BTU / AC220V:14.9W:74BTU

Environmental

Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0 - 80% RH, Non-condensing

Physical Properties

Housing Metal + Plastic
Weight 10.50 kg ( 23.13 lb )
Dimensions (L x W x H) 48.06 x 63.17 x 4.28 cm (18.92 x 24.87 x 1.69 in.)
Body Dimensions(L x W x H) 44.92 x 58.4 x 4.28 cm (17.69 x 22.99 x 1.69 in.)

Note - For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Click here for further information
