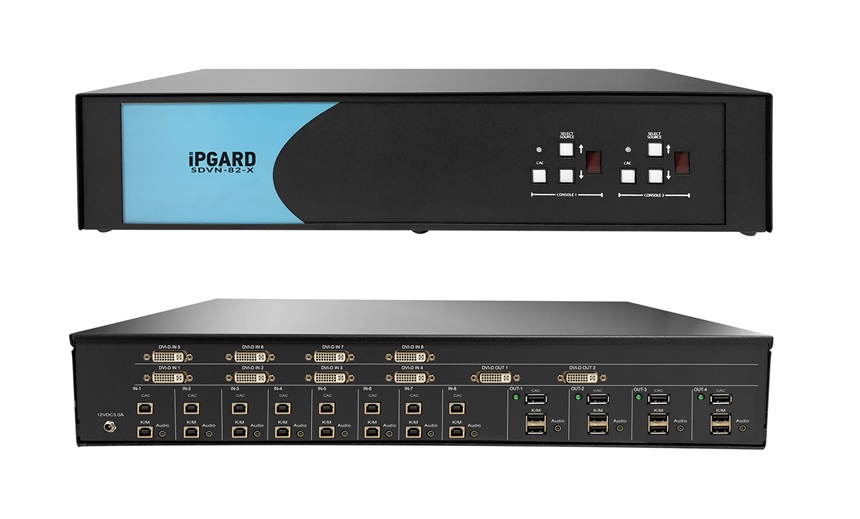

SmartAVI SDVN-82-X - Secure Matrix - 8 Port Secure DVI-D Matrix KVM Switch with Audio, KB/Mouse USB Emulation and CAC Support (2 Users)

SDVN-82-X (Secure Matrix)

Description:

The SDVN-82-X allows users to control KVM (Keyboard, Video and Mouse) operation on up to four computers with DVI displays (HDMI or VGA w/ adaptor). It features mechanical, electrical and optical signal isolation to prevent hacking and data leakage in environments where security is paramount. With the SDVN-82-X, all data relays are controlled by inverted signals, shielding connections from outside intrusion by forcing them each to work one at a time. Each port uses its own isolated data channel and each unit features non-reprogrammable ROM to better protect the switch’s functions. Better yet, the SDVN-82-X offers the highest security when accessing classified and public networks over the internet through these isolated connections. By isolating connections between networks, the SDVN-82-X ensures no data is leaked between secure ports and the outside world.The SDVN-82-X has clearly marked front-panel buttons for controlling the device, so securely switching between sources is always simple. For high-grade secure switching made easy, look no further than the SDVN-82-X.

Features:

KEY FEATURES

• Supports Windows, Mac and Linux OS
• Single-head DVI-D video interface
• Supports Balanced speakers output and switching
• Advanced configurable CAC port
• Front panel tactile buttons with LED indicator
• External power supply – Level VI efficiency

SECURITY FEATURES

• Non-reprogrammable ROM
• Active Anti-tamper switches
• Long-life internal Anti-tampering battery
• External tamper-evident seals
• Keyboard, Mouse and Video emulation
• Absolute isolation – No data leakage between ports
• Certified by NIAP, the latest Common
• Criteria (Protection Profile for Peripheral Sharing Switch Version 3.0)

DIAGRAM

Specification:

VIDEO

Format DVI-D
Max. Pixel Clock 248 MHz
Input Interface (8) DVI-D 29-pin
Output Interface (2) DVI-D 29-pin
Resolution 1080p and 4K/30Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
Data Rate 1.65 Gbps

USB K/M

Input Interface (8) USB Type B
Output Interface (2) USB Dual Type A

USB CAC

Input Interface (8) USB Type B
Output Interface (2) USB Dual Type A

AUDIO

Audio Input (8) 3.5mm stereo audio
Audio Output (2) 3.5mm stereo audio

CONTROL

Front Panel Front panel SELECT buttons

PHYSICAL

Power External 100-240 VAC/ 12VDC3A @ 36W
Dimensions 17”W x 3.4”H x 8.4”D
Weight 6.5 lbs

ENVIRONMENTAL

Operating Temp. +32 to +104°F (0 to +40°C)
Storage Temp. -4 to 140°F (-20 to +60°C)
Humidity Up to 80% (no condensation)

CONFERENCE

Approvals: NIAPP PP 3.0, UL, CE, ROHS Compliant
