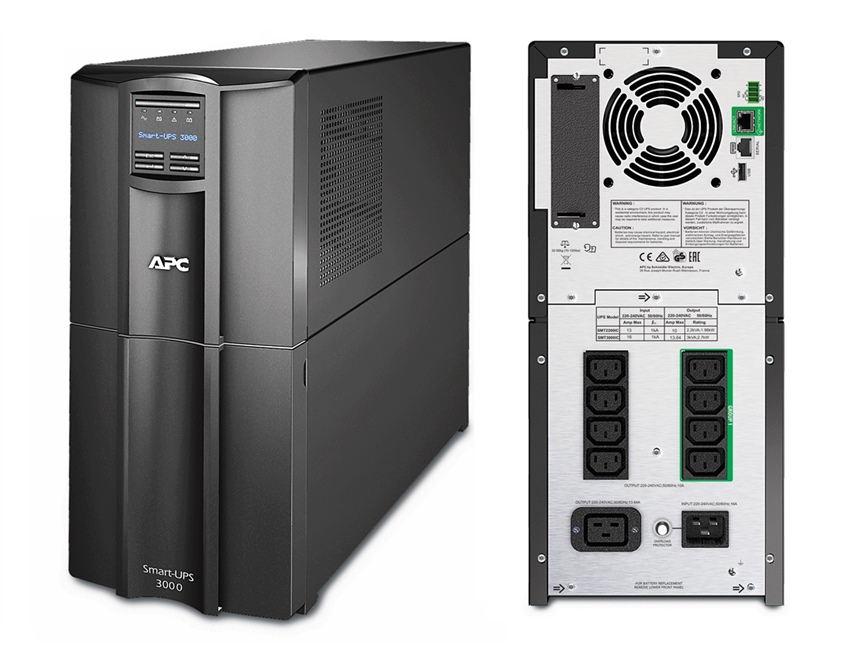

APC-SMT3000IC - Intelligent APC Smart-UPS 3000VA LCD 230V with SmartConnect 3KVA (APC UPS)
SMT3000IC - APC UPS
Description:
APC™ award-winning Smart-UPS™ is the most popular UPS in the world for servers, storage and network power protection. Smart-UPS provides availability and manageability to your network allowing you to focus on business growth instead of business downtime. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power.
Features:
LCD Display: Intuitive interface provides comprehensive status information at a glance
Application optimised models ideal for entry level servers and other small network devices
High-efficiency Greenmode:
• Optimum efficiency which saves utility and cooling costs
Network-grade Power:
• Provides stable power by filtering noise, automatic voltage regulation (AVR) & surge protection
Emergency Power Off (EPO):
• Provides for remote UPS shut-off in the event of a fire or other emergency (2,200 VA and above)
Pure Sinewave:
• Instant backup battery power with pure sinewave output during a power outage
APC SmartConnect:
• Proactive remote UPS cloud monitoring feature that is accessible from any IP connected device
Intelligent Battery Management:
• Temperature compensated charging extends life & advanced algorithms recommend replacement
APC SMART-UPS LCD
Specification:
Models:
SMT750IC SMT1000IC SMT1500IC SMT2200IC SMT3000IC
Output
Power Capacity 500 W/750 VA 700W / 1000VA 1000W / 1500VA 1980 W/2200 VA 2700 W/3000 VA
Nominal output voltage 230 V (conf igurable to 220 or 240 V nominal)
Output f requency 47 - 53 Hz f or 50 Hz nominal; 57 – 63 Hz f or 60 Hz nominal
Wav eform type Sine wav e
Output connections (NEMA) (6) IEC320 C13 (8) IEC 320 C13 (8) IEC320 C13, (1) IEC320 C19
Switched outlet groups - 1
Input
Nominal input voltage 230V
Input v oltage range for main
operations (Max adjustable) 160 – 286V (150 – 300V)
Input f requency 50/60 Hz +/-3 Hz (auto sensing)
Input connection IEC320 C14 IEC320 C20, Schuko CEE7/EU1-16), British BS1363A
Batteries and Runtime
Battery type Maintenance-free sealed lead-acid battery with suspended electrolyte; leak proof
Replacement battery RBC48 RBC6 RBC7 RBC55
Runtime estimates
200W :22 :45 1:24 2:17 2:29
500W :05 :10 :23 :51 :55
700W - :06 :12 :34 :37
1000W - - :07 :21 :23
1400W - - - :13 :14
1600W - - - :10 :12
Full load :05 :06 :07 :07 :06
Communications and management
APC SmartConnect Enabled Yes
Interf ace ports Serial (RJ45), USB, and SmartSlot
Control panel and audible
alarms Alpha-numeric LCD display with LED status indicators; alarm on battery, distinctive low battery alarm and configurable delays
Emergency power off (EPO) Optional Yes
Physical
Maximum height (millimeter) 161 219 219 435 435
Maximum width (millimeter) 138 171 171 197 197
Maximum depth (millimeter) 363 439 439 54.4 54.4
Net weight (kilograms) 13.18 19.5 22.7 48.80 52.50
Conformance
Regulatory RCM, CE, EN62040-1, EN62040-2, EAC, VDE
