IP-AT-120-06-2X0G-32A2M - iPower ATS - Auto Transfer Switch, 2x32 Amp Input to 1 X 32Amp Output - Neutrik unit Connectors with 2 Mtr Adaptor leads to IND309 (ATS)
iPower ATS 32 Amp 2-1 Unit
Description:
IPower IP-AT-120-06-2X0G-32A2M ATS iPower 2x32 Amp Input to 1 X 32Amp Output ( Neutrik unit Connectors with 2 Mtr Adaptor leads to IND309) 19” 1u ATS 32A Case size: 19” 1u 240mm deep Case material: Mild steel Finish: Black powder coat as standard, other colours to order Input: 2x Neutrik 32A (Black) - NAC3MP-HC Output: 1x Neutrik 32A (Grey) -NAC32MP Protection: NA Indicator: Output power present indicator / Feed indicators (green) Select Function: Automatic mode. A Feed. B Feed.
Features:
1U Compact size
Input: 2x Neutrik 32A (Black) - NAC3MP-HC
Output: 1x Neutrik 32A (Grey) -NAC32MP
Supplied with 2 Mtr Adaptor leads:
2 x 32Amp 309 Plug to 32 Amp Neutrik Socket
1 x 32Amp Neutrik Plug to 32Amp IND309 Socket
IND309 - Neutrik power adaptors supplied for ATS

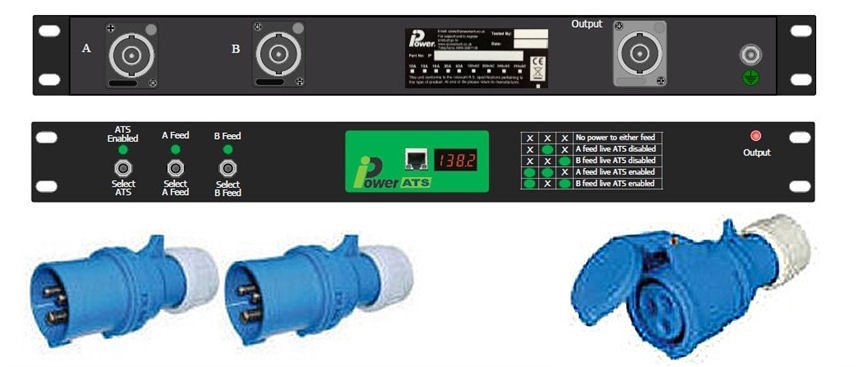

General guideline picture only
Specification:
IPower IP-AT-120-06-2X0G-32A2M ATS iPower 2x32 Amp Input to 1 X 32Amp Output
2 x 32 Amp Neutrik input
1 x Neutrik Output Connector
Supplied with 2 Mtr Adaptor leads:
2 x 32Amp 309 Plug to 32 Amp Neutrik Socket
1 x 32Amp Neutrik Plug to 32Amp IND309 Socket
19” 1u ATS 32A
Case size: 19” 1u 240mm deep
Case material: Mild steel
Finish: Black powder coat as standard, other colours to order
Input: 2x Neutrik 32A (Black) - NAC3MP-HC
Output: 1x Neutrik 32A (Grey) -NAC32MP
Protection: NA
Indicator: Output power present indicator / Feed indicators (green)
Select Function: Automatic mode. A Feed. B Feed.
Earthing: M6 Earth stud to rear.
Rating: 32A @ 240V AC 50/60Hz
Standards: Conforms to BS EN 62368-1:2014+A11:2017
WEEE: Compliant
RoHS: Compliant
CE: Compliant
Opp Temp: -10° to +45°C
Please note: These units are (BTO) built to order non returnable unless faulty. Made for set function only.
