VE170R - Aten - VGA/Audio Cat 5 Receiver (1024 x 768@300m)

VE170R

Description:

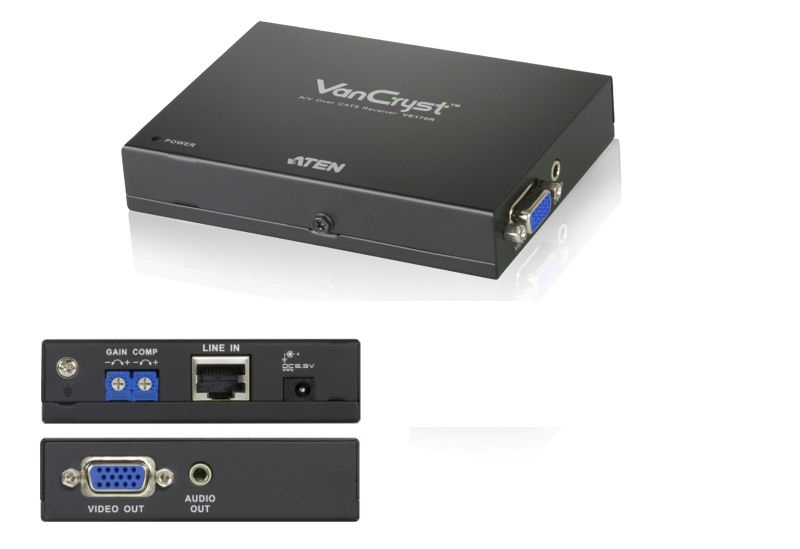

VE170R Aten VGA/Audio Cat 5 Receiver (1024 x 768@300m) The VE170R A/V Over Cat 5 Receiver connects to a transmitter* to extend signals up to 300m from the source using a Cat 5e cable. It is a cost-effective and efficient solution for sending and receiving high quality audio and video content.

Features:

- VGA/Audio Cat 5 Receiver (1024 x 768@300m)-2
- VGA/Audio Cat 5 Receiver (1024 x 768@300m)-3

- Long distance transmission up to 300 m
- Superior video quality -1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (150 m);1024x768@ 60Hz (300 m)
- Adjustable gain/compensation control
Audio enabled (mono)



- Long distance transmission up to 300 m
- Superior video quality -
1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (150 m);1024x768@ 60Hz (300 m)
- Audio enabled (mono)
- Adjustable gain/compensation control
- Built-in 8KV/15KV ESD protection
- Rack-mountable
Complies with VESA FDMI mount standard

VE170R with VE170T setup

Specification:

Video Output
Interfaces 1 x HDB-15 Female (Blue)
Impedance 75 Ω
Max. Distance 1.8 m
Video
Max. Bandwidth 300 MHz
Max. Resolutions / Distance Up to 1920 x 1200@30m; 1600 x 1200@150m; 1024 x 768@300m
Audio
Output 1 x Mini Stereo Jack Female (Green)
Connectors
Power 1 x DC Jack (Black)
Power Consumption DC5.3V:3.32W:16BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
