VW3620 - Aten - 36 x 20 Modular Video Wall Processor, 7U Box, with HDMI 4K Ultra HD (4K@60) 4:4:4, up to 36 inputs, up to 20 displays, Modular Video Wall *NEW*

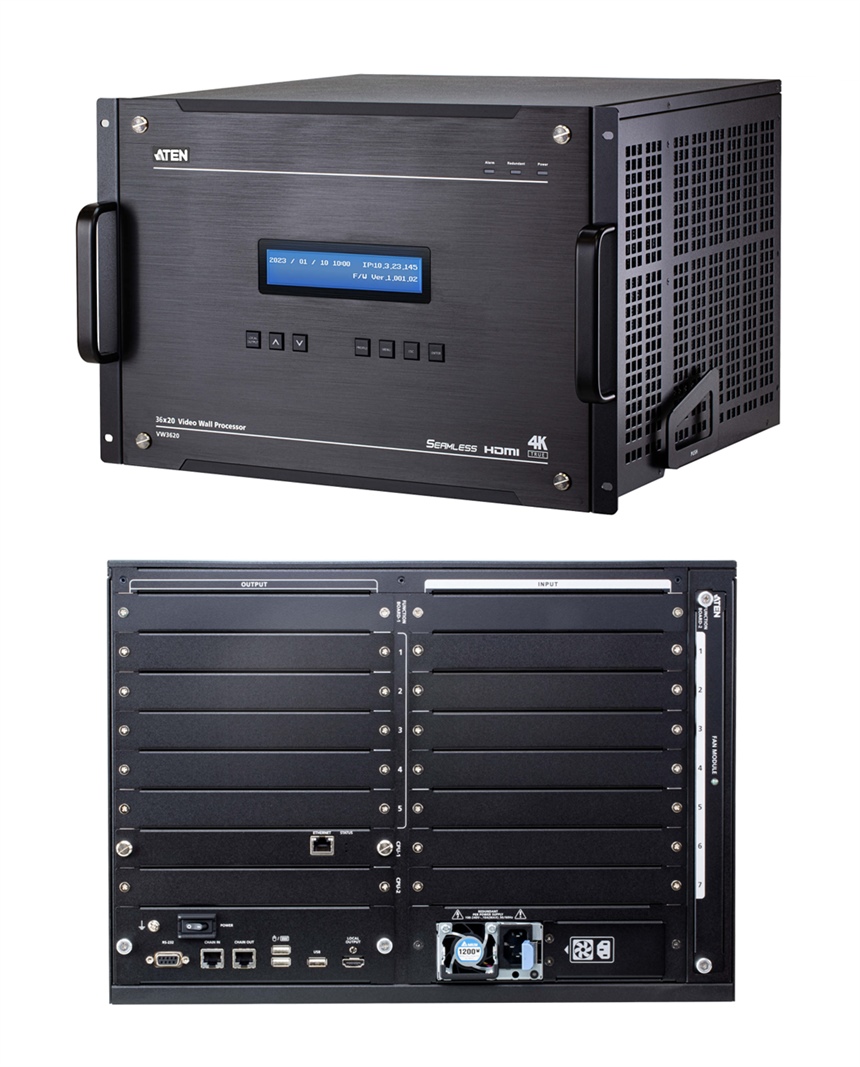

VW3620 - Video Wall Processor
Description:
Purpose-built to meet the increasingly stringent system performance requirements in mission-critical applications, the VW3620 is a 7U, modular 4K video wall processor with 7 input slots, 5 output slots, and 2 function board slots, which also work as input board slots, to support up to 36 input sources and 20 display terminals while being able to handle 4K sources without delay. Advanced 4K@60 4:4:4 scaling technology plus the signal processing capability allow the VW3620 to deliver astonishing, accurate True 4K imagery. The hot-swappable, redundant CPU control board and dual power modules add an extra level of reliability. With input / output cards and cooling fan module also coming hot-swappable, the VW3620 guarantees 24/7 operation and easy maintenance in scenarios where system malfunction or shutdown is unacceptable. Thanks to ATENs cutting-edge windowing technology, the VW3620 supports multiple video walls with varying resolutions. Nearly restriction-free window placement functionality allows source cropping, overlap, and more, displaying a tailored view of every piece of crucial information. Organization logos, color schemes, calendar, clock, and scrolling text can be added to the video walls to widely broaden applications. Moreover, the VW3620 can be configured and controlled via various methods to overcome geographical limitations, from RS‑232, Ethernet, the front panel buttons, web GUI to RESTful API. Integration with ATEN Control System and the 3rd party devices is allowed through its RS-232 and Ethernet interfaces as well as the support for RESTful APIs. The VW3620s unrivalled video wall processing power, configurability and reliability have made it suitable for a range of mission-critical video wall applications, including command centers, control rooms, public security organizations, governments, or other large-scale digital signage scenarios such as exhibitions, broadcasting, and education organizations.
Features:
Processes up to 36 input sources and manages up to 20 displays in any sizes at varying resolutions from a single 7U chassis
Modular construction with 7 input slots, 5 output slots, and 2 function board slots, which also work as input board slots, to meet various expansion needs
FPGA hardware architecture handles 4K input sources, supports near-zero-second seamless source switching, and transmits high quality video streams without delay
True 4K@60 scalability with 4:4:4 signal processing supports custom resolutions and enables upscaling of video signals for crystal clear, accurate imagery regardless of the display size or type from LED, LCD, DLP, to other large screens
Reliable 24/7 operation with hot-swappable, redundant CPU control board and dual power modules, and hotswappable input / output cards and cooling fan module
HDMI (Deep Color, True 4K); HDCP 2.2 compliant
Powerful windowing technology for nearly restriction-free content placement outputs signals in real-time in customizable layouts, such as PiP, PbP, source cropping, overlapping, and spreading across multiple screens, and in any sizes based on the correct aspect ratio
Supports Multiview content source monitoring in 2x2 or 4x4 layouts from a single display
Customizable elements to enhance organization identity and video wall presentation including logos, color schemes, calendar, clock, and scrolling text
Direct control via RS-232 / Ethernet connection and the front panel buttons
Remote control via intuitive Web GUI to preview input signals in real-time and control outputs including content placement and management of up to 4 canvases
Local HDMI output monitoring of video input signals and video wall layouts via Single / Array mode at up to 1080p in real-time from one display
Integration with ATEN Control System and the 3rd party devices via RS 232 / Ethernet / RESTful API
Built-in USB Type-A ports video wall background image change and firmware upgrade
Supports FrameSync avoids image tearing by synchronizing the scaler output frame rate to the input signal frame rate
EDID Expert selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
Perfect for mission-critical video wall applications, including command centers, control rooms, public security organizations, governments, or other large-scale digital signage scenarios
Diagram:
Specification:
Board Input 7 x Slot, up to 32 4K inputs
Board Output 5 x Slot, up to 20 4K outputs
Function 2 x Slots for Function Board, can also used as Input Slot
Video Input
Interfaces Depends on which I/O board is inserted
Video Output
Interfaces Local Output: 1x HDMI Type A Female (Black)
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Serial Control Pin Configurations:
Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd
Baud Rate and Protocol:
Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
Ethernet Connector: 1 x RJ-45 Female
USB 3 x Keyboard (TBD) / Mouse(TBD) /FW upgrade & Storage
EDID Settings EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Communication
Daisy Chain Ports RJ45 x2
Connectors
Power 1 x 3-Prong AC Socket
Power (Optional) Redundancy, Optional Hot Swap PSU
Power
Maximum Input Power Rating 100-240 VAC; 50-60Hz; 10A
Power Consumption AC110V:573.4W:2720BTU/h
AC220V:555.4V:2636BTU/h
Note:
The measurement in Watts indicates the typical power consumption of the device with no external loading.
The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Dimensions (L x W x H) 48.20 x 45.80 x 30.98 cm
(18.98 x 18.03 x 12.2 in.)
Weight 16.21 kg ( 35.7 lb )
Rack Height (U Spaces) 7U
Carton Lot 1 pc
Note:
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
