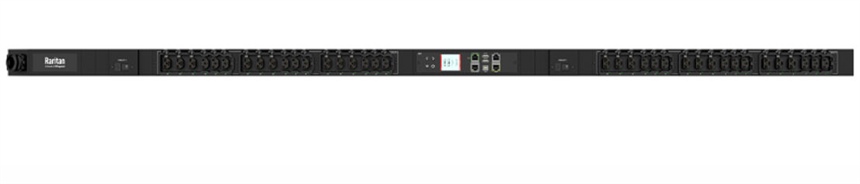

PX4-5057-E7 - Raritan PX4 Intelligent PDU - 18x C13, 18x C19, PX4 PDU with IP Remote Switching and outlet Monitoring, Breakers, Ethernet, wifi, serial, USB-A/B, sensor connections, 36 outlets (PX-5000 Series) *NEW*
1PH - 230v | 7.4kVA | 32A (General PX4 Image)
Description:
The new PX4 builds the Xerus Technology Platform by adding industry-proven outlet technology and a set of ground-breaking intelligence features. This combination delivers unsurpassed outlet and power density, flexibility, reliability, security, and accurate data collection. Outlet Level Monitoring & Outlet Level Switching
Features:
Benefits:
Real-time visibility, reporting, and alerting of power metrics and event
Best-in-class flexibility to meet and anticipate future requirements
Engineered for mission-critical uptime
Unsurpassed outlet and power density
Easy data collection and export to manage energy utilization
Secure encrypted communication, by default, for all PDU data
Features:
Energy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Remote Outlet Switching
Metering per input line
Metering per Branch Circuit Breaker
Environmental Sensor Ready
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
Cascading
Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
Networking
(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Onboard Display
Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation
1PH - 230v | 7.4kVA | 32A
Specification:
Input
Input Plug
IEC 230V/32A 2P+PE 6Hr
Nominal Voltage - 230V
Maximum Input Current - 32A
Rated Input Current 32A
Power Capacity 7.4kVA
Cord Length 3m
Output
Nominal Voltage nullV
Receptacles (Output Connections) (18) C13, (18) Cx
Overload Protection 2
Physical
Dimensions (WxDxH) 56mm x 65mm x 1780mm
Unit Weight 14kg
Shipping Weight 19.62kg
Shipping Dimensions 1940 x 255 x 125 mm
Mounting G4-HOLDER-FOR-ZU
Environmental
Operating Temperature/Environment 60 C
Operating Relative Humidity 85%
Operating Elevation 0-6000ft
Conformance
Regulatory Approvals
Warranty = Standard 2 years manufacturer warranty
