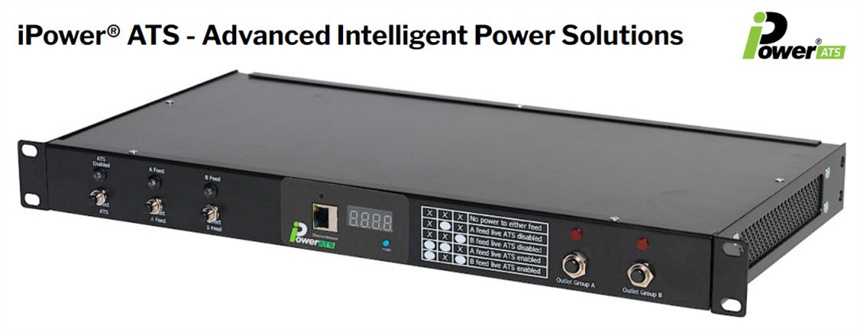

IP-AT-0002-0-0.3A3 iPower ATS - Automatic Transfer Switch, 2x32 Amp Input lines to 6, X 16Amp Output C20 Sockets (ATS )
Description:
iPowerŪ ATS (Automatic Transfer Switch) provides reliable and precise management of primary and secondary AC power feeds for equipment with a single power connection. When connected to separate feeds the ATS provides automatic or manual selection of either maintained incoming single-phase supply. The ATS can be remotely managed using the proven iPowerŪ platform, with clear and precise on board instructions on setting up parameters and creating alerts. From the internal GUI, the user can view and control the selected feed, as well as monitoring the status of the second supply. In addition, the iPowerŪ ATS has a powerful 1% tolerance energy meter providing reports and alarms for a range of energy metrics including: Peak Amps Peak Volts Volts AC Amps AC VA Frequency Watts Power Factor Internal Temperature kWh
Features:
Overall Energy Measurement up to 32A
Highly Accurate Energy Measurement
Set Alerts for all critical metrics
Send Alerts via Email or SNMP Traps
PDU Agent management software available (FOC)
Flexible configuration & implementation
Custom builds available
5 Year Return to Base Warranty
~~
Energy Metrics
iPower REM overall monitored measurement allowing min/max level thresholds to be set for:
RMS Volts, RMS Amps, Kilowatts, Frequency, Power Factor, and Internal Temperature
Additional Metrics include:
Peak Volts, Peak Amps, kVA.
Cumulative (Resettable) Values include:
kWh, Kg/CO2, Energy Cost, kJ/H, BTU/h
Environmental Options Include:
Internal PDU Temp, up to 8 x Temperature Sensors, 1 x Combined Temperature / Humidity Sensor.
~~~
iPowerŪ ATS has an easy-to-use HTML graphical interface, with the ability to set SMS and Email alarms for all critical parameters.
iPowerŪ ATS will work in conjunction with other iPowerŪ products to create a fully flexible monitoring system allowing for individual racks to have switching only, or switching with supply management, rack security and environmental capabilities.
iPowerŪ ATS works in Manual mode, where only one feed is required, or in Fully Automatic. When in Automatic mode, the user retains full control and can select the preferred feed using the web interface.
iPowerŪ ATS is 16A or 32A rated, with a wide choice of input and output configurations.
iPowerŪ ATS meets the industry standard 21ms transfer time, with an exceptionally fast changeover speed of between 8-15ms on both Live and Neutral Conductors.
iPowerŪ ATS is configurable with a choice of inlet and outlet styles, in 1U or 2U rack mounted vented steel enclosure.
Full control of the switching state can be selected from the front panel, with status LEDs to confirm source and load.
Network interface. HTTP, SNMPv2, Alerts via SNMP, and Email, DHCP or Static IP, Speeds up to 100Mbps.
All iPowerŪ products are designed and manufactured in the UK and are fully supported with a 5 year return to base warranty.
Specification:
Technical Specification
Manufactured in accordance with BS EN IEC 62368-1:2020+A11:2020
Input Voltage 220-240V 50/60Hz
Output Voltage 220-240V 50/60Hz
Input Current 16A or 32A
Output Current 16A or 32A
Protection Overcurrent protection on outlets
Switching speed >8mS <15ms L1 plus N Operating Temp: -10° to +45°C
(Has internal temperature monitoring)
WEEE Compliant
RoHS Compliant
CE Compliant
UKCA Compliant
