PX4-2699-E7V2 Raritan 400V, 32A 3-Phase 18xC13, 18xC19 18xCX (L-N), 22.2kVA, PX4 PDU

PX4-2699-E7V2 Raritan PX4 PDU

Description:

Raritan Intelligent PX4 PDU 400V, 3-Phase Wye (L-N), 22.2kVA, 32A Outlets : 18xC13, 18xC19 18xCX The new PX4 builds the Xerus™ Technology Platform by adding industry-proven outlet technology and a set of ground-breaking intelligence features. This combination delivers unsurpassed outlet and power density, flexibility, reliability, security, and accurate data collection. Outlet Level Monitoring & Outlet Level Switching

Features:

60C;10kAIC Breakers;Branch Current Monitoring
Energy Metering

Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

Metering Accuracy

Class 0.5 meter

Metering per input line

Yes

Metering per Branch Circuit Breaker

Yes

Metering per Output Receptacle

Yes

Remote Outlet Switching

Yes

Power Quality Monitoring

Voltage and Current Harmonic Distortion; Distortion Power Factor; Voltage Dip and Voltage Swell; Neutral Current, Current Inrush, Crest Factor

Outlet Power Distribution

Alternating Branch

Replaceable Controller

Yes, hot-swappable

Environmental Sensor Ready

Yes

Compatible Sensors

Temperature, Humidity, Air Flow, Differential Pressure, Dust/Particle, Water Leak, Proximity/Motion, Vibration, Dry Contact, and Contact Closure.

PDU Linking

Link up to 8 PDUs where the Primary PDU has knowledge and power information from the attached Expansion PDUs. Redundant power from the first expansion unit ensures uptime even if the Primary PDU loses power.

Cascading

Physically cascade 32 PDUs under one ethernet port or 16 PDUs with USB using bridging mode, or additionally, save IP addresses using a single IP address with port forwarding.

Linking

Yes, a maximum of 8 PDUs can be linked using the PDU Link Port; PDU 1 is defined as the Primary PDU and can link up to 7 additional PDUs, called Link PDUs, totaling 8 PDUs.

Networking

(10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

Remote Management

HTTP(s); SSH (CLI); Telnet; RS-232 (Serial); SNMP version v2/v3; SMTP; JSON-RPC API; MODBUS-TCP; Redfish API

Onboard Display

Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation.

Specification:

Input

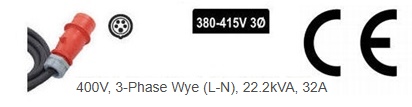

Input Plug - 230/400V Wye 32A IEC 60309 P+N+PE 6Hr

Nominal Voltage- 400V

Maximum Input Current -32A

Rated Input Current -32A

Power Capacity- 22.2kVA

Cord Length - 3m


Output
Receptacles (Output Connections) - (18) C13, (18) C19, (18) Cx

Overload Protection - 6

Physical
Dimensions (WxDxH) - 56mm x 65mm x 1780mm

Unit Weight - 17 lbs

Shipping Weight - 22.27 lbs

Shipping Dimensions - 1940 x 255 x 125 mm

Mounting - G4-HOLDER-FOR-ZU


Environmental
Operating Temperature/Environment - 60 C

Operating Relative Humidity - 85%

Operating Elevation - 0-10000ft

Conformance
Regulatory Approvals

CE

Warranty

Standard 2 years manufacturer warranty

Tender Text/Bid Submittal Text
Vendor: Raritan; Part Number: PX4-2699-E7V2
