ALP-R110T-HM Adder ADDERLink® Portal R110 HDMI KVM Switch, Zero U, IP KVM Access (0U DisplayPort KVM Over IP) *NEW* ALPR110T-HM ( Use with ARDx)

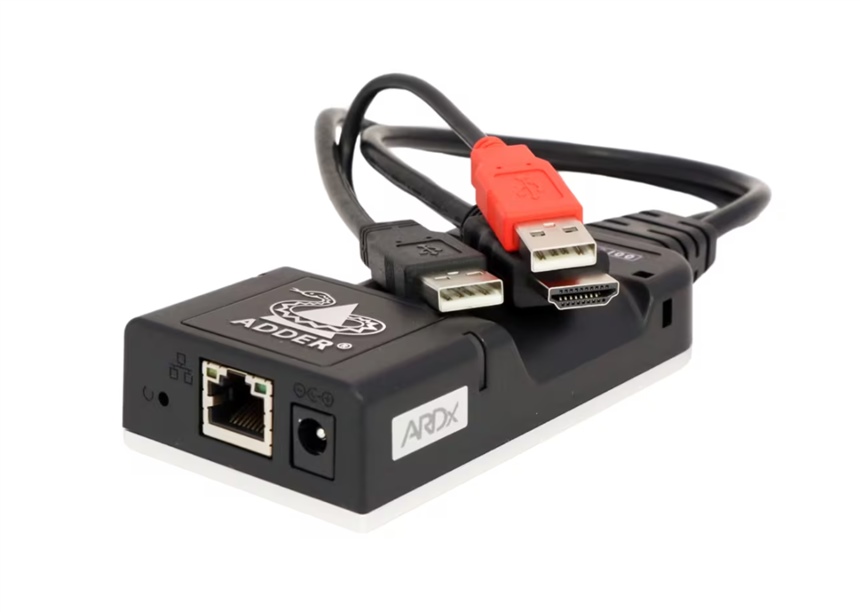

General - DP video version shown.
Description:
KVM HDMI Video over IP that delivers seamless, secure remote PC access and control, and features both HDMI high-quality video and audio. Designed for image critical applications, ADDERLink Portal R110 is an ARDx™ technology enabled, ZeroU™ transmitter that provides secure, low-latency keyboard, video, mouse and audio connectivity via the Internet or a local network.
Features:
Hardware remote KVM
With HDMI video and USB2.0 for keyboard, mouse and other HID devices. Unlike remote access software it operates out-of-band, enabling BIOS control of the target PC during boot and securely separating remote users from the local network.
ARDx Enabled
ADDERLink Portal is ARDx enabled and therefore requires ARDx Viewer (download from the ARDx Viewer product page), which provides a seamless user experience and powerful admin tools for managing connections and users.
High quality audio and video
Experience exceptional media streaming with HD 1920x1080 resolution at ultra-smooth 60Hz frame rates, 4:4:4 accurate color and 16-bit 44.1kHz PCM stereo audio. Fluid motion, pure color and clear text reproduction for image critical applications.
Seamless User Experience
Inherently low latency provides precision control as though you are operating the host PC directly. On a network with suitable capacity, up to eight users can access concurrently without performance degradation.
Highly Secure
Enterprise-grade security ensures your connection is safe. AES-256 encryption and RSA-2048 authentication offer the highest level of protection, trusted by security agencies and financial institutions worldwide.
Network Capability
For critical performance applications, ADDERLink Portal is optimized for use over a Local Area Network (LAN). Wide Area Network (WAN) connectivity for remote internet access can be achieved through a firewall port or Virtual Private Network (VPN).
Simple Installation
The Zero U™ dongle form factor requires no rack space. USB power from the host PC means no bulky power supply or spare wall socket is required although an external supply can be used.
Target any OS
Unlike remote access via software, the ADDERLink Portal can control any PC with a KVM connection, regardless of the Operating System. Advantageous for installations where the OS may be considered legacy, or configuration change is prohibited.
Specification:
Video Information (For 1 Screen)
Additional Video Information
Additional Information HD@60Hz 4:4:4 chroma with dynamic frame-rate back-off under limited bandwidth conditions
Computer Connections
USB A 1× 2.0 True Emulation (HID Only)
Full HDMI 1× 1.2
Link Ports
8p8c (RJ45) 1×
Audio Connections
Audio Type Digital
Channels 2
Audio In Ports 1× USB
Audio Direction Output only
Size (bit) 16
Speed (kHz) 44.1
Additional Information PCM
Network Support
Bandwidth 1GbE
10/100 Support No
Power
Power Source
USB powered 2×
5V 1×
Power Additional Information USB Power: 2 x USB A (2x500mA@5V 5W). External Power: 5Vdc, 1A (LPS)
Power Consumption
Maximum Power (Watts) 5
Typical Power (Watts) 3
Maximum Power (Current) 1
BTU (BTU/hr) 10.2
Physical Design
Construction Material ABS and aluminum construction
U size 0
Width 55mm / 2.2in
Height 25mm / 1in
Depth 110mm / 4.30in
Flying Lead Length 300mm
Weight 0.2kg / 0.4lb
Compatibility
OS Compatibility All known operating systems
Approvals and Standards
Approvals CE, ICES, UKCA
Standards ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, EN63000, FCC pt15B
Other Cal Prop 65, China ROHS, EU REACH, UK REACH
Packing Box
Length 292mm / 11.5in
Width 245mm / 9.6in
Depth 55mm / 2.2in
Weight 0.5kg / 1.1lb
Ordering Information
ALPR110T-DP ADDER
What's in the Box?
1× ADDERLink Portal unit with DP connector
1× Quick Start Guide
