Rittal 3311363 SK Remote Condenser, 20kW, DX

Rittal Remote Condenser 20kW

Description:

The condenser units are necessary for operating refrigerant-based LCPs. Depending on the version, the units have an external condenser and fan, or additionally a free cooler. The variant with free cooler is needed for the combination variant LCP DX/FC. The units are suitable for roof and wall mounting.

Features:

Article number:
SK 3311.363
Design - Condenser

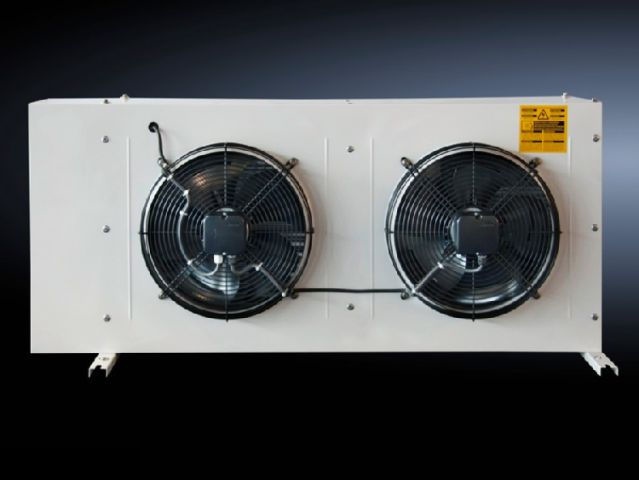

The condenser unit is needed to operate the refrigerant-based LCPs, and comprises the external condenser and two fans whose speed is controlled as a function of the pressure in the cooling circuit.

Max. cooling output 20 kW
Temperature control -Speed-controlled fan
Refrigerant/cooling medium
Refrigerant: R410A
Cooling medium: -

Specification:

Sheet steel, spray-finished
Surface finish
Powder-coated, zinc-plated
Colour
RAL 9003
Supply includes
Base unit
Assembly parts
Max. cooling output
20 kW
Temperature control
Speed-controlled fan
Refrigerant/cooling medium
Refrigerant: R410A
Cooling medium: -
Dimensions
Width: 2,282 mm
Height: 480 mm
Depth: 508 mm

Total cooling output/Number of fan modules
3
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Packs of
1 pc(s).
Net weight
65 kg
Gross weight
113 kg
Customs tariff number
84189910
EAN
4028177716643
ETIM 9
EC002515
ETIM 8
EC002515
ECLASS 8.0
27180712
Product description
Air-cooled condenser for LCP Rack/Inline DX, 20 kW, for roof/wall mounting, power supply: 230 V, 1~, 50/60 Hz, WHD: 2282x510x480 mm, RAL 9003
