PX4-449512R-C8E8 - Raritan - Horizontal 2U PX4 PDU - IP Outlet Monitoring, C13 (x18), Cx (x6) Outlets, IEC60309 30A/32A Input (200-240V), 24A/32A

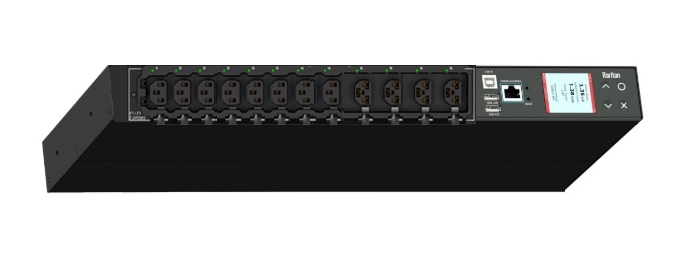

General Guidance Image

Description:

The new PX4 builds the Xerus™ Technology Platform by adding industry-proven outlet technology and a set of ground-breaking intelligence features. This combination delivers unsurpassed outlet and power density, flexibility, reliability, security, and accurate data collection. Outlet Level Monitoring & Outlet Level Switching

Features:

Benefits:

• Real-time visibility, reporting, and alerting of power metrics and event
• Best-in-class flexibility to meet and anticipate future requirements
• Engineered for mission-critical uptime
• Unsurpassed outlet and power density
• Easy data collection and export to manage energy utilization
• Secure encrypted communication, by default, for all PDU data

Features:

Energy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

Metering Accuracy
ISO/IEC 62053-21 1%

Remote Outlet Switching
Metering per input line
Metering per Branch Circuit Breaker
Environmental Sensor Ready

Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.

Cascading
Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.

Networking
(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

Onboard Display
Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation

Single Phase IND309

Specification:
