ATS-H12C13-10A-B_C14 Austin Hughes PDU / ATS 1U IP Metered Horizontal, 12 x C13, 10A, 2x 3m cord with C14 plug, 230V (AH Metered ATS)

Description:

InfraPower Rack ATS - Automatic Transfer Switches (ATS) provide fail-safe power redundancy. A rack ATS has dual input power cords supplying power to the connected load. If the primary power source becomes unavailable, the rack ATS will seamlessly source power from the secondary source without interrupting critical loads. For IT rack-mount devices not designed with power redundancy, InfraPower rack mount Automatic Transfer Switches (or ATS) with dual power inputs provide reliable and redundant power for single-corded equipment.

Features:

ATS Series: Metered (MD)

Local Display 3-digit LEDVolt,


Bank Measurement Amp, kWh & Power Factor

Accuracy ±1% Billing-grade

IP Access Embedded IP with Gigabit Ethernet port
Enterprise IP Authentication, LDAPv3 / LDAPS,
Active Directory®, RADIUS protocol



SNMP V2 / V3 & GUI

Sensor Temp. Sensor / Tem



• Input Switching Locally
• Local Meter Monitoring 3-digit RMS
• Transfer Time 10 – 16ms
• Single Circuit & Dual Circuit Models
• Hydraulic-magnetic Circuit Breaker (MCB)
• Mounting Bracket with Cord Retention Tray Included
• 1-Phase 230V (10A PER INPUT )
Input via 2 x C14 Cables
• 110V / 208V (15A – 30A)
• Outlet Type C13
• Outlet # 10
• Custom ATS on Request

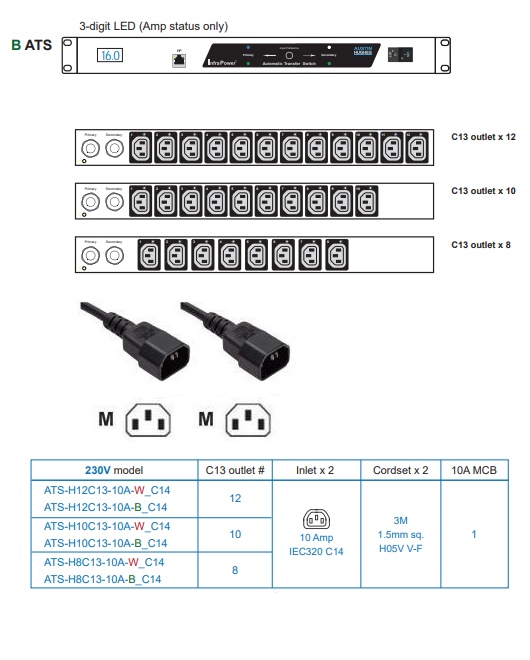

ATS-H12C13-10A-B-C14
And other port offerings

Specification:

Automatic transfer switch
Outlet : 10A Rated C13 x 12



OperatingTemperature-5 to 60 °C
StorageTemperature-25 to 65 °C
OperatingAltitude0 to 2,000 m
Storage
Humidity (non-conde0 to 8 to 95% RH15,000 mnsing)
Chassis Material / ColorSteel / Black
Product Dimension 442W x 300D x 43.5H (mm)
Packing Dimension 500W x 540D x 150H (mm)
Net / Gross Weight5.7 kg / 6.2 kg

Nominal input volt .208V / 230V
Acceptable input volt.±10% nominal
Input frequency 50 / 60Hz
Transfer time10 ms typical
Electrical endurance1 x 105 operations
Power consumption Approx. 20W


Safety Certificates
CE/ LVD
CB
UKCA
UL-US
UL-CA
EN 62368-1:2014, EN 62368-1:2014/A11:2017
IEC 62368-1:2014
BS EN 62368-1:2014+A11: 2017
UL 62368-1, 2nd Ed., Issue Date: 2014-12-01
CSA C22.2 No. 62368-1-14, 2nd Ed., Issue Date: 2014-12-01
:
:
:
:
:
EMC Certificates
FCC
CE / EMC
FCC 47 CFR Part 15 Subpart B, ICES-003 Issue 7
EN55032:2015/A11:2020
EN IEC 61000-3-2:2019/A1:2021
EN61000-3-3:2013/A2:2021
EN55035:2017/A11:2020
:
:
Environment : RoHS, Reach & WEEE




































See document for full Spec:
ON REQUEST
See compatible products for cabling
