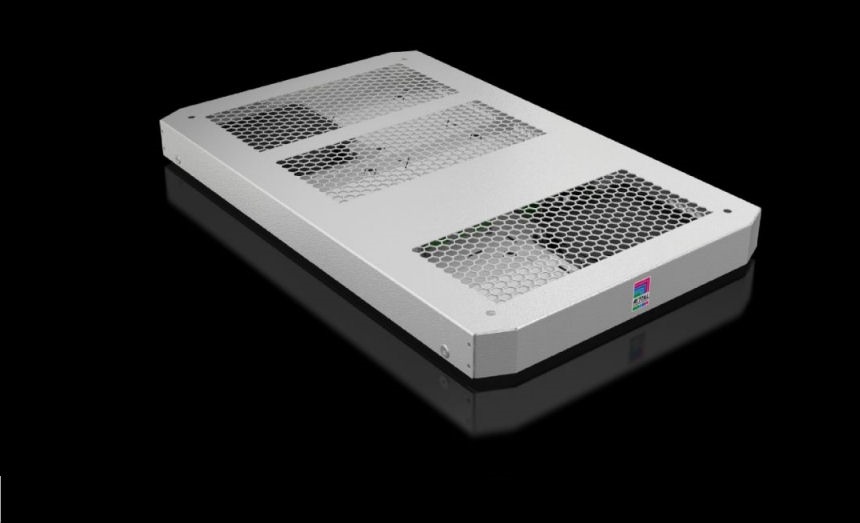

RTL-5503020 Rittal SK Fan Module 100-240V 520-60Hz
Fan module for VX IT, TS IT, TX CableNet (SK 5503.020) RITTAL FAN

5503020 FAN6

Description:

For active ventilation. The unit may optionally be extended with additional fans. Simple connection system and energy-efficient speed control. SK fan module 100-240 V, 50-60Hz Order No. SK 5503.020 Fan module for active ventilation of an enclosure. Use, directly in the cut-out integrated in the roof panel of the dimension WxD 490x260 mm. Applicable e.g. for manufacturer Rittal, enclosure series VX IT, TS IT. Complete unit ready for connection with C 13 cold appliance socket Incl. 2 axial fans with integrated speed controllers (expandable to max. 6 fans), mounting material and installation instructions. Design Without roof plate Product description For active ventilation. The unit may optionally be extended with additional fans.

Features:

Model No. SK 5503.020


Benefits Simple connection system with C13 IEC 320 socket
Energy-efficient speed control with present characteristic curve
International approvals and multi-voltage capability for worldwide
use
Material Sheet steel, spray-finished

Supply includes 1 fan unit
2 fans
Fully wired ready for connection
Assembly parts

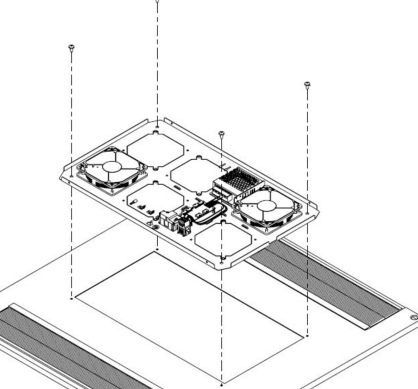

5503020 FAN6 PIC2 INSTAL

Specification:

Model No. SK 5503.020

Supply includes 1 fan unit
2 fans
Fully wired ready for connection
Assembly parts
Installation and Short User's Guide
Air throughput (unimpeded air
fow)
400 m³/h
Air throughput (at operating point) 280 m³/h
Rated operating voltage 100 V - 240 V, 1~, 50 Hz/60 Hz
Rated current max. At 50 Hz: 0.7 A
At 60 Hz: 0.69 A


Technical data:
Rated operating voltage:
100-240 V, 1~, 50/60 Hz
Rated power with 6 fans (max.): 34 W at 50/60 Hz
Rated current with 6 fans (max.) at 50/60 Hz: 0.34 A
Fine-wire fuse T 10 A, 250 V, 5 x 20 mm integrated
Air performance free blowing: 400 m³/h
Air performance at operating point:
280 m³/h at 25 Pa, 50/60 Hz
Sound pressure level at operating point: 46 dB (A)
Operating temperature range:
+5°C to + 55°C
Dimensions WxHxD in mm: 550x42x340 mm
Protection class according to IEC 60529: IP 20
Material: sheet steel, painted
Color: RAL 7035 structure
Order No. SK 5503.020
Manufacturer: Rittal


Pre-fuse Miniature circuit-breaker/fuse: 10 A
Operating temperature range 5 °C...55 °C
Noise level (at operating point) 46 dB(A)
Packs of 1 pc(s).
Weight/pack 3.8 kg
Customs tariff number 84145915
EAN 4028177966246
E-Number Sweden E7238512
ETIM 7.0 EC000320
ECLASS 8.0 27180716
