XD-C650P-DP-UK Adder XD C650 High-Res, Quad-head KVM extender. High-definition video,Full USB 2.0 AV Single Copper or Fibre ( XD 600 Series )

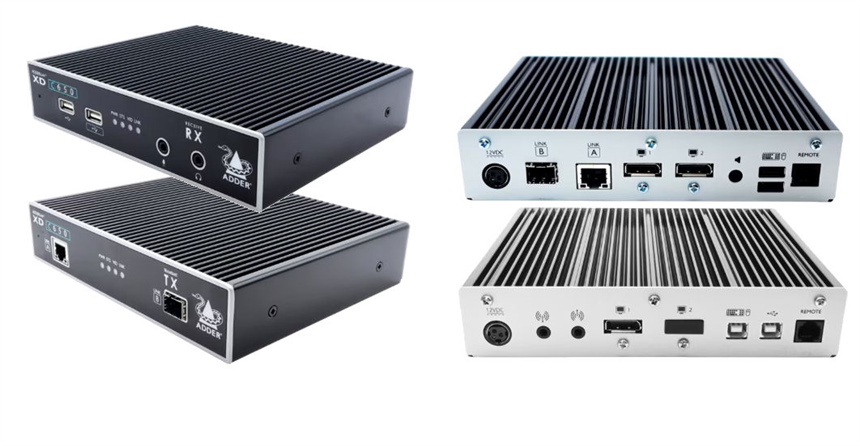

XD-C650 EXTERDER PAIR
Description:
High-resolution/ Quad-head KVM extender. High-definition video, transparent full-speed USB 2.0 and audio are transmitted on a single CATx or fiber cable. A high performance KVMA extender that is designed to provide reliable and real-time access to critical computers while maintaining the same user desktop experience. Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high performance 4K KVM extension for superior functionality and flexibility.
Features:
Quad-Head High-Definition Video
Supports quad-head 1920x1200@60Hz or single head 4096x2160@60Hz (DCI 4K60). Quad-head enabled over a single cable using DisplayPort 1.2 Multi-Stream Transport (MST) technology.
Up to 4km Extension
Up to 4km Extension
Supports both copper and fiber interfaces. Provides a range of up to 100m/328ft over a CAT6 cable link, and up to 4km/2.5 miles over an optical fiber link (Fiber SFP modules sold seperately).
Emulated and Hi-Speed USB 2.0
Emulated and Hi-Speed USB 2.0
USB 2.0 emulation ensures reliable connection of full and low speed HID devices (mouse or keyboard). Mass storage devices and isochronous devices, such as webcams and audio headsets can also be used through the transparent USB 2.0 Hi-Speed port.
Plug and Play
Plug and Play
Uses a low-latency point-to-point protocol over a single CATx or fiber cable that works as soon as it is connected. No network set-up, driver or software is required.
Digital Audio over DisplayPort
Supports two channels of 24-bit, 192kHz sampled PCM audio over the DisplayPort connection.
Analog Audio
Analog Audio
Plug analog line in/out and headphones directly into the receiver. Audio is transmitted as bi-directional stereo 24-bit/96kHz using either an analog or USB connection to the host.
Monitor Flexibility
Monitor Flexibility
EDID management allows the monitor capabilities to be passed back to the host computer for optimum compatability. Additionally, a local monitor may be connected at the transmitter side.
Serial communications
Serial communications
RS232 can be passed between the units to a maximum rate of 115200 baud with RTS/CTS flow control

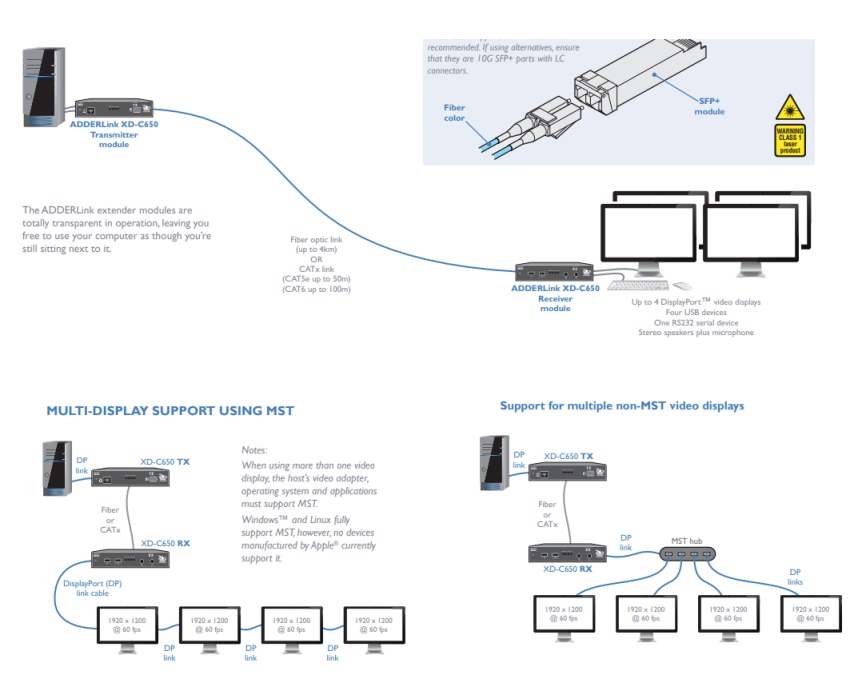

XD C650 EXTERDER SETUP
Specification:
Contents:
1× TX and RX pair
2× Power supply unit with country specific mains cable
1× DisplayPort® cable (VSCD18)
1× USB cable (VSC24)
1× Audio 2m/6ft cable
1× Quick start guide
SPECIFICATIONS:
Video Information (For 1 Screen)
Maximum Resolution 4096 x 2160
Frame Rate 60
Colour Depth 8 bpc
Video Information (For 2 Screens)
Maximum Resolution 2560 x 1600
Frame Rate 60
Colour Depth 8 bpc
Video Information (For 3 Screens)
aximum Resolution 1920 x 1200
Frame Rate 60
Colour Depth 8 bpc
Video Information (For 4 Screens)
Maximum Resolution 1920 x 1200
Frame Rate 60
Colour Depth 8 bpc
Additional Information Supports HD60 Quad-Head or 4K60 Single-Head.
Console Connections
USB A 3× 2.0 True Emulation (HID Only), Full Speed
USB A 1× 2.0 Transparent, Full Speed
Full Size DisplayPort 2× 1.2
Link Ports
8p8c (RJ45) 1×
SFP+ 1×
Serial Ports
Serial Connection 1×
Serial Standard RS232
Maximum Baud Rate 115200
Serial Additional Information With RTS/CTS flow control
Serial Connection Type (console) RJ12 (6p6c)
Audio Type Analog/Digital
Channels 2
Audio In Ports 1× 3.5mm jack
Audio Out Ports 2× 3.5mm jack
Audio Direction Bi-directional
Size (bit) 24
Speed (kHz) 96
Additional Information Also supports 2 channels of 24-bit/192kHz PCM audio over the DisplayPort connection
Network Support
10/100 Support No
Power Source
12V 3-pin 1×
Input Power Supply PSU 18W
Power Additional Information 100-240 VAC, 47/63Hz. 12 VDC 18W output from power supply unit
Construction Material Robust metal construction
Width 186mm / 7.3in
Height 39mm / 1.5in
Depth 148mm / 5.80in
Weight 1.24kg / 2.7lb
Compatibility
OS Compatibility All known operating systems
Code Description
XD-C650P-DP-XX ADDERLink HD quad-head transparent USB2.0 extender
