TX CableNet Network Rack (with side panels)

Description:

TX CableNet – Taking cable management to a new level IT network rack, preconfigured with essential cable routing components, prepared for individual interior installation. IT rack, comprising a torsionally rigid, welded, and symmetrical frame of rolled, 16-fold vertical sections connected with a horizontal frame at the bottom and horizontal cross rails with welded roof plate at the top. All frame sections with integrated system punching in a 25 mm pitch pattern permit convenient interior installation through simple attaching and fastening of the installation components. All section edges are rounded. The vertical frame sections each possess two mounting levels offset in the depth and width directions, which can be used individually for flexible mounting of the components. Enclosures can be bayed to the front and rear, as well as to the sides. Load capacity: up to 500 kg.

Features:

Benefits

New roof plate concept: When cabling, the depth is utilised in full, plus optional integration of a fan module
Efficient frame concept for individual configuration
Side panels, screw-fastened for rapid access
482.6 mm (19") mounting angles, variable in the width and depth, with possibility for asymmetrical interior installation

TX Cablenet

Specification:

TX 7888.618
New version with side panels

Material
Enclosure: Sheet steel
Door: Sheet steel, 1.2 mm
Side panel: Sheet steel, 1.2 mm
482.6 mm (19") mounting angles: Sheet steel, 2 mm
Surface finish
Enclosure frame: Dipcoat-primed
Enclosure panels: Dipcoat-primed, powder-coated

Colour
RAL 7035

Supply includes
Enclosure with glazed front door and rear door
Side panels, screw fastened
482.6 mm (19") mounting angles
Roof plate, screw-fastened, with concealed cable entry at the rear, prepared for fan mounting.
Dimensions
Width: 600 mm
Height: 1,200 mm
Depth: 800 mm
Units
24 U

Distance between levels as delivered
445 mm
Design doors
Glazed door, one-piece
With 3 mm single-pane safety glass
Rear door design
Sheet steel door, one-piece
Front door design
Glazed door, one-piece
Load capacity (static)
500 kg

Protection category to IEC 60 529
IP 20
Basic material
Sheet steel
Packs of
1 pc(s).

Customs tariff number
94032080
EAN
4028177994720
ETIM 8
EC002499
ETIM 7.0
EC002499
ECLASS 8.0
27180207

Product description

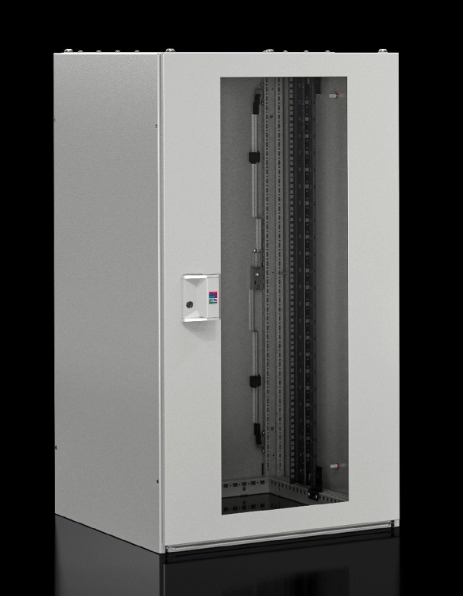

TX CableNet, with glazed door, with roof plate, side panels, 19" mounting angles, WxHxD: 600x1200x800 mm, RAL 7035
