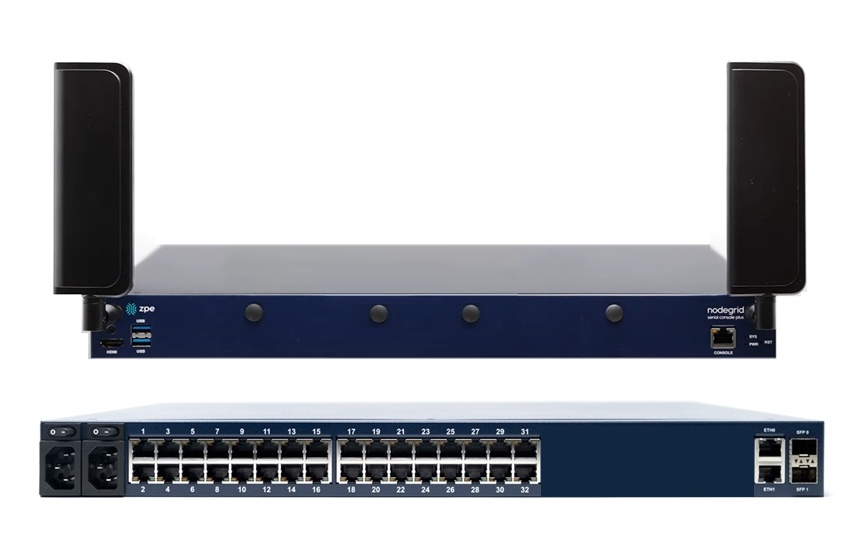

NSCP-T32R-STND-DAC-4G - ZPE - Nodegrid Serial Console, NSC Plus 32-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console. CAT 12 / 4G LTE (4G)
Nodegrid Serial Console Plus (NSCP) 32 port / Dual Power / 4G
Description:
ZPE Nodegrid Serial Console Plus. 32-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console. 4G LTE (CAT 12). The Nodegrid Serial Console Plus (NSCP) helps scale your datacenter and critical remote infrastructure, without management obstacles or downtime. Connect 16-96 serial devices and quickly scale to millions of nodes. Dual SFP+ and dual Ethernet ports keep data free from slowdowns, while the multi-core Intel CPU delivers blazing responsiveness. Built-in 5G/4G LTE and Wi-Fi options give you reliable cellular failover and secure out-of-band access, so you can keep it all online all the time. Scale critical infrastructure with speed and reliability built-in.
Features:
Strong Out-of-Band Management integration
Extensible applications with virtualization and containers
Zero Touch Provisioning (ZTP) over the LAN and WAN for fast and easy setup in remote locations
Integrates with ZPE Cloud and Nodegrid Manager vendor-neutral, unified management solution
Modern x86-64bit Linux Kernel for fast security patching and widespread software availability
Extended Automation based on actionable data
Failover to 5G/4G LTE and Wi-Fi
Gateway and multi-routing table capability
SSL VPN and Secure Tunnel
DHCP server extra IPs for your remote site or replace your current router altogether
Firewall built in and turns on with a checkbox
Secure selectable encrypted cryptographic protocols and cypher suite levels, configuration checksum
Power control and monitoring get alerts on IT device health and solve problems automatically
Orchestration Puppet, Chef, Ansible, RESTful
BENEFITS :
Reduce CAPEX & OPEX expenses with extensible solutions and automated management
Reduce downtime and trips to the data center with instant access
Minimizes MTTR, downtime & expenses with secure, centralized remote access & control
Increases site reliability with open industry-standard hardware, and easy-to-use software
Application Diagram - Nodegrid Serial Console (Plus)
Specification:
NSCP-T32R-STND-DAC-4G
32 Port
RS-232 serial
Dual SFP+
Dual Ethernet port
Dual AC Power
Cisco pin-out
5G/4G LTE cellular module
Wi-Fi module (optional)
________________________________
Connectivity
Dual SFP+ Ethernet ports & Gigabit Ethernet ports
Dual SIM LTE, Console Port, Wi-Fi
2X SFP+ Ethernet ports 2X Gigabit Ethernet ports
Multiple Routing Tables Failover to 5G/4G/LTE modem
Managed Power Devices
Vendor-neutral PDU support
Managed IPMI Devices
OpenBMC, HP iLO, Dell iDRAC, Supermicro/Quanta IPMI,
IPMI 2.0 compatible devices, Cisco CIMC/UCS, IBM IMM, Oracle ILOM,
EMC/NetApp Storage IPMI
Sensors
Support for a wide range of USB sensors
Networking
IPv4 / IPv6 Support
VLAN, Layer 3 Routing, BGP, OSFP, RIP, QoS, DHCP (Client & Server)
Port Access
Direct access by port name, TCP port, device name & IPv4/IPv6
High performance port login: <1 sec on SSH, <3 sec on Telnet
1000+ simultaneous sessions
Port sharing
Command Line Interface (CLI)
Port custom field support, port icon configuration, port search
Device clustering across multiple Nodegrid units
Break-over SSH support
System Management
Extensible, automated control based on actionable real-time data
Web GUI management portal, web console,
Command Line Interface (CLI), Linux root shell, SNMP, RESTful API
Zero Touch Provisioning (ZTP) via LAN/DHCP, WAN/ZPE Cloud,
USB for configuration & firmware updates
Multiple & customizable user levels of access
Auto-discovery via network scan & custom probes
SNMPv1,v2 & SNMPv3-v1 IPv4/IPv6 with MD5, SHA-224, SHA-256,
SHA-384, SHA-512, DES, AES-192, AES-256
Orchestration Integration & Automation: Puppet, Chef, Ansible,
RESTful, ZPE Cloud & Nodegrid Clustering Feature
File sharing via FTP, NFS, SSHFS, Windows Sharing,
web file browser, ZPE Cloud
Remote Procedure Call (RPC, gRPC)
NetFlow, LLDP
Access Protocols
HTTPS, SSHv2; (Optional) HTTP, Telnet & SSHv1
Device View Options
Tree, Table, Geo Map, Node, & WEB Interface with search
Data Logging & Notifications
Local port buffering: 20 MB per port
Local, NFS, syslog, off-line data logging
Time stamp & rotation for data logging
Event destination: email, syslog, local, syslog, email, ZPE Cloud,
Splunk & more
Notification: syslog, email, ZPE Cloud, Splunk & more
Operating System
Built-in x86_64bit Nodegrid OS
Warranty
2-Year Limited Warranty
Security
Hardened device with BIOS protection, TPM 2.0, UEFI Secure Boot,
Signed OS, Self-Encrypted Disk (SED), Geofencing
X.509 SSH certificate support, 4096-bit encryption keys
Selectable cryptographic protocols for SSH &
HTTPS (TLSv1.3,TLSv1.2, TLSv1.1, TLSv1)
Selectable cypher suite levels: high, medium, low, custom
IPsec, WireGuard, OpenSSL VPN with support for multi sites
Local, AD/LDAP, RADIUS, TACACS+, Kerberos, authentication
SAML 2.0 support via Duo, Okta, Ping Identity, ADFS
Two-Factor Authentication with RSA & DUO
Local, backup-user authentication support
User-access lists per port
Group/Role-Based Authorization: AD/LDAP, RADIUS, TACACS+
Fine grain & role-based access control
Firewall: IP packet & security filtering, IP forwarding support
MD5 / SHA System Configuration Checksum
System event logging to file, syslog, email, ZPE Cloud, Splunk
& more
Custom security settings
Strong password enforcement
Power Specifications
40V-63 VDC dual power input (redundant)
Single or Dual AC: 100-240 VAC, 50/60 Hz
Power consumption 45 W typical
CPU & Storage (Upgrades Available)
Intel x86_64 Quad-cores
4GB of DDR4 DRAM
32GB FLASH (mSATA SSD)
Interfaces
16, 32, 48, 96 RS-232 serial ports on RJ45 @ 230,400 bps max/port
1X RS-232 serial console port on RJ45
2X USB 3.0 Host on Type A connector
2X SFP+ 1/2.5/10GB & 2 Gigabit (10/100/1000BT)
Ethernet interfaces on RJ45
1X HDMI output port 1X 5G/4G/LTE Radio
1X Wi-Fi (Optional) 2X Dual SIM (Optional)
Physical
Front-Rear Mounting Brackets
Size (L X W X H): 443 X 312 X 43 mm (17.4 X 12.3 X 1.7 in), 1U
Weight: 5.265 kg (11.6 lb), depending on options
Shipping Weight: 8.745 kg (19.3 lb)
Shipping (L X W X H): 533 X 497 X 209 mm (21 X 19.6 X 8.3 in)
Environmental
Operation: 0 to 60° C (32ΊF to 140° F), 5-95% RH, non-cond.
Storage: -20 to 67° C (-4ΊF to 153° F), 5-95% RH, non-cond.
