NSCP-T48R-STND-DDC - ZPE - Nodegrid Serial Console, NSC Plus 48-port Cisco Rolled, Dual DC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console

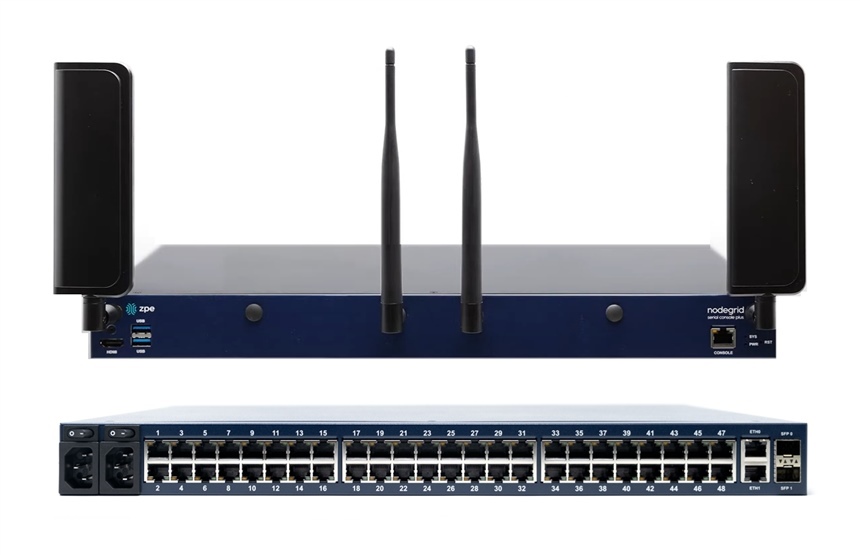

Nodegrid Serial Console Plus - NSCP-T48R-STND-DCC (48 port model) - Dual DC Power
Description:
The Nodegrid Serial Console Plus (NSCP) helps scale your datacenter and critical remote infrastructure, without management obstacles or downtime. Connect 16, 32, 48 or 96 (Patent No. 9,905,980) serial devices and quickly scale to millions of nodes. Dual SFP+ and dual Ethernet ports keep data free from slowdowns, while the multi-core Intel CPU delivers blazing responsiveness. Built-in 5G/4G LTE and Wi-Fi options give you reliable cellular failover and secure out-of-band access, so you can keep it all online all the time. Scale critical infrastructure with speed and reliability built-in.
Features:
Strong Out-of-Band Management integration
Extensible applications with virtualization and containers
Zero Touch Provisioning (ZTP) over the LAN and WAN for fast and easy setup in remote locations
Integrates with ZPE Cloud and Nodegrid Manager vendor-neutral, unified management solution
Modern x86-64bit Linux Kernel for fast security patching and widespread software availability
Extended Automation based on actionable data
Failover to 5G/4G LTE and Wi-Fi
Gateway and multi-routing table capability
SSL VPN and Secure Tunnel
DHCP server extra IPs for your remote site or replace your current router altogether
Firewall built in and turns on with a checkbox
Secure selectable encrypted cryptographic protocols and cypher suite levels, configuration checksum
Power control and monitoring get alerts on IT device health and solve problems automatically
Orchestration Puppet, Chef, Ansible, RESTful
BENEFITS :
Reduce CAPEX & OPEX expenses with extensible solutions and automated management
Reduce downtime and trips to the data center with instant access
Minimizes MTTR, downtime & expenses with secure, centralized remote access & control
Increases site reliability with open industry-standard hardware, and easy-to-use software
Application Diagram - Nodegrid Serial Console (Plus)
Specification:
Nodegrid Serial Console gives you high-density connectivity in a 1U box. You can scale fast and manage diverse infrastructures through a single point of control, whether at the datacenter or colocation hub. NSCP also gives you built-in reliability via 5G/4G LTE and Wi-Fi capabilities, so you dont have to shop around for additional failover or out-of-band solutions.
16/32/48/96 RS-232 serial ports
Dual SFP+ and dual Ethernet ports
Cisco pin-out (no rolled cables required)
5G/4G LTE cellular module (optional)
Wi-Fi module (optional)
Additional USB ports
Single AC, dual AC and dual
Contact us for full Specification.
