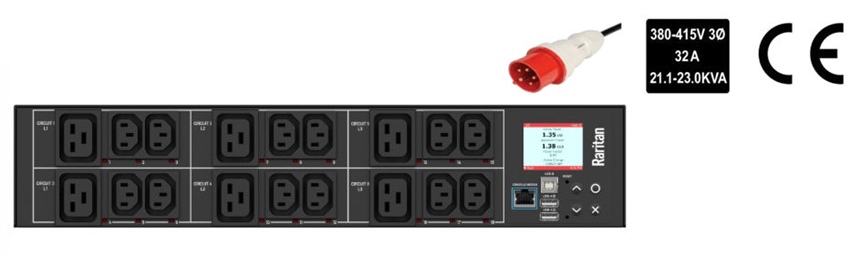

PX3-4906R Raritan Raritan Outlet Metered iPDU (3-Phase) 400V, 3-Phase Wye (L-N), 22.2kVA, 32A Horizontal 2U PDU Outlet Monitoring
PX3-4906R
Description:
The Raritan PX3 -PX5000 family of high-quality, intelligent rack power distribution units (iPDUs) offers real-time remote power monitoring of current (amps), voltage, power (kVA, kW) and energy consumption (kWh) with +/- 1% billing-grade accuracy, even at individual outlets. The PX series offers hundreds of models to meet all your data center applications, including models with remote outlet switching, individual outlet metering, high-power for blade servers and high-density applications, and high quality power distribution. The Dominion PX-5000 Range is an intelligent Power Distribution Unit (PDU) that allows users to reboot remote servers and network devices and monitor power. It can be used as a standalone power distribution unit, or integrated with Raritan’s KVM switches and Secure Console Servers. It can also be intergrated with Raritan's Power IQ PDU and Environmental power management software. A flexible, next-generation power management solution Raritan's Dominion PX remote power management devices allow IT administrators to securely reboot and power on/off servers and network devices from a remote location
Features:
Energy Metering - Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy - ISO/IEC 62053-21 1%
Remote Outlet Switching - No
Metering per input line - Yes
Metering per Branch Circuit Breaker - No
Environmental Sensor Ready - Yes
Compatible Sensors:
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
PDU Linking - Link up to 8 PDUs where the Primary PDU has knowledge and power information from the attached Expansion PDUs. Redundant power from the first expansion unit ensures uptime even if the Primary PDU loses power.
Cascading - Physically cascade 32 PDUs under one ethernet port or 16 PDUs with USB using bridging mode, or additionally, save IP addresses using a single IP address with port forwarding.
Networking - (10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Onboard Display - Colour, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation
Specification:
Input
Input Plug - 230/400V Wye 32A IEC 60309 3P+N+PE 6Hr
Nominal Voltage - 400V
Maximum Input Current - 32A
Rated Input Current - 32A
Power Capacity - 22.2kVA
Cord Length - 10ft/3m
Output
Nominal Voltage - 240V
Receptacles (Output Connections) - (12) C13, (6) C19
Overload Protection - 2
Physical
Dimensions (WxDxH) - 440mm x 293mm x 88mm
Unit Weight - 17 lbs
Shipping Weight - 26.02 lbs
Shipping Dimensions (HxDxW) - 560 x 552 x 284 mm
Mounting - RACK-KIT-PX-2U
Environmental
Operating Temperature/Environment - 60 C
Operating Relative Humidity - 85%
Operating Elevation - 0-6000ft
Conformance
Regulatory Approvals
CE
Warranty - Standard 2 years manufacturer warranty
Monitored rack power distribution unit (2U [horizontal], 22.2kVA, 18 outlets). INPUT: 400v (3-phase WYE), 32a - IEC 60309 3P+N+E 6h 32A plug (4P5W); OUTPUT: 12@ C13, 6@ C19 outlets; on 6@ 1-pole, 16a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse, per outlet; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Tri-color status LED per receptacle. Breaker metering and alarming (0V detection). Max Dimensions 440mm x 293mm x 88mm (17.3in x 11.5in x 3.5in). Max Weight 9.9 kg. Maximum ambient temperature 60C at full load.
Vendor: Raritan; Part Number: PX3-4906R
