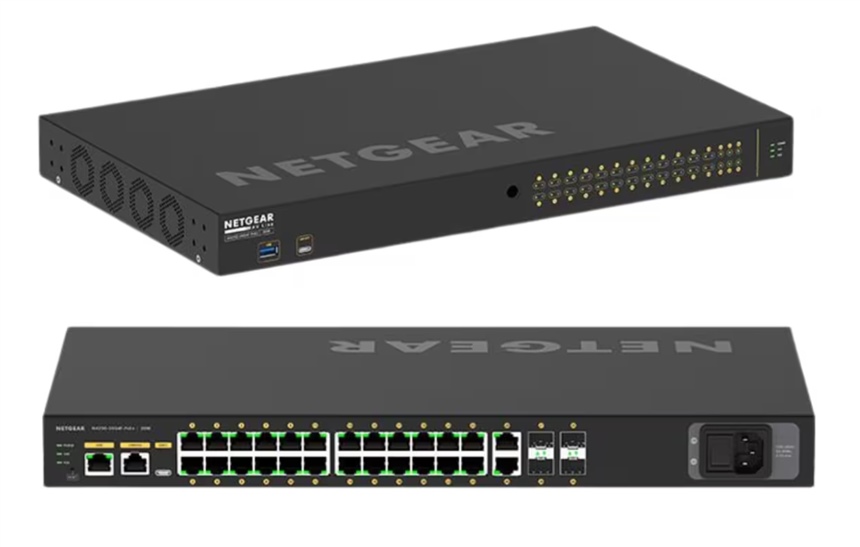

AVM-C30 NETGEAR GSM4230P 30-port network switch for use with ADDERView Matrix product line EURO/UK power cables
FOR (ADDERView MATRIX C1000 SYSTEM)

Description:

ADDERView® Matrix switches Matrix switches for the ADDERView Matrix C-Range Adder offers NETGEAR M4250 switch models for the ADDERView Matrix solution. Ideal for streamlined KVM solutions, these switches are preconfigured to support IGMP v2, snooping and Jumbo frame rate up to 9216 bytes, out-of-the-box. Available with 12 or 30 ports and with a mixture of CATX and SFP ports. Other switches can be used but must adhere to minimum specification. THIS PRODUCT IS PRE CONFIGURED BY ADDER TECHNOLOGY AND NON - RETURNABLE- ADDER TERMS Standard warranty only

Features:

AVM-C30 NETGEAR GSM4230P 30-port network switch for use with ADDERView Matrix product line EURO/UK power cables
FOR ADDERVIEW MATRIX SYSTEM C1100


Link Ports
8p8c (RJ45) 26×
SFP 4×

General all parts system setup example (ADDERView MATRIX C1000 SYSTEM)

Specification:

AVM Switch (AVM-C30 Switch) Specification

Link Ports
8p8c (RJ45) 26×
SFP 4×

Network Support
Bandwidth 1GbE
10/100 Support Yes

Power Source
Input Power Supply Internal Power Supply Unit (see manual)
Output Power Supply PoE (802.3.AF)
Power Additional Information 24 ports support 802.3.AF Total PoE budget of 300W

ower Consumption
Maximum Power (Watts) 401
Typical Power (Watts) 36

Physical Design
Construction Material Robust metal construction
U size 1
Width 440mm / 17.3in
Height 43.2mm / 1.7in
Depth 257mm / 10.10in
Weight 4.3kg / 9.5lb

What's in the Box?
1× AVM-C30 Matrix switch (NETGEAR GSM4230P)
1× Country specific IEC mains cab
1× Rack-mounting standard brackets
1× Longer brackets for recessed mounting
1× Rubber footpads for tabletop installation
1× Quick start guide
