HP12C13/6C19-32A-ZSi/CR_EN/2B-1
Austin Hughes Z & M PDU with Onboard IP, 3Ph Z&M SERIES 2U Horizontal PDU 32A, with IP Socket Switch level Ports 12C13/6C19 BTO

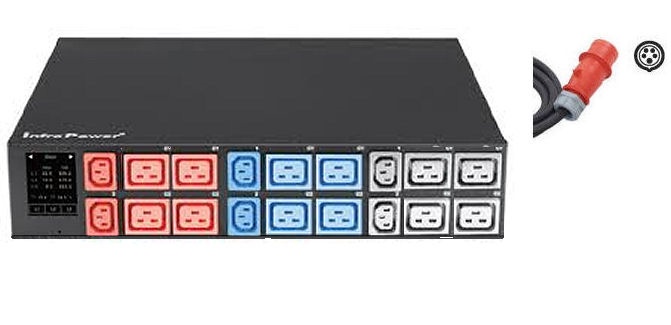

AH-Z-HM IPDU General Horizontal Range Picture only. BTO versions can have different configurations
Description:
3-phase power distribution units with a new design intelligent meter and lockable / combo IEC outlets. InfraPowerŪ Z & M intelligent PDU series are supplied with new generation meters. The Z IP Meter not only provides local metering, but also embedded dual Gigabit ethernet LAN IP. Up to 32 levels of Z IP / M Serial iPDUs in daisy chain can be remotely accessed via one single network IP. The 2.8″ colour LCD with touchscreen provides a sharp and highly visible display of kWh, kW, Power Factor, Volt, Amp, Temperature and Humidity. The meter is hot swappable and field replaceable without needing to power down the PDU or attached mission critical equipment.
Features:
- High Availability - InfraPowerŪ Z & M intelligent PDU series are supplied with new generation meters.

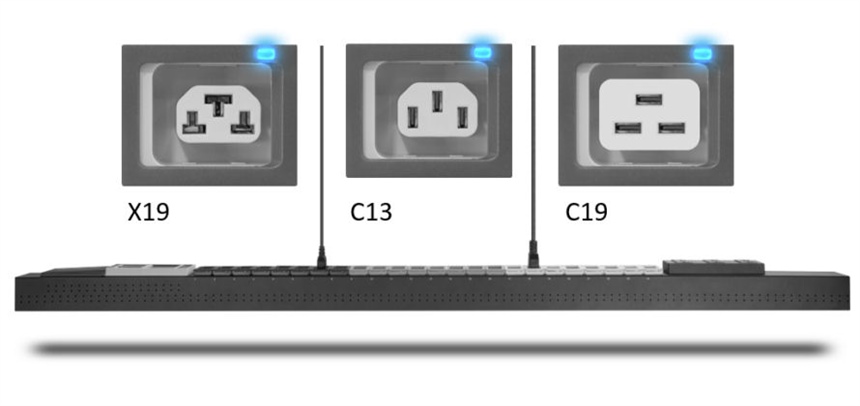

Special ports config Ports: 12xC13/6xC19
- Connection Secure Auto Lock
- Connnection Combo IEC
- Rack mount 2U Chassis Design
- Linking- Cost Saving Efficiency
- Metering - Precise Intelligence,
- Quality PDU Fast leadtime
- Configuration - Diversified and Customizable
Units also available customisable to different ports configurations including Combo socket ports
Specification:
HP1213/6C19-32A-ZSi/CR_EN/2B-1 Austin Hughes Onboard IP, 3Ph PDU 32A, with IP Socket Switch level 12C13/6C19
