SDSC-3000 Smart-e HDMI 2.0 4K@60Hz UTP KVM Extender 4:4:4, 18G, HDR10, Dolby Vision 100Mtr ( Transmitter & Receiver kit ) BTO Special order

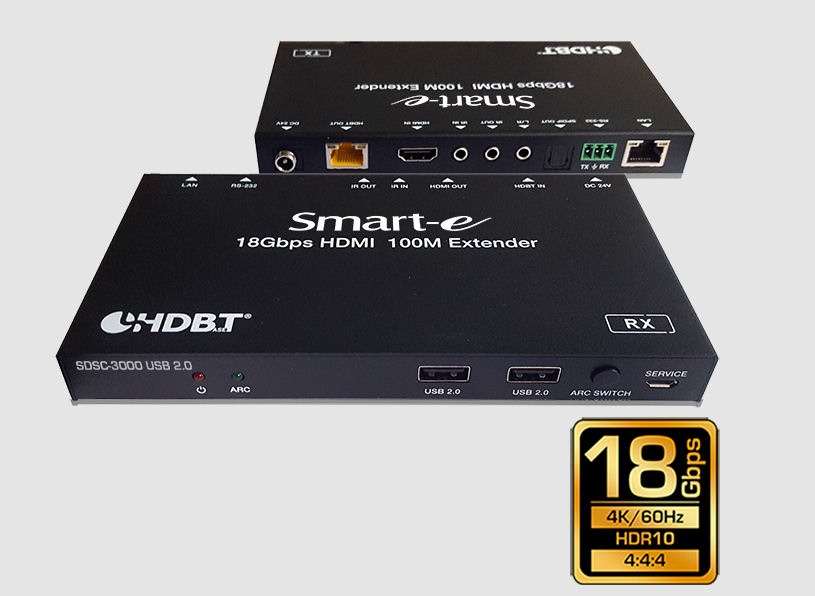

SDSC-3000 KVM Extender
Description:
The SDSC-3000 is a flexible and cost effective KVM extender for HDMI, USB 2.0, bi-directional IR, full duplex RS232 and LAN together with Power Over Cable (POC). Consisting of a transmitter/ receiver pair, both units are compact and come with mounting brackets. By incorporating the full HDBaseT2 technology 4K UHD HDMI signals can be transmitted up to 100m The KVM extender pair is capable of distributing HDMI, HDR10 signals up to 4K UHD resolutions @4:4:4 colour sub-sampling to 100m of Cat 5e-6 cable. By implementing the complete 5-Play of the HDBaseT2 specification the extender pairs also provides the pass through of wide band bi directional InfraRed signals, fu l duplex RS232 up to 115Kbaud and a separate LAN port for Ethernet 100BaseT connectivity. USB 2.0 extension is achieved by harnessing the HDBaseT2 protocol. An internal USB hub in the SDSC-RX3000 receiver alows connections of 2 peripherals, ideal for keyboard and mouse applications or any USB 2.0 devices like video camera or touch screens. An Audio Return Channel (ARC) is available through the extender. This feature provides an audio path back from the receiver to the transmitter within the same Cat 6 cable. This audio signal can be normal stereo or surround sound thereby giving a huge improvement in sound quality rather than use the internal monitor speakers. Each unit is powered via a single 24V PSU which can also power the other remote device through the same cable. The compact size of the housings enables ease of installation together with removable mounting brackets.
Features:
SDSC-3000
100m CAT 6/6A STP/FTP
Ethernet extension for 100BaseT
Full duplex RS232 pass through
Bi-directional IR pass through
CEC compliant
HDBaseT 2 USB 2.0 technology
HDMI 2.0 4K@60Hz
4:4:4, 18G, HDR10, Dolby Vision
HDCP 2.2/1.4 compliant

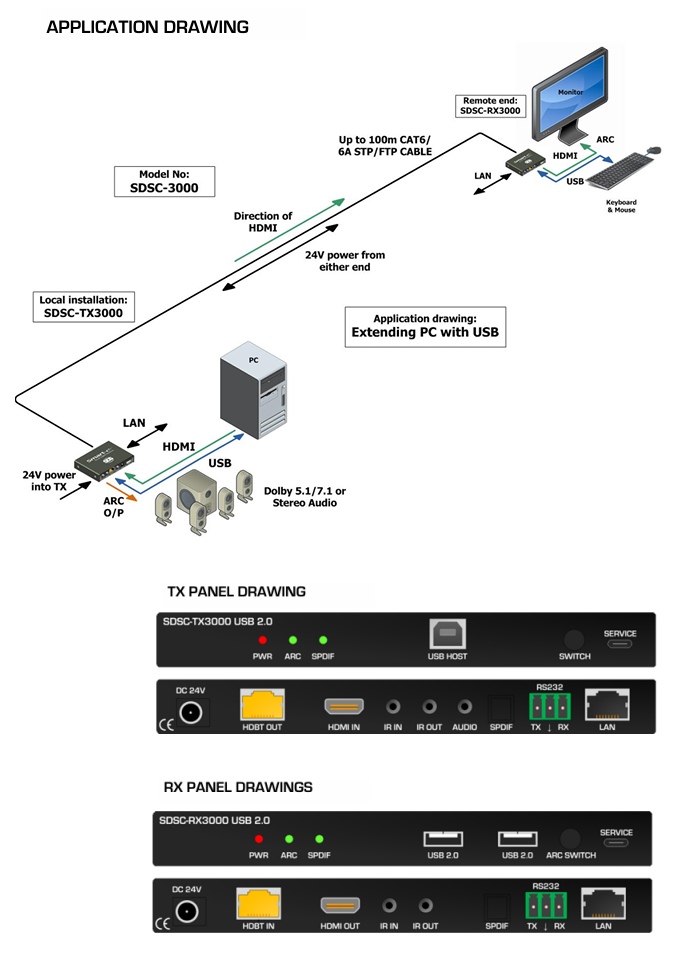

SDSC-3000 KVM Extender setup
Specification:
Video – Digital
Connectors HDMI (Type A) input/output
Signal type HDMI - TMDS
Standards HDMI 2.0. HDCP 2.2/1.4
Maximum data rate 4.5Gbps per colour
Maximum pixel clock 340MHz
Resolution range- DTV Max 4096x2160 @60Hz 36 bit colour depth
Resolution range- PC Max 1920x1200 @60Hz 24 bit colour depth
Frame rate 24, 25, 30, 50 & 60 Hz
Gain 0 dB
Formats RGB and YCrCb
Colour space 4:4:4, 4:2:2 & 4:2:0
Clock jitter <0.15T bit
Rise time <0.3T bit (20-80%)
Fall time <0.3T bit (20-80%)
Maximum transmission delay 5ns (+/- 1ns)
Signal strength TMDS +/- 0.4V pk-pk
TMDS signal level 2.9V – 3.3V
Impedance 50R
Maximum DC offset 15mV
Maximum input cable length 15m 24 AWG
Maximum output cable length 15m 24 AWG
Audio – Digital
Standards Embedded within the HDMI signal, SPDIF
Maximum audio channels 8
Maximum sample rate per channel 192 kHz
Sample size 16-24 bits
ARC Audio output (TX) Analogue stereo & TOSLINK
Analogue audio connector 3.5mm mini-jack socket
Digital connector Optical
Power
DC Voltage External 24V PSU
DC connector 2.1mm jack with screw fitting
AC Voltage (External Supply) 100-230 VAC
AC frequency (External Supply) 50/60 Hz
Power consumption 14W (max)/1.2W (standby)
Operating temperature 0-40 degrees C
Storage temperature-20-60 degrees C
Relative humidity 20-90%
Dimensions (each unit) 165x88x18mm
Dimensions with brackets (each unit) 190x88x18mm
Product weight 0.5Kg
MTBF 30,000 hours
Passthrough – USB
Connectors
Signal type
Standards
Maximum data rate
Passthrough – RS232
Connector
Signal type
Signal level
Baud rate
Data bits
Stop bits
Parity
Pinout
USB (Type A) input/(Type A) output
USB
USB 2.0.
480 Mbit/s
3pin Phoenix
Ful duplex
+/- 5V
115200
8
1
None
1-TX, 2-0V, 3-RX
