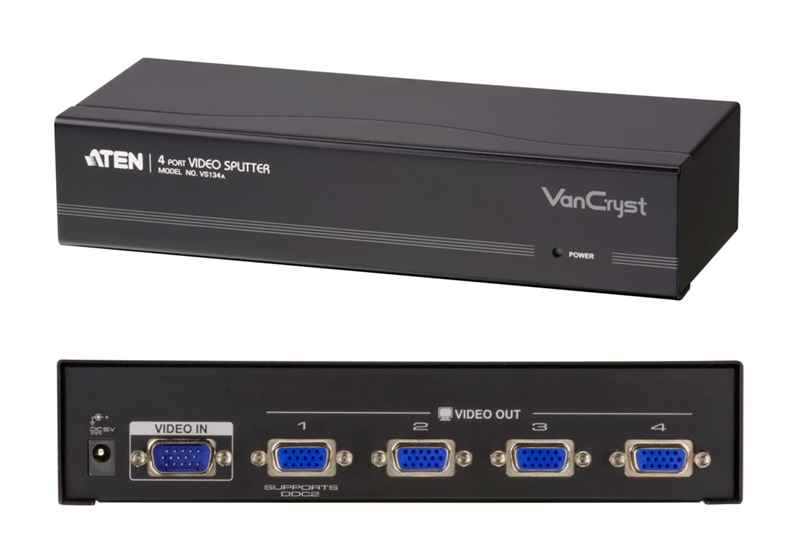

VS134A 4port Video Splitter - Supports up to 450MHZ bandwidth

Description:

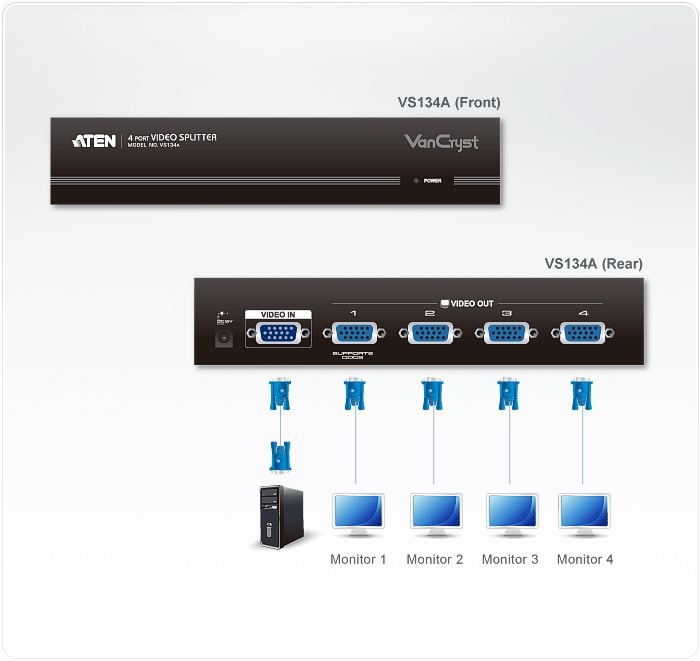

The VS134A Video Splitter is a boosting device that duplicates a video signal from one source to 4 output devices. Cascadable to three levels, the VS134A provides up to 64 video signals, in addition to extending transmission distance up to 30 m, making it excellent for public broadcast systems. To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync video signals over long distance without hassle, the VS134A is your best choice. Applications include: • Financial - the remote display of stock market information • Education - the remote display of lectures and lessons to halls and classrooms • Business - the remote display of addresses to overflow rooms; video conferencing; and demos

Features:

One video input to 4 video outputs
Supports up to 450 MHz bandwidth
Cascadable to 3 levels - provides up to 64 video signals
Long distance transmission - up to 30m *
Superior video quality - up to 2048 x 1536
Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync monitors
Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity
All-metal casing

* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.

Specification:

Video Input
Interfaces 1 x HDB-15 Male (Blue)
Impedance 75 Ω
Max. Distance 1.8 m

Video Output
Interfaces 4 x HDB-15 Female (Blue)
Impedance 75 Ω

Video
Max. Bandwidth 450 MHz
Max. Resolution Up to 2048 x 1536
Max. Distance Up to 30 m
Connectors
Power 1 x DC Jack

Power Consumption DC5V:0.9W:4BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental
Operating Temperature 0-50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing

Physical Properties
Housing Metal
Weight 0.61 kg ( 1.34 lb )
Dimensions (L x W x H) 20.00 x 7.51 x 4.40 cm
(7.87 x 2.96 x 1.73 in.)
